1983 Suzuki GS750S CAM Chain Diagram

← All diagrams

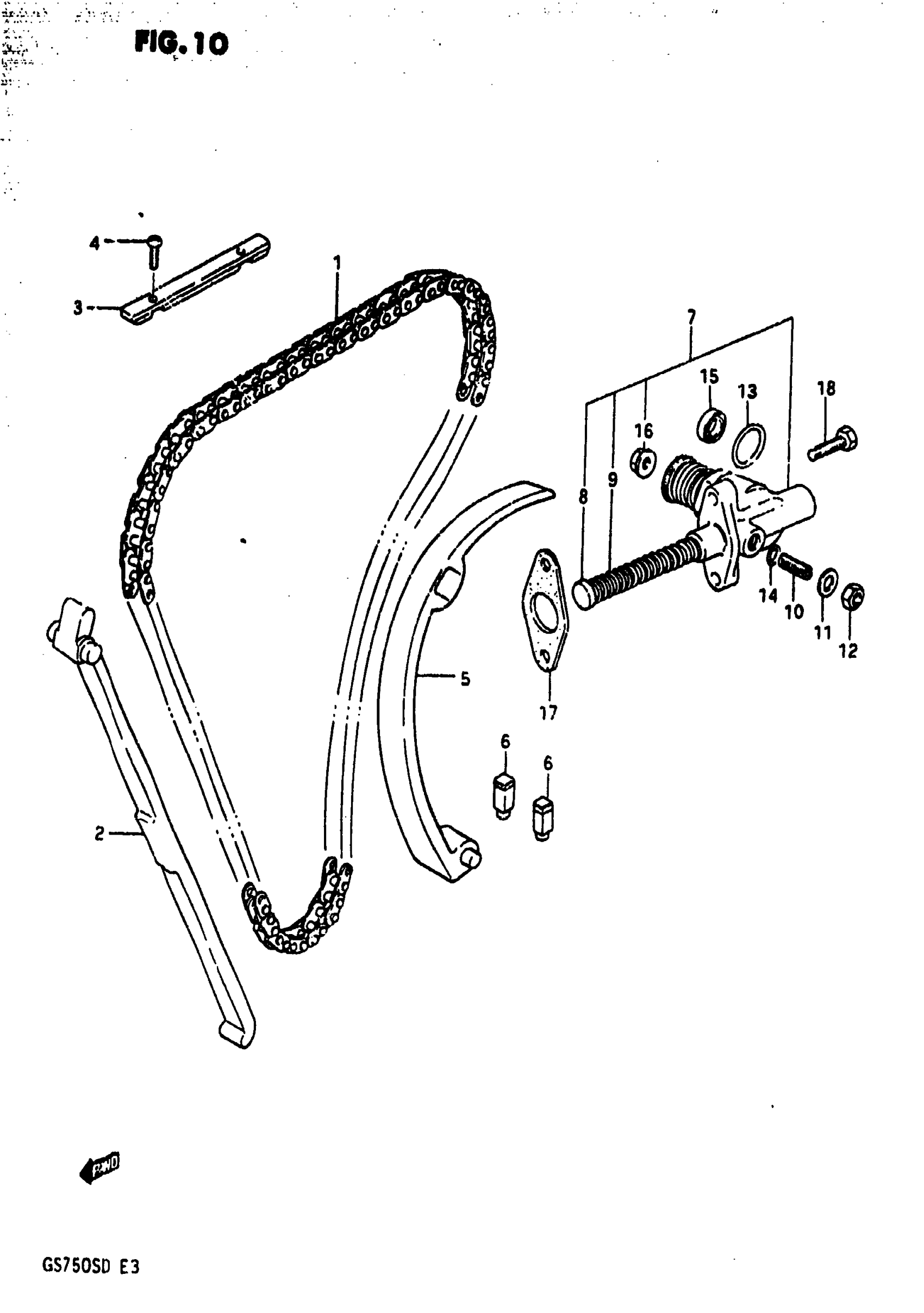

Find the part on the CAM Chain diagram for your 1983 Suzuki GS750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750S CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT This part replaces 12760-45440.

12760-40C01

1
Out of stock

2

GUIDE, CAM CHAIN

12771-45451

1
Out of stock

3

GUIDE, CAM CHAIN

12782-47040

1
Out of stock

4

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

5

TENSIONER, CAM CHAIN

12810-44150

1
Out of stock

6

CUSHION

12814-44101

2
Out of stock

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 16 This part replaces 12830-47011.

12830-0930V

1
Out of stock

8

PUSH ROD

12833-47001

1
Out of stock

9

SPRING

09440-12017

1
Out of stock

10

SCREW This part replaces 12838-45010.

12838-45001

1
Out of stock

11

WASHER This part replaces 08322-11085.

08322-0108A

1
Out of stock

12

NUT This part replaces 08310-11085.

08310-0008A

1
Out of stock

13

O RING This part replaces 09280-21001.

09280-21013

1
Out of stock

14

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

1
Out of stock

15

OIL SEAL This part replaces 09284-10003.

09284-10006

1
Out of stock

16

NUT This part replaces 08316-16065.

08316-1006B

1
Out of stock

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

1
Out of stock

18

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

2
Out of stock
