1979 Suzuki GS750L Crankshaft Diagram

← All diagrams

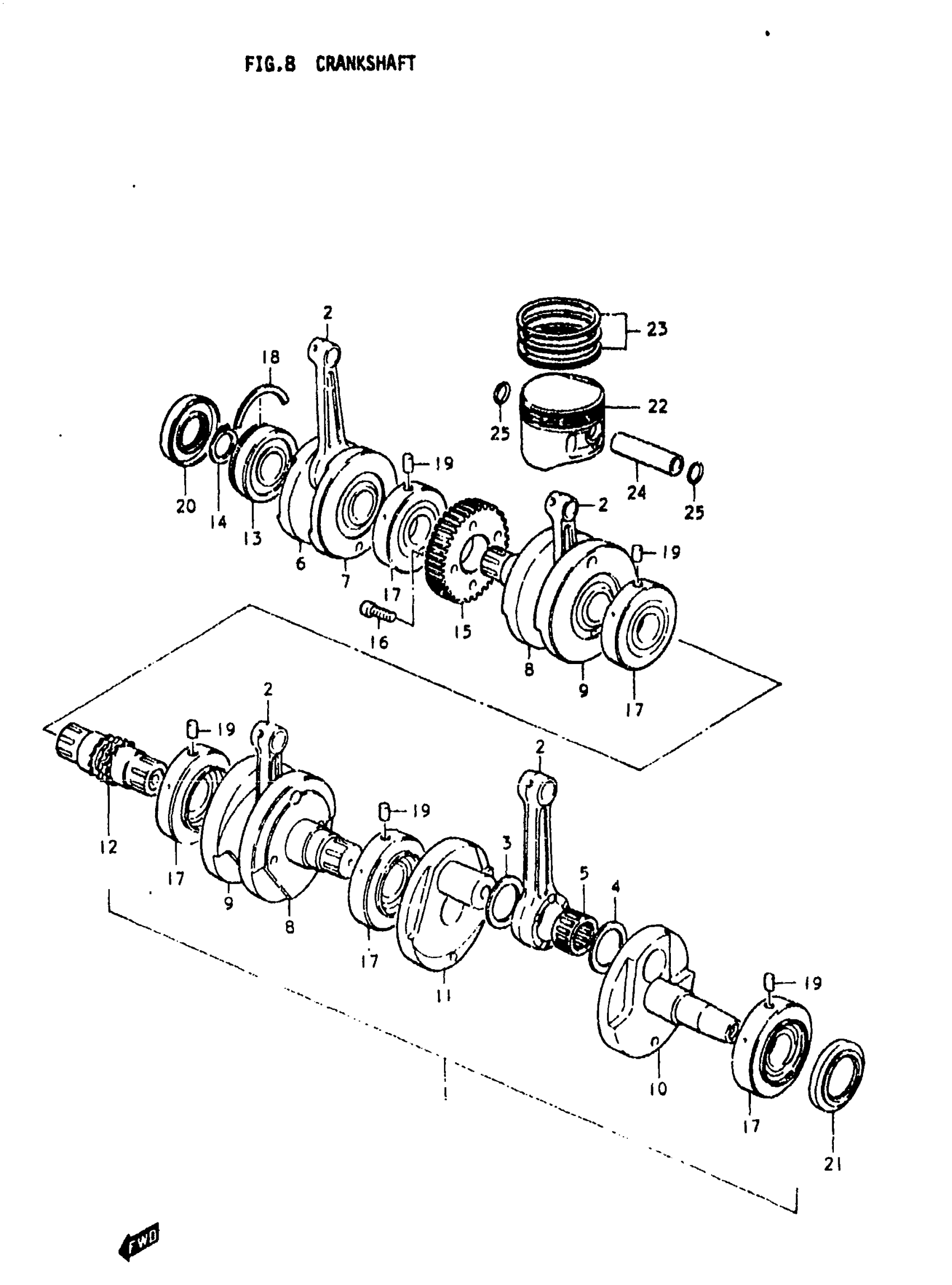

Find the part on the Crankshaft diagram for your 1979 Suzuki GS750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS750L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 17

12200-45002

1
Out of stock

2

ROD, CONNECTING

12161-45000

4
Out of stock

3

WASHER | 28x48x2

09160-28009

4
Out of stock

4

WASHER | 28x48x1

09160-28010

4
Out of stock

5

BEARING

09263-28010

4
Out of stock

6

CRANKSHAFT, RH

12220-45001

1
Out of stock

7

WEB, CRANKSHAFT RH

12230-45000

1
Out of stock

8

CRANKSHAFT, MIDDLE

12241-45001

2
Out of stock

9

WEB, CRANKSHAFT MIDDLE

12250-45000

2
Out of stock

10

CRANKSHAFT, LH

12261-45000

1
Out of stock

11

WEB, CRANKSHAFT LH

12230-45000

1
Out of stock

12

SHAFT, TIMING CHAIN DRIVE | NT:15

12281-45000

1
Out of stock

13

BEARING, RH

09262-30033

1
Out of stock

14

CIRCLIP This part replaces 08331-11308.

08331-31309

1
Out of stock

15

GEAR, PRIMARY DRIVE | NT:46

21111-45001

1
Out of stock

16

2

$3.13

In stock

17

BEARING

09264-32001

5
Out of stock

18

C RING, BREARING RH

09390-72004

1
Out of stock

19

PIN

04221-07129

5
Out of stock

20

OIL SEAL, RH

09283-30021

1
Out of stock

21

OIL SEAL, STARTER CLUTCH GEAR | 48x60x8 This part replaces 09289-48001.

09289-48002

1
Out of stock

22

PISTON (STD)

12111-45002

4
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 12111-45002-050.

12103-45820-050

4
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 12111-45002-100.

12103-45820-100

4
Out of stock

23

PISTON RING SET (STD)

12140-45013

4
Out of stock

23

PISTON RING SET (OS:0.5)

12140-45013-050

4
Out of stock

23

PISTON RING SET (OS:1.0)

12140-45013-100

4
Out of stock

24

PIN, PISTON

12151-29001

4
Out of stock

25

SNAP RING This part replaces 09381-16002.

09381-16001

8
Out of stock
