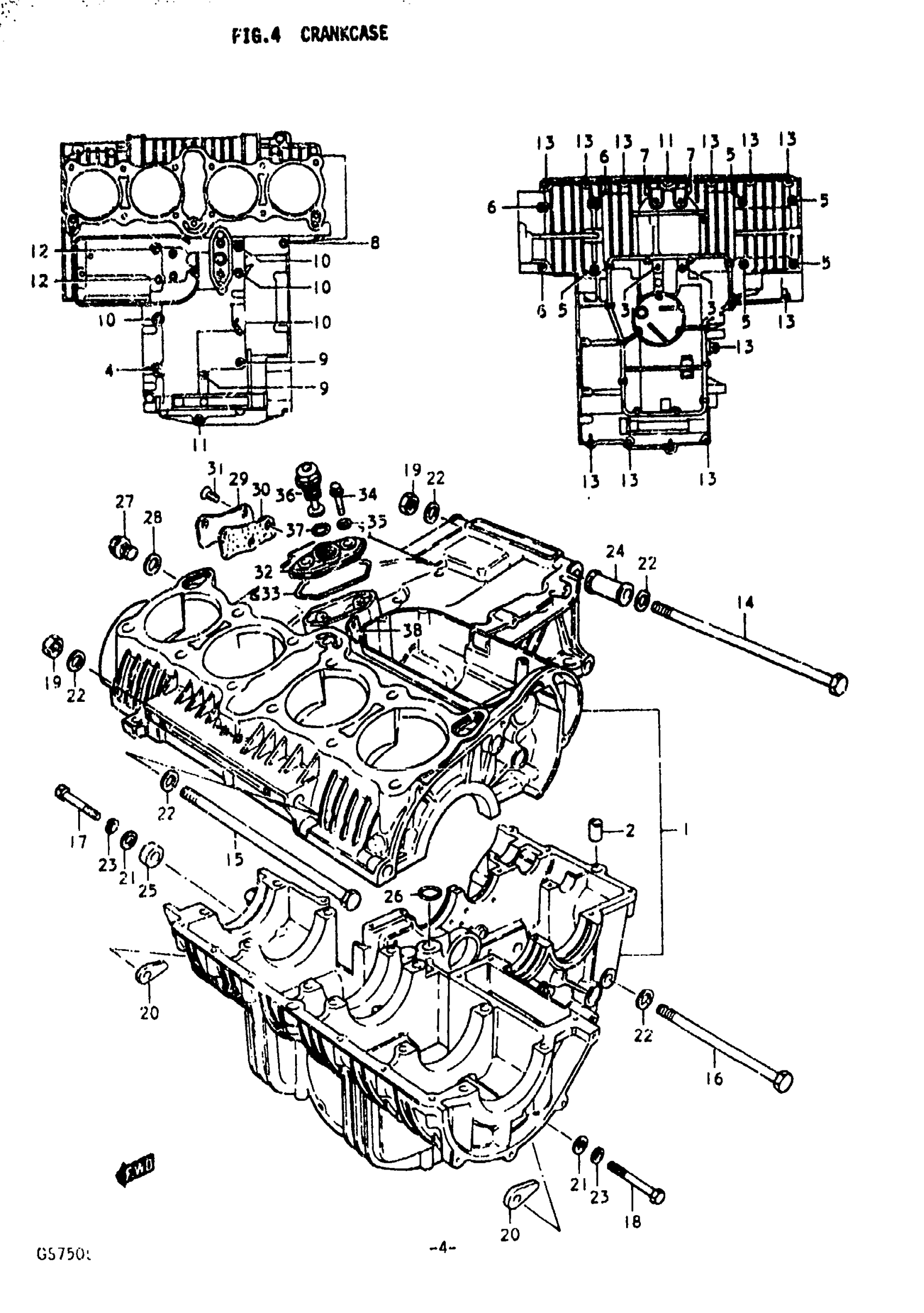

Suzuki GS750L (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13

11300-45810

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) | 8x125 This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT This part replaces 01517-08958.

01550-08957

$5.83

5

BOLT This part replaces 01517-08908.

01550-08907

$5.63

6

BOLT This part replaces 01517-08658.

01550-08657

$5.10

7

BOLT This part replaces 01517-08608.

01550-08607

$3.44

8

BOLT (6X100) | 6x100 This part replaces 09103-06020.

09103-06060

$2.61

9

BOLT This part replaces 01517-06908.

01550-06907

$5.00

10

BOLT This part replaces 01517-06808.

01550-06807

Unavailable

11

BOLT This part replaces 01517-06558.

01550-06557

$3.58

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

13

BOLT This part replaces 01517-06408.

01550-06407

$2.73

14

ENGINE MOUNT BO | 10x250 This part replaces 09101-10010.

09101-10010-XC0

Unavailable

15

BOLT, ENGINE MOUNTING | 10x235

09100-10108

Unavailable

16

BOLT, ENGINE MOUNTING | 10x165

09100-10078

$13.80

17

BOLT, 10X65 This part replaces 01107-10658.

01500-1065B

$6.38

18

BOLT This part replaces 01107-10558.

01500-1055A

$3.25

19

NUT

09159-10011

$2.95

20

NUT

09159-10020

$5.63

21

WASHER

09160-10005

$1.86

22

WASHER This part replaces 08322-11108.

08322-01107

$1.88

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

24

SPACER (L:50) This part replaces 11610-45000.

11610-44010

Unavailable

25

SPACER | 10.2x24x11

09180-10051

Unavailable

26

O RING, OIL GAILERY

09280-13001

$2.51

27

PLUG This part replaces 09247-14012.

09247-14026

$3.38

28

GASKET

09168-14004

$1.69

29

CAP, OIL GALLERY

11394-45000

Unavailable

30

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

31

SCREW This part replaces 02122-06168.

02122-06167

$1.45

32

HOUSING, OIL PRESSURE SWITCH

16445-45000

Unavailable

33

O RING

16448-45000

$8.37

34

BOLT This part replaces 01517-06258.

01550-06257

$2.31

35

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.01

36

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$35.73

37

O RING

09280-19001

$1.38

38

GROMMET, STARTING MOTOR

31271-45001

Unavailable
