1983 Suzuki GS750E Cylinder Head Diagram

← All diagrams

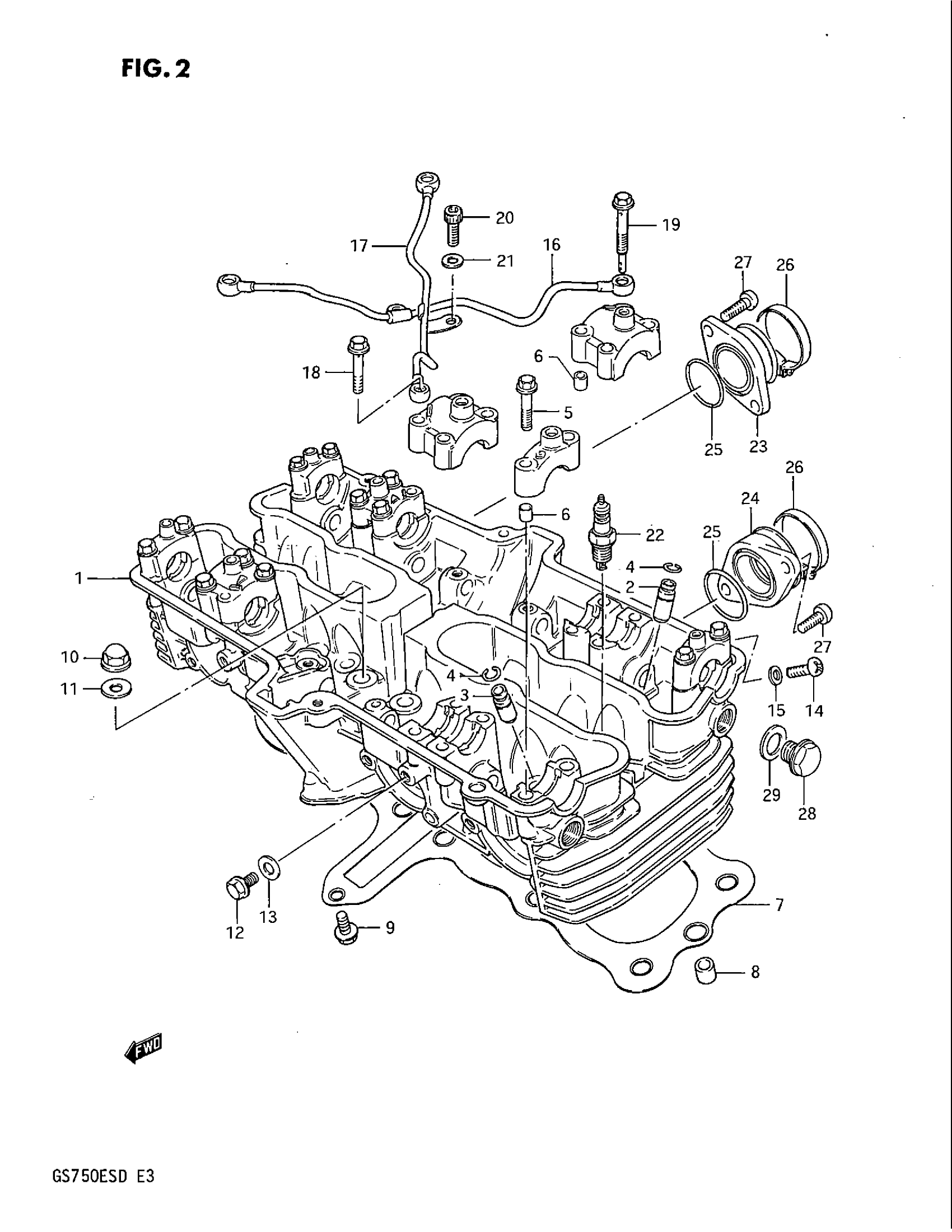

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6 This part replaces 11100-31306.

11100-31312

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-49290

8
Out of stock

3

GUIDE, EXHAUST VALVE

11115-49290

8
Out of stock

4

.RING (10X85)

09381-10004

16
Out of stock

5

BOLT (6X39)

09103-06026

20
Out of stock

6

PIN

09206-08001

16
Out of stock

7

GASKET This part replaces 11141-31301.

11141-31302

1
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01517-06255.

01550-0625A

1
Out of stock

10

NUT

09159-10026

12
Out of stock

11

GASKET

09168-10017

12
Out of stock

12

BOLT This part replaces 01517-06105.

01550-0610A

2
Out of stock

13

GASKET

09168-06018

2
Out of stock

14

SCREW This part replaces 02112-05085.

02112-0508A

4
Out of stock

15

GASKET

09168-05010

4
Out of stock

16

PIPE, OIL CYLINDER LOWER This part replaces 12961-31301.

12961-31302

1
Out of stock

17

PIPE, OIL CYLINDER UPPER This part replaces 12962-31301.

12962-31302

1
Out of stock

18

UNION BOLT, EX

09360-06014

2
Out of stock

19

UNION BOLT, IN

12965-31300

2
Out of stock

20

BOLT | ~E.NO.111736 This part replaces 09106-06025.

07130-06167

2
Out of stock

21

WASHER | ~E.NO.111736 This part replaces 08322-21068.

08322-01067

2
Out of stock

22

BOLT, EXHAUST COVER | E.NO.111737~ This part replaces 07122-06166.

07120-0616B

2
Out of stock

23

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

4
Out of stock

23

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

4
Out of stock

24

PIPE,INTAKE This part replaces 13110-31300.

13110-31310

2
Out of stock

25

PIPE,INTAKE,LH This part replaces 13120-31300.

13120-31310

2
Out of stock

26

O RING This part replaces 09280-38003.

09280-38004

4
Out of stock

27

CLAMP This part replaces 09402-50205.

09402-50208

4
Out of stock

28

8

$1.55

In stock

29

4

$3.63

In stock

30

GASKET | ***

09168-14004

4
Out of stock
