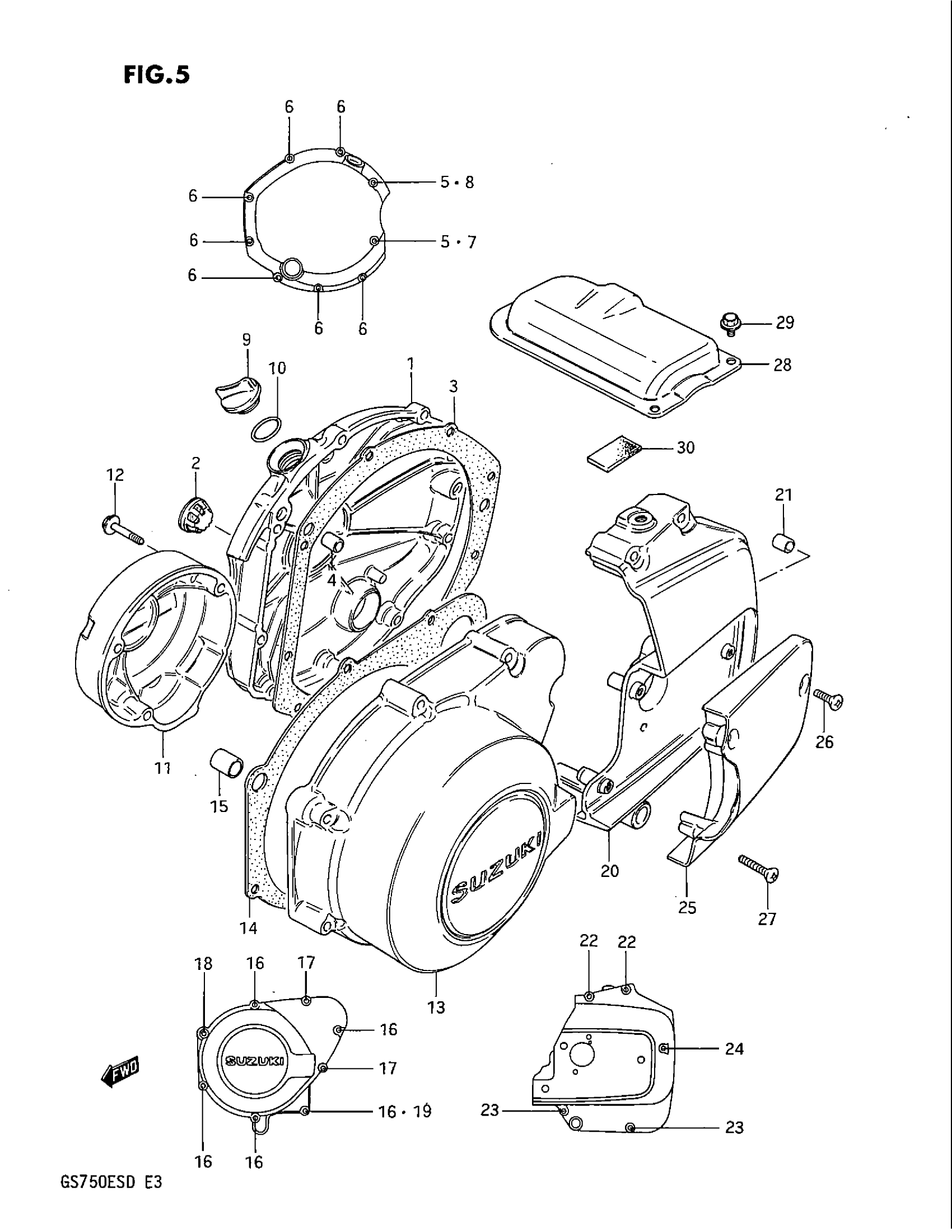

Suzuki GS750E (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-31301

Unavailable

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET,CLUTCH C This part replaces 11482-31301.

11482-31301-H17

Unavailable

4

PIN

09202-09004

Unavailable

5

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

6

BOLT This part replaces 01547-06258.

01547-06257

$2.01

7

BOLT This part replaces 01547-06308.

01547-06307

$2.06

8

BOLT This part replaces 01547-06358.

01547-06357

$2.01

9

PLUG, ENGINE OIL FILLER

09259-20007

$6.89

10

O RING

09280-17003

$1.64

11

COVER, CONTACT BREAKER

11381-31300

Unavailable

12

BOLT This part replaces 01547-05308.

01547-05307

$2.67

13

COVER, GENERATOR

11351-31300

Unavailable

14

GASKET,GENERATO This part replaces 11483-31301.

11483-31301-H17

Unavailable

15

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

16

BOLT This part replaces 01547-06358.

01547-06357

$2.01

17

BOLT This part replaces 01547-06408.

01547-06407

$2.34

18

BOLT This part replaces 01547-06458.

01547-06457

$2.31

19

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

20

COVER, ENGINE SPROCKET

11360-31301

Unavailable

21

PIN

04211-09129

$1.64

22

BOLT This part replaces 01547-06408.

01547-06407

$2.34

23

BOLT This part replaces 01547-06508.

01547-06507

$2.42

24

BOLT This part replaces 01547-06708.

01547-06707

$2.77

25

COVER, CLUTCH RELEASE

11380-31301

Unavailable

26

SCREW This part replaces 02132-05208.

02122-0520A

$2.47

27

SCREW This part replaces 02132-05308.

02132-05307

$1.63

28

COVER, STARTER MOTOR

11382-31300

Unavailable

29

BOLT, COVER This part replaces 01547-05085.

01547-0508B

$3.22

30

DAMPER

11362-34200

Unavailable
