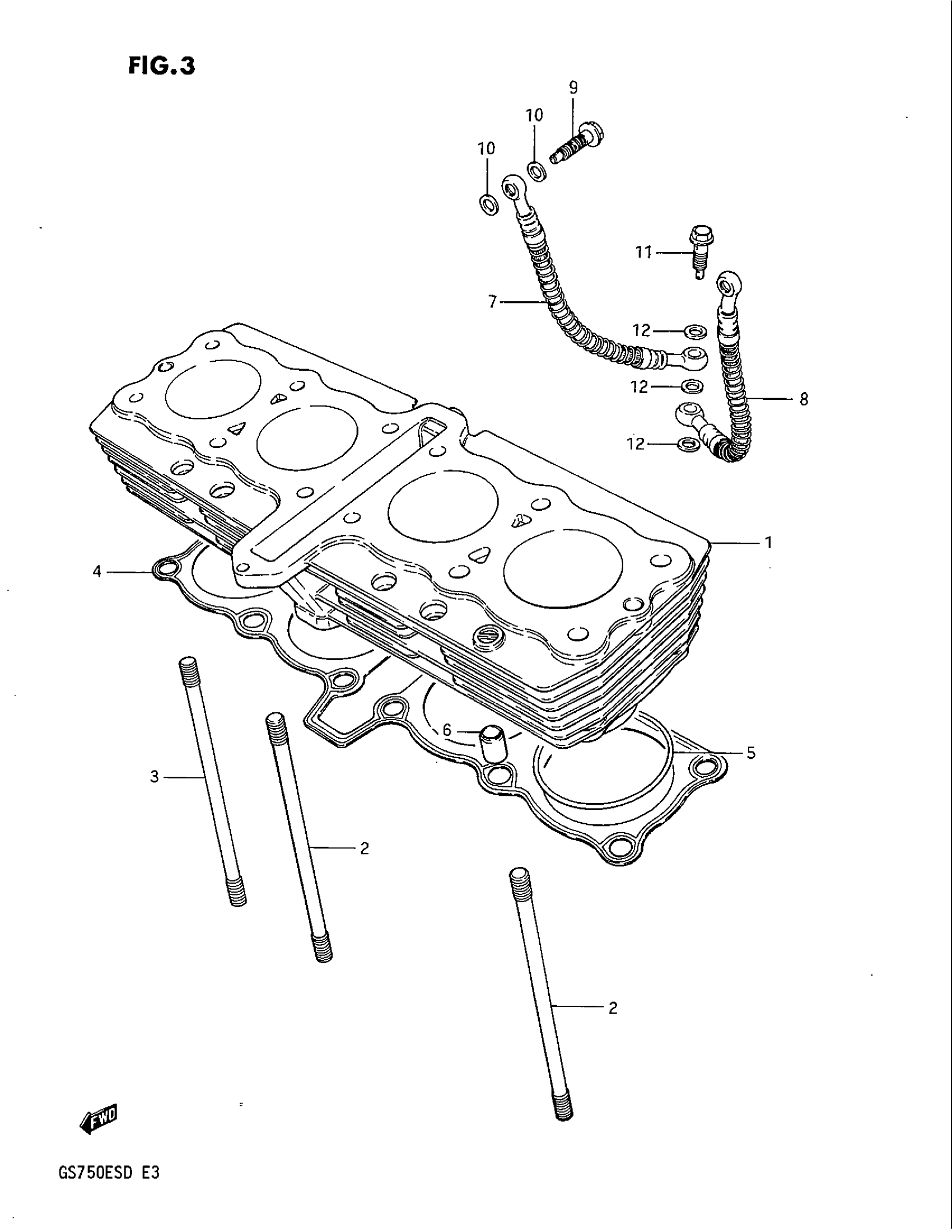

Suzuki GS750E (1983) CYLINDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11210-31306.

11210-31308

Unavailable

2

STUD BOLT (L:161) This part replaces 09108-10057.

09108-10069

Unavailable

3

STUD BOLT

09108-10047

Unavailable

4

GASKET CYLINDER This part replaces 11241-31990.

11241-31305

Unavailable

5

O RING

09280-70001

$5.68

6

PIN This part replaces 09206-13006.

09206-13017

$7.07

7

HOSE OIL CRANKC This part replaces 11281-31304.

11281-31305

Unavailable

8

HOSE OIL CRANKC This part replaces 11282-31304.

11282-31305

Unavailable

9

BOLT (8X25) This part replaces 09360-08008.

09360-08011

$4.70

10

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.70

11

UNION BOLT

11285-31301

Unavailable

12

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.89
