1981 Suzuki GS750E Cam Shaft - Valve Diagram

← All diagrams

Find the part on the Cam Shaft - Valve diagram for your 1981 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

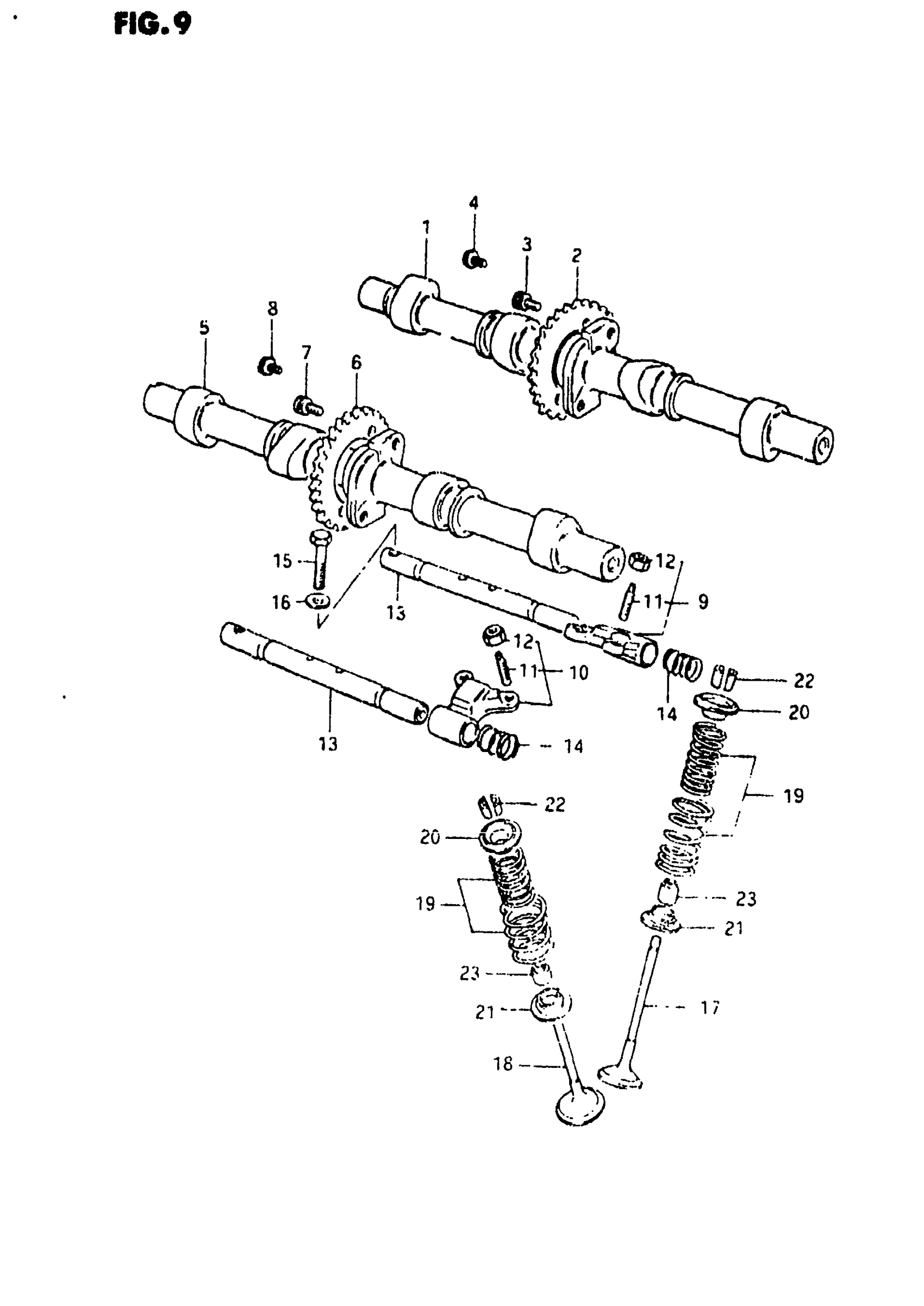

1981 Suzuki GS750E Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | ~E.NO. 150989 This part replaces 12711-45400.

12700-45830

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E.NO. 150990~ This part replaces 12711-45401.

12700-45830

1
Out of stock

2

SPROCKET, IN (NT: 34) | ~E.NO. 150989

12741-45400

1
Out of stock

2

SPROCKET, IN (NT: 34) | E.NO. 150990~

12741-45401

1
Out of stock

3

BOLT, NO.3 | ~E. NO. 150989 This part replaces 09106-06024.

07130-0610B

2
Out of stock

4

BOLT | E. NO. 150990~

09103-07001

2
Out of stock

5

CAM SHAFT, EXHAUST | ~E.NO. 150989 This part replaces 12721-45400.

12700-45820

1
Out of stock

5

CAM SHAFT, EXHAUST | E. NO.150990~ This part replaces 12721-45401.

12700-45820

1
Out of stock

6

SPROCKET, EX (NT:34) | ~E.NO. 150989

12751-45400

1
Out of stock

6

SPROCKET, EX (NT:34) | E.NO. 150990~

12751-45401

1
Out of stock

7

BOLT, NO.3 | ~E.NO. 150989 This part replaces 09106-06024.

07130-0610B

2
Out of stock

8

BOLT | E.NO. 150990~

09103-07001

2
Out of stock

9

ARM VALVE ROCKE This part replaces 12840-45400.

12840-45401

4
Out of stock

10

ARM VALVE ROCKE | Includes Item(s) 11 - 12 This part replaces 12850-45400.

12840-45401

4
Out of stock

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49200.

12842-49201

16
Out of stock

12

.NUT,TAPPET ADJUSTING This part replaces 12843-49200.

12843-27A00

16
Out of stock

13

SHAFT, VALVE ROCKER ARM This part replaces 12860-49200.

12860-31300

4
Out of stock

14

SPRING

09440-13014

8
Out of stock

15

BOLT, REAR | MODEL T This part replaces 09100-06093.

01500-06307

4
Out of stock

15

BOLT, REAR | MODEL X This part replaces 01107-06308.

01500-06307

4
Out of stock

16

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

17

VALVE, INTAKE

12911-45410

8
Out of stock

18

VALVE, EXHAUST

12912-45410

8
Out of stock

19

SPRING SET, VALVE This part replaces 12900-49810.

12920-49210

16
Out of stock

20

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

16
Out of stock

21

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

16
Out of stock

22

COTTER, VALVE

12932-49200

32
Out of stock

23

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

16
Out of stock
