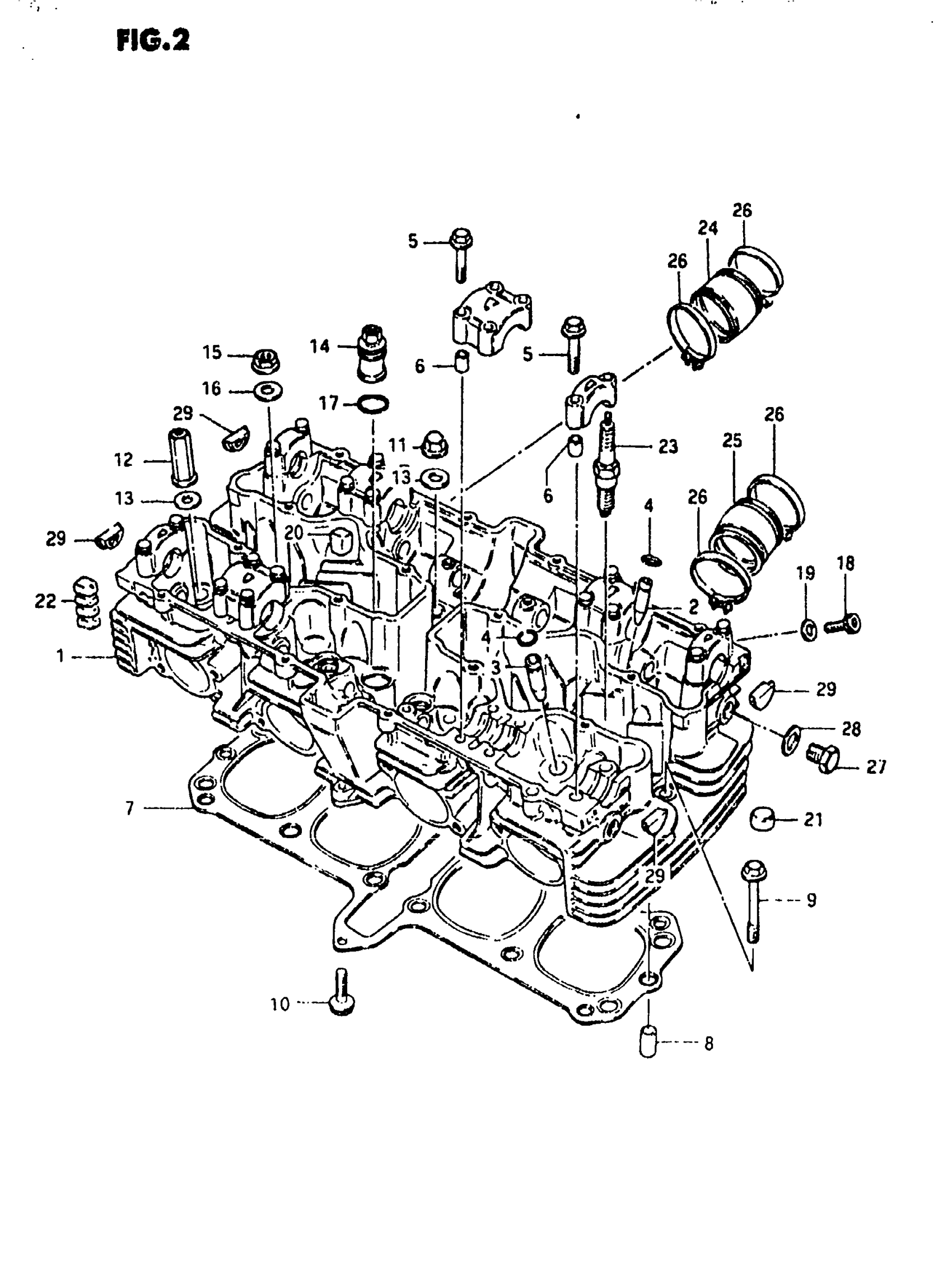

Suzuki GS750E (1981) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 11151-45000 This part replaces 11100-45840.

11100-45861

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 11251-48000; Includes Item(s) 2 - 6 This part replaces 11100-45841.

11100-45861

Unavailable

2

GUIDE, INTAKE VALVE

11115-49290

Unavailable

3

GUIDE, EXHAUST VALVE

11115-49290

Unavailable

4

.RING (10X85)

09381-10004

$1.35

5

BOLT (6X39)

09103-06026

$1.84

6

PIN

09206-08001

$1.77

7

GASKET This part replaces 11141-45401.

11141-45410

Unavailable

8

PIN

04211-11189

$1.80

9

BOLT This part replaces 01517-06308.

01550-06307

$2.73

10

BOLT This part replaces 01517-06308.

01550-06307

$2.73

11

NUT

09159-10026

$5.67

12

NUT

09159-10029

Unavailable

13

GASKET This part replaces 09168-10019.

09168-10017

$2.80

14

SEAL NUT

11145-49200

Unavailable

15

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.38

16

WASHER

09160-10039

$2.24

17

O RING

09280-17002

$4.62

18

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

$2.64

19

GASKET

09168-05010

$1.73

20

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

$3.80

21

PAD, RUBBER | FOR 11100-45840

11151-45000

$3.62

22

RUBBER PAD (N9->4) | FOR 11100-45841 This part replaces 11251-48000.

11251-36500

$6.14

23

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$2.95

23

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$4.60

24

PIPE,INTAKE This part replaces 13111-45400.

13111-45401

$18.78

25

PIPE,INTAKE This part replaces 13121-45400.

13111-45401

$18.78

26

CLAMP

09402-50306

$4.36

27

PLUG This part replaces 09247-14012.

09247-14026

$3.38

28

GASKET

09168-14004

$1.69

29

PLUG, CYLINDER HEAD

09241-23002

$5.58
