1979 Suzuki GS750B Speedometer - Tachometer (GS750C Diagram

← All diagrams

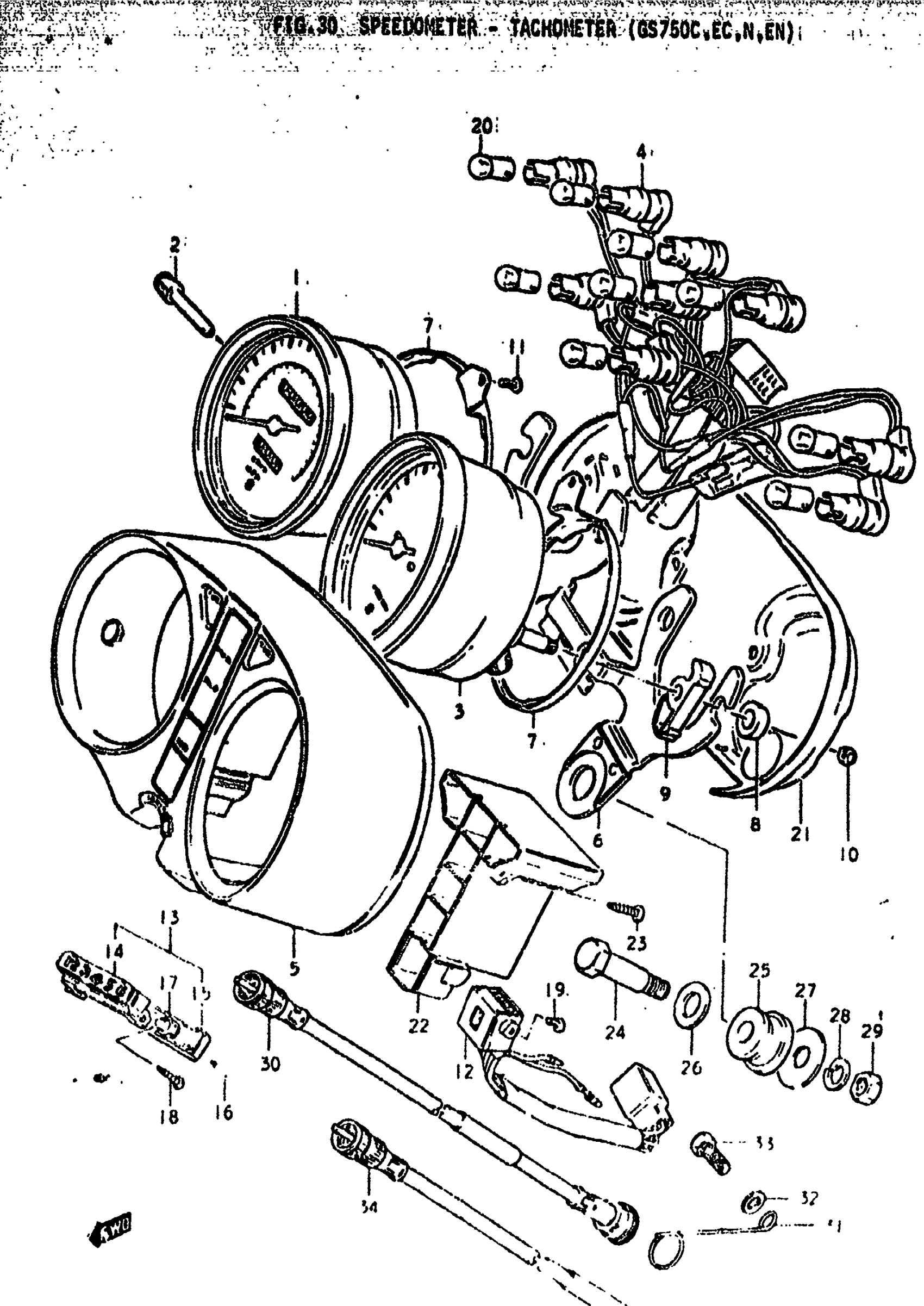

Find the part on the Speedometer - Tachometer (GS750C diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS750B Speedometer - Tachometer (GS750C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34100-45030.

34100-45034

1
Out of stock

0

NO DESCRIPTION AVAILABLE | N&EN; Includes Item(s) 1 - 23 This part replaces 34100-45031.

34100-45034

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34110-45030.

34110-47130

1
Out of stock

1

NO DESCRIPTION AVAILABLE | N&EN This part replaces 34110-45031.

34110-45132

1
Out of stock

2

KNOB | C&EC,N&EN

34980-45020

1
Out of stock

3

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34210-45602.

34210-45604

1
Out of stock

3

NO DESCRIPTION AVAILABLE | N&EN This part replaces 34210-45603.

34210-45604

1
Out of stock

4

SOCKET | C&EC

34173-45620

1
Out of stock

4

SOCKET | N&EN

34173-45621

1
Out of stock

5

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34100-47820.

34150-47820

1
Out of stock

5

CASE, METER | N&EN

34150-45100

1
Out of stock

6

BRACKET | C&EC,N&EN

34951-47020

1
Out of stock

7

HOLDER, METER | C&EC

34953-45020

2
Out of stock

8

CUSHION NO.1 | C&EC,N&EN

34956-45020

4
Out of stock

9

CUSHION NO.2 | C&EC,N&EN

34955-45020

4
Out of stock

10

NUT | C&EC,N&EN This part replaces 08313-11057.

08313-1005A

4
Out of stock

11

4

$1.20

In stock

12

INDICATOR, GEAR POSITION | C&EC

36450-45620

1
Out of stock

13

INDICATOR, GEAR POSITION | N&EN This part replaces 36450-45100.

36450-49401

1
Out of stock

14

CASE | N&EN

36452-45100

1
Out of stock

15

COVER, LOWER | N&EN

36454-45100

1
Out of stock

16

NO DESCRIPTION AVAILABLE | N&EN This part replaces 36456-45100.

03511-03146

2
Out of stock

17

BULB | N&EN

09471-12071

5
Out of stock

18

SCREW | N&EN

36457-45100

2
Out of stock

19

SCREW | C&EC

36491-47020

2
Out of stock

20

9

$2.08

In stock

21

PLATE, UNDER | C&EC

34961-45020

1
Out of stock

21

PLATE, UNDER | N&EN

34961-45021

1
Out of stock

22

PIPE | C&EC

36382-47020

1
Out of stock

22

PIPE | N&EN

36382-45100

1
Out of stock

23

SCREW | C&EC,N&EN This part replaces 36492-47020.

03211-0412A

2
Out of stock

24

BOLT | C&EC,N&EN

09111-08031

2
Out of stock

25

CUSHION | C&EC,N&EN This part replaces 34956-31000.

34956-31001

2
Out of stock

26

WASHER | C&EC,N&EN This part replaces 08322-21108.

08322-01107

2
Out of stock

27

WASHER (8.5X22X2) | C&EC,N&EN; 8.5x29x1.6 This part replaces 09160-08007.

09160-08127

1
Out of stock

29

2

$1.93

In stock

30

CABLE SPEEDOMET | C&EC,N&EN; L:940 This part replaces 34910-16432.

34910-44401

1
Out of stock

31

CLAMP | C&EC,N&EN

34938-37000

1
Out of stock

32

.WASHER | C&EC,N&EN This part replaces 08322-11068.

08322-0106B

1
Out of stock

34

CABLE ASSY,TACH | C&EC This part replaces 34940-45031.

34940-45213

1
Out of stock

34

CABLE ASSY,TACH | N&EN This part replaces 34940-45032.

34940-45213

1
Out of stock
