1979 Suzuki GS750B Starter Clutch Diagram

← All diagrams

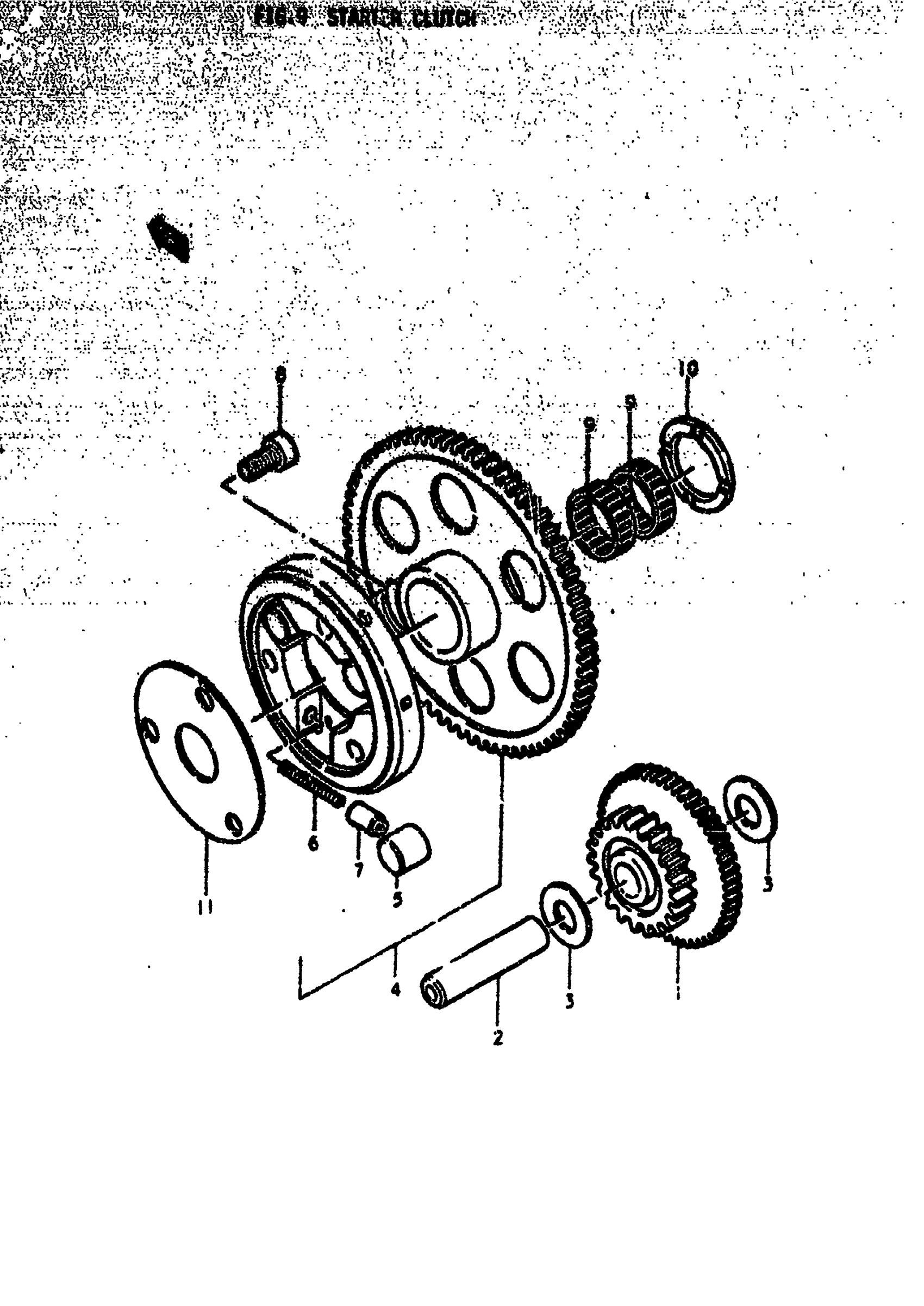

Find the part on the Starter Clutch diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS750B Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE | B,C&EC,N&EN; NT:35/21

12611-45000

1
Out of stock

2

PIN | B,C&EC,N&EN

09206-13003

1
Out of stock

3

WASHER | B,C&EC,N&EN; 13.3x25x0.85

09160-13003

2
Out of stock

4

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; Includes Item(s) 5 - 7 This part replaces 12600-45810.

12600-45821

1
Out of stock

5

ROLLER | B,C&EC,N&EN

09261-15001

3
Out of stock

6

SPRING | B,C&EC,N&EN

09440-04015

3
Out of stock

7

PIECE, PUSH | B,C&EC,N&EN

12633-31000

3
Out of stock

9

BEARING | B,C&EC,N&EN

09263-25020

2
Out of stock

10

WASHER,25X38X1 | B,C&EC,N&EN; 25x38x2.5 This part replaces 09160-25019.

09160-25080

1
Out of stock

11

SHIM, STARTER CLUTCH | B,C&EC,N&EN

12649-45000

1
Out of stock
