1979 Suzuki GS750B Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1979 Suzuki GS750B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

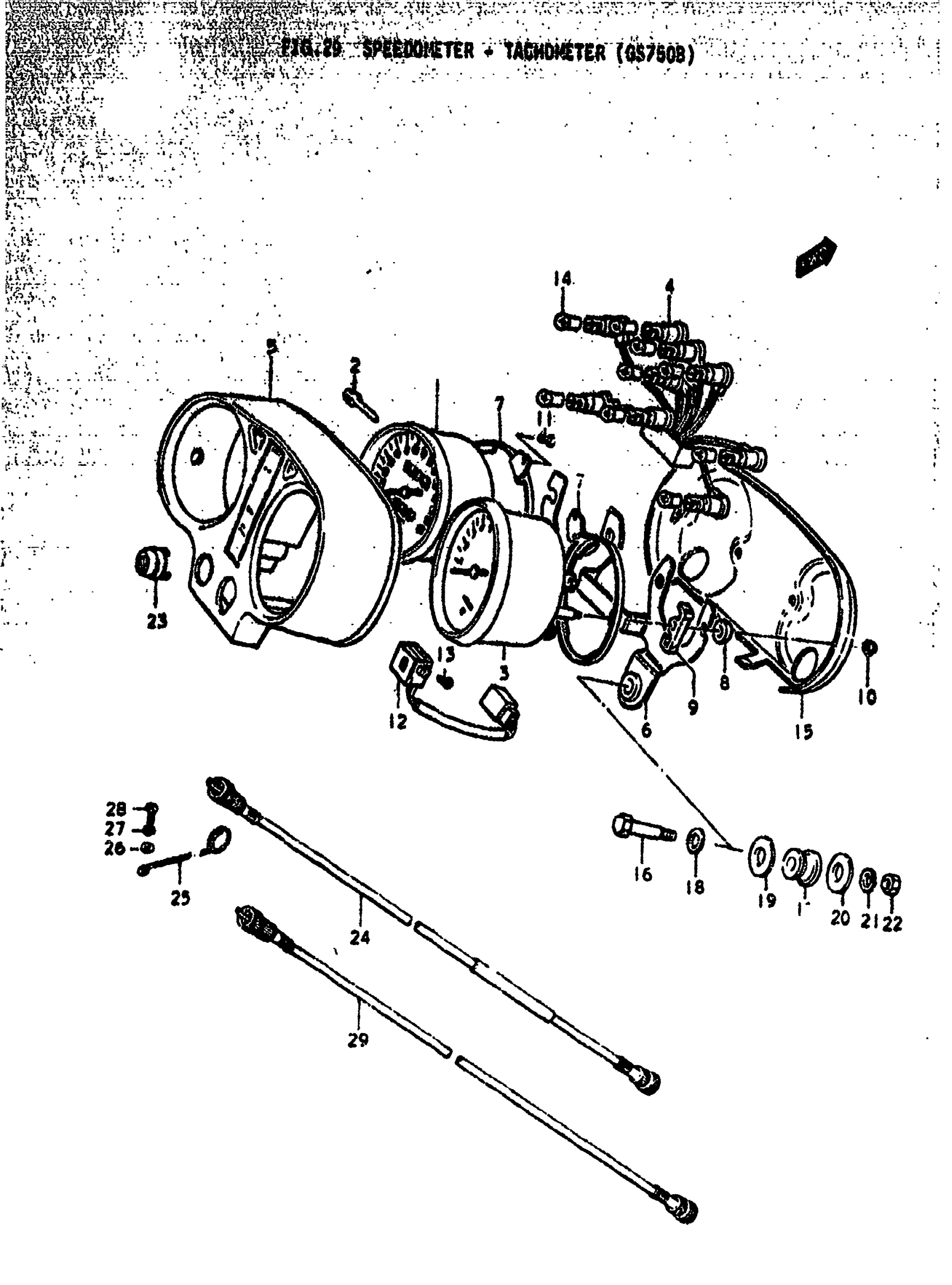

1979 Suzuki GS750B Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 15 This part replaces 34100-45611.

34100-45621

1
Out of stock

1

SPEEDOMETER

34110-45611

1
Out of stock

2

KNOB

34980-45020

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 34210-45601.

34210-45604

1
Out of stock

4

SOCKET

34170-45020

1
Out of stock

5

CASE, METER

34051-45020

1
Out of stock

6

BRACKET

34951-45020

1
Out of stock

7

BRACKET, METER

34953-45020

2
Out of stock

8

CUSHION (A)

34956-45020

4
Out of stock

9

CUSHION (B)

34955-45020

4
Out of stock

10

NUT This part replaces 08313-11057.

08313-1005A

4
Out of stock

11

4

$1.20

In stock

12

INDICATOR, GEAR POSITION This part replaces 36450-45020.

36450-44020

1
Out of stock

13

SCREW

03211-03068

2
Out of stock

14

BULB | 12V, 3.4W

09471-12001

9

$2.08

In stock

15

PLATE, UNDER

34961-45020

1
Out of stock

16

BOLT

09111-08028

2
Out of stock

17

CUSHION This part replaces 34956-31000.

34956-31001

2
Out of stock

18

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

19

WASHER | 10.2x27x1.6 This part replaces 09160-10028.

09160-10035

1
Out of stock

20

WASHER | 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

2
Out of stock

21

2

$2.28

In stock

22

NUT This part replaces 08313-11088.

08313-10087

2
Out of stock

23

CAP, METER

34995-31600

1
Out of stock

24

CABLE SPEEDOMET | L:940 This part replaces 34910-16431.

34910-44401

1
Out of stock

25

CLAMP

34938-37000

1
Out of stock

26

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

27

1

$2.28

In stock

28

1

$2.10

In stock

29

CABLE ASSY,TACH This part replaces 34940-45030.

34940-45213

1
Out of stock
