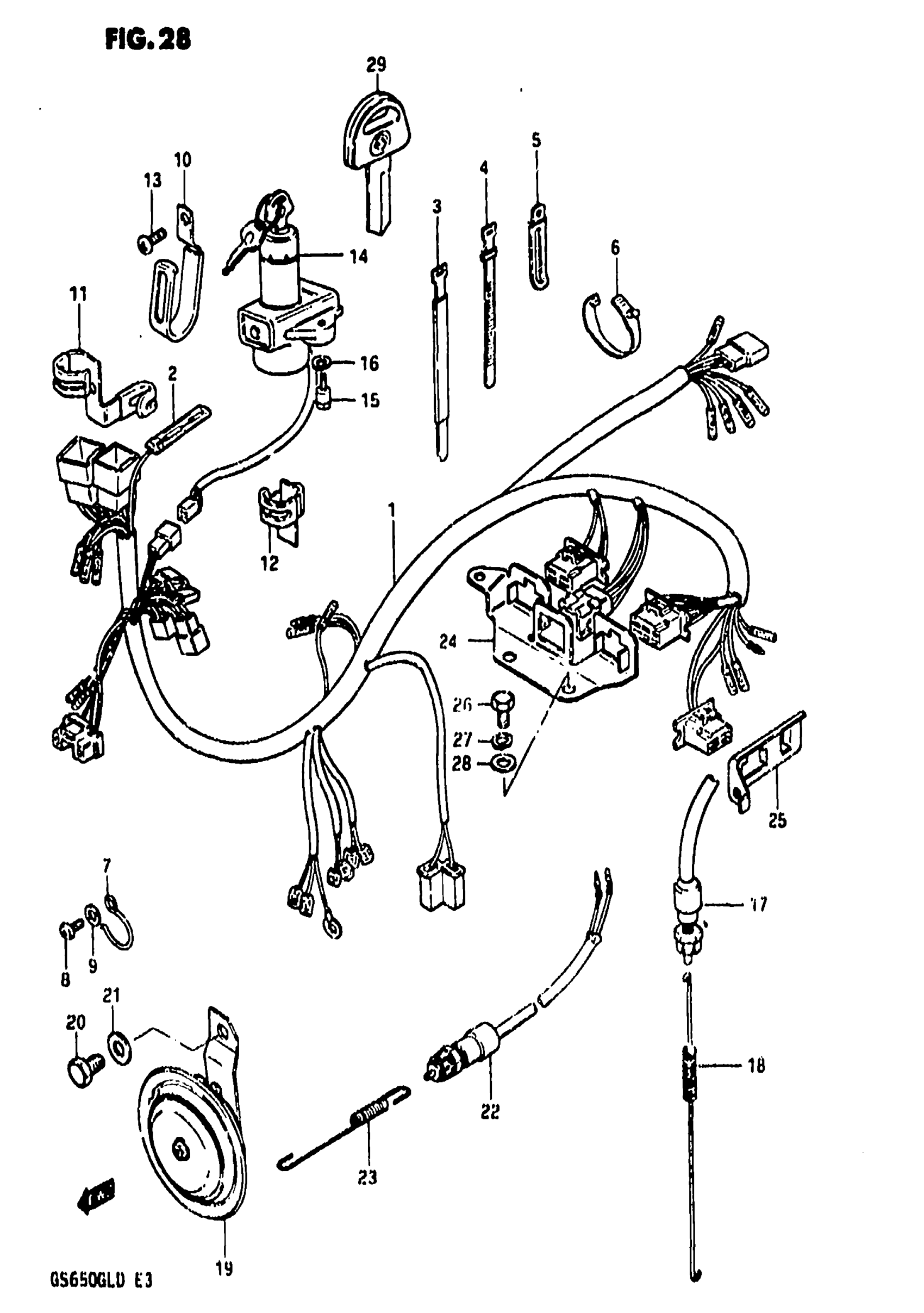

Suzuki GS650GL (1983) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 2

36610-34440

Unavailable

2

DIODE

36611-02100

Unavailable

3

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

4

CLAMP (L:140)

09407-14401

$3.77

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

6

CLAMP

09407-05403

$2.38

7

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

CLAMP

36651-34400

Unavailable

11

CLAMP, RH

36651-34410

Unavailable

12

CLAMP, LH

36651-34420

Unavailable

13

SCREW This part replaces 02112-05068.

09125-05122

$2.06

14

SWITCH ASSY, IGNITION | Includes Item(s) 15 - 16

37100-45301

Unavailable

15

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

18

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

19

HORN

38500-34230

Unavailable

20

BOLT This part replaces 01107-08128.

01500-08127

$2.62

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

SWITCH, PROP STAND WARNING

37840-34500

Unavailable

23

SPRING This part replaces 09443-06021.

09443-06045-XC0

Unavailable

24

PLATE, COUPLER HOLDER (A)

47450-34200

Unavailable

25

PLATE, COUPLER HOLDER (B)

47452-34200

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

KEY, BLANK | OPT

37146-47010

$18.39
