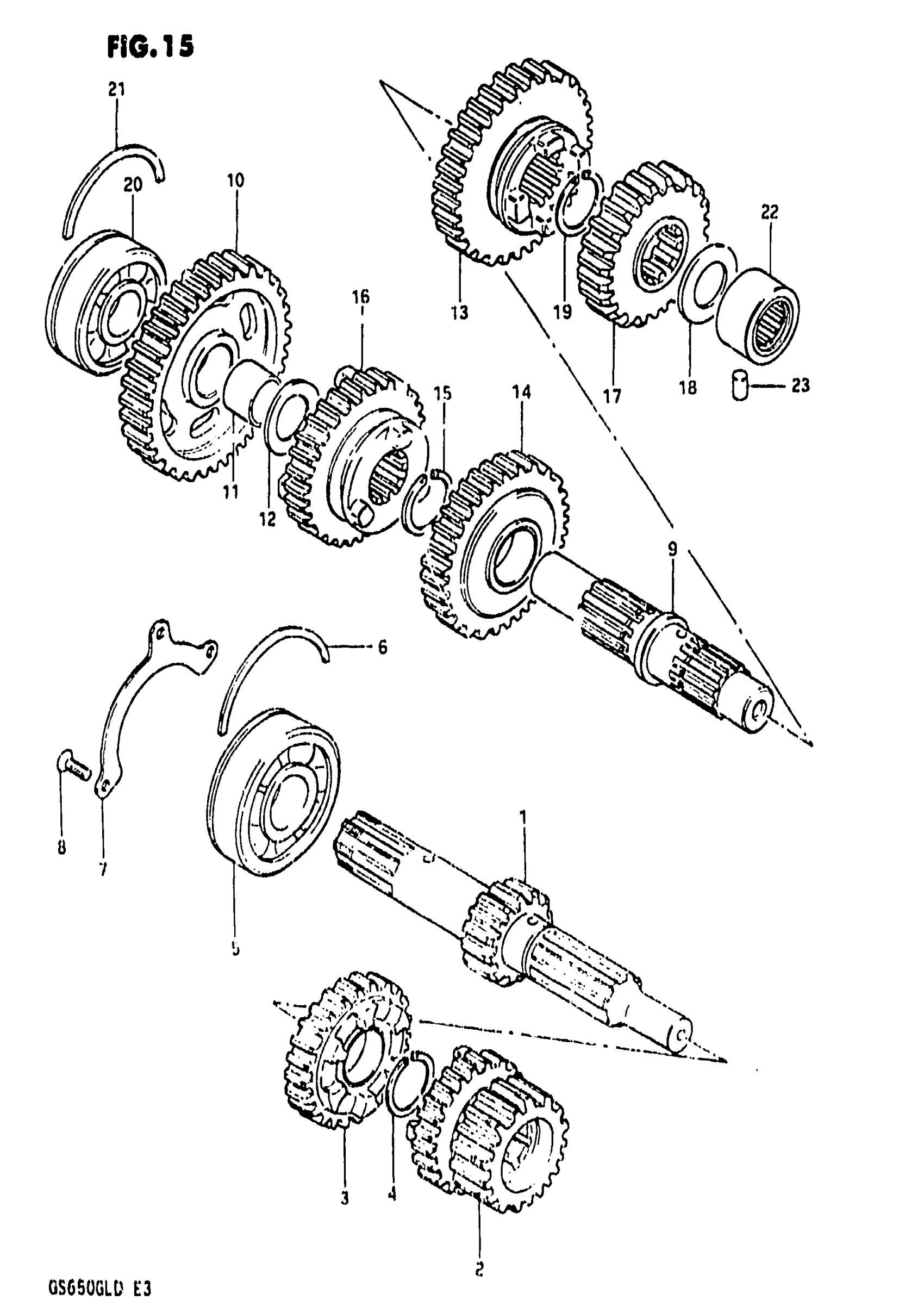

Suzuki GS650GL (1983) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24121-34201

Unavailable

2

GEAR, 2/3 DRIVE (NT:18/21)

24221-34201

Unavailable

3

GEAR, 4TH DRIVE (NT:24)

24240-34200

Unavailable

4

CIRCLIP

09380-25010

$2.91

5

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

6

C RING This part replaces 09390-62006.

09390-62012

$7.31

7

HOLDER, BEARING

24741-45000

Unavailable

8

SCREW This part replaces 02122-06168.

02122-06167

$1.49

9

DRIVESHAFT

24131-34200

Unavailable

10

GEAR, 1ST DRIVEN (NT:36)

24311-34200

Unavailable

11

BUSH

09300-20023

Unavailable

12

WASHER, LH

08211-20323

$3.03

13

GEAR, 2ND DRIVEN (NT:32)

24320-34200

Unavailable

14

GEAR, 3RD DRIVEN (NT:29)

24330-34200

Unavailable

15

CIRCLIP

09380-25010

$2.91

16

GEAR, 4TH DRIVEN (NT:27)

24341-34200

Unavailable

17

GEAR, REDUCTION (NT:24)

24351-34200

Unavailable

18

WASHER

24359-34200

Unavailable

19

CIRCLIP

09380-25010

$2.91

20

BEARING, RH

09262-20055

Unavailable

21

C RING

09390-47003

Unavailable

22

BEARING, LH

09263-20038

$55.95

23

PIN

04221-07129

$1.86
