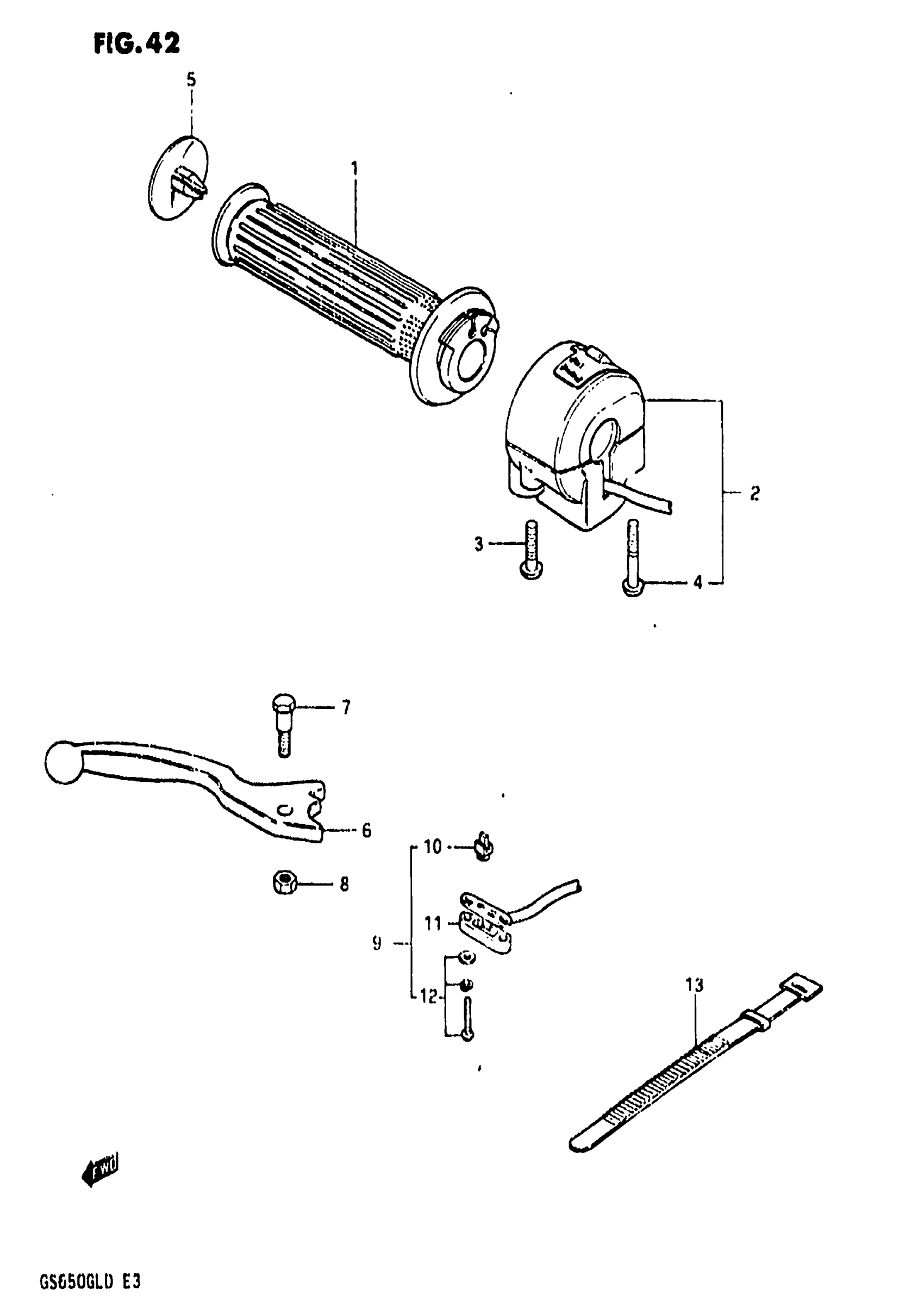

Suzuki GS650GL (1983) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

Unavailable

1

GRIP, THROTTLE | OPT This part replaces 57110-44100.

57110-49501

$34.00

2

CASE ASSY, THROTTLE

37200-45430

Unavailable

2

CASE ASSY, THROTTLE | OPT; Includes Item(s) 3 - 4

37200-45410

Unavailable

3

SCREW This part replaces 02112-05258.

02112-05257

$1.49

4

SCREW This part replaces 02112-05358.

02112-05357

$1.49

5

CAP, GRIP END RH

57215-49100

Unavailable

6

LEVER, BRAKE

57420-49101

$34.15

7

BOLT

57431-18621

$8.28

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

SWITCH ASSY, ST | Includes Item(s) 10 - 12 This part replaces 57460-49300.

57460-45500

$35.23

10

HOLDER

57465-18601

$4.34

11

COVER

57481-33010

$5.84

12

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

13

BAND (L:120)

09407-12402

$3.04
