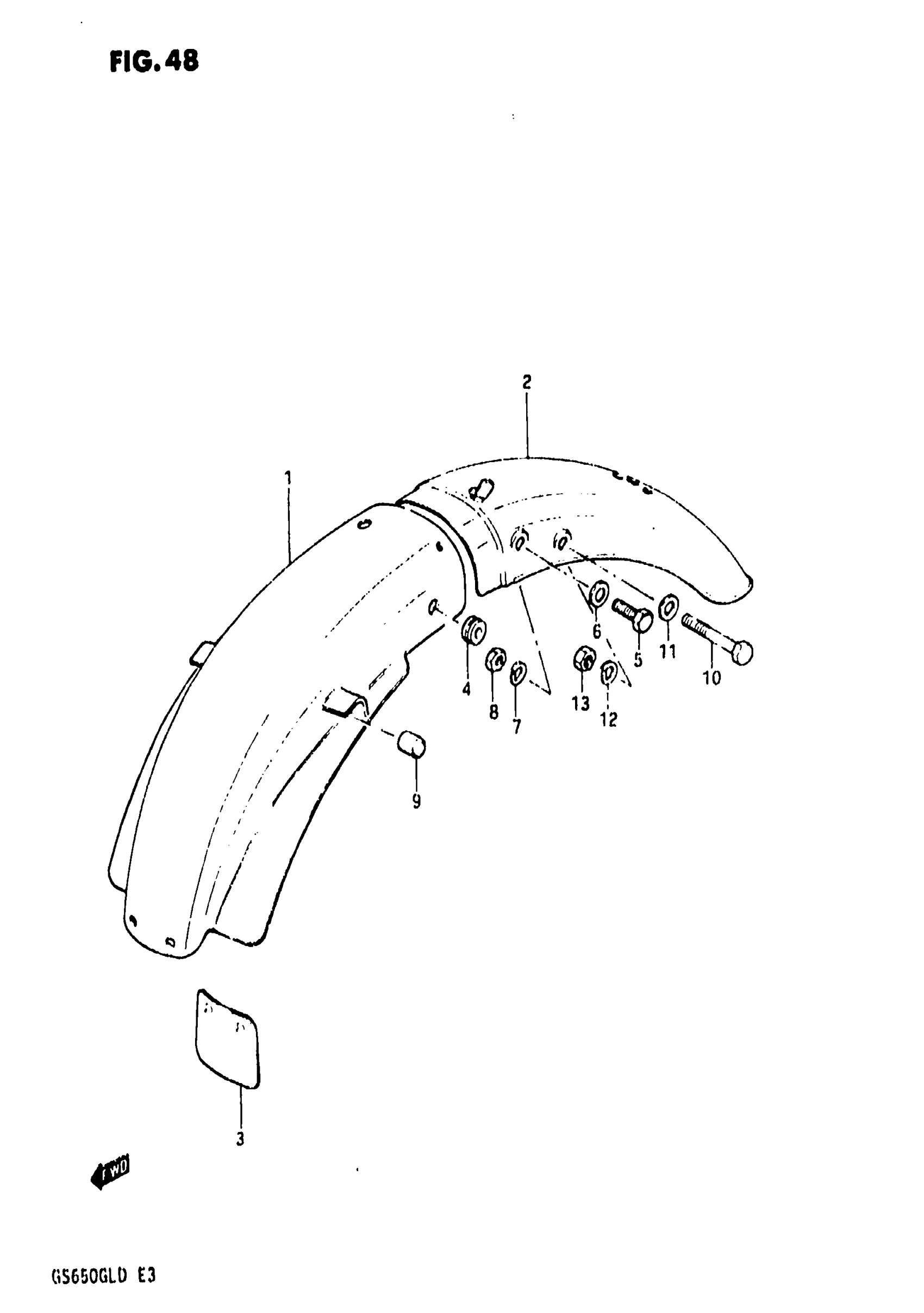

Suzuki GS650GL (1983) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-34213

Unavailable

2

FENDER, REAR

63110-34400

Unavailable

3

MUD GUARD, REAR FENDER

63411-31900

Unavailable

4

CUSHION This part replaces 09320-05006.

09320-06504

$4.61

5

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.57

6

WASHER This part replaces 08322-11088.

08322-01087

$1.92

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

8

NUT This part replaces 08310-22088.

08310-00087

$1.91

9

CUSHION This part replaces 09329-05003.

09329-05009

$2.47

10

BOLT

01204-08757

Unavailable

11

WASHER This part replaces 08322-11088.

08322-01087

$1.92

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

13

NUT This part replaces 08310-22088.

08310-00087

$1.91
