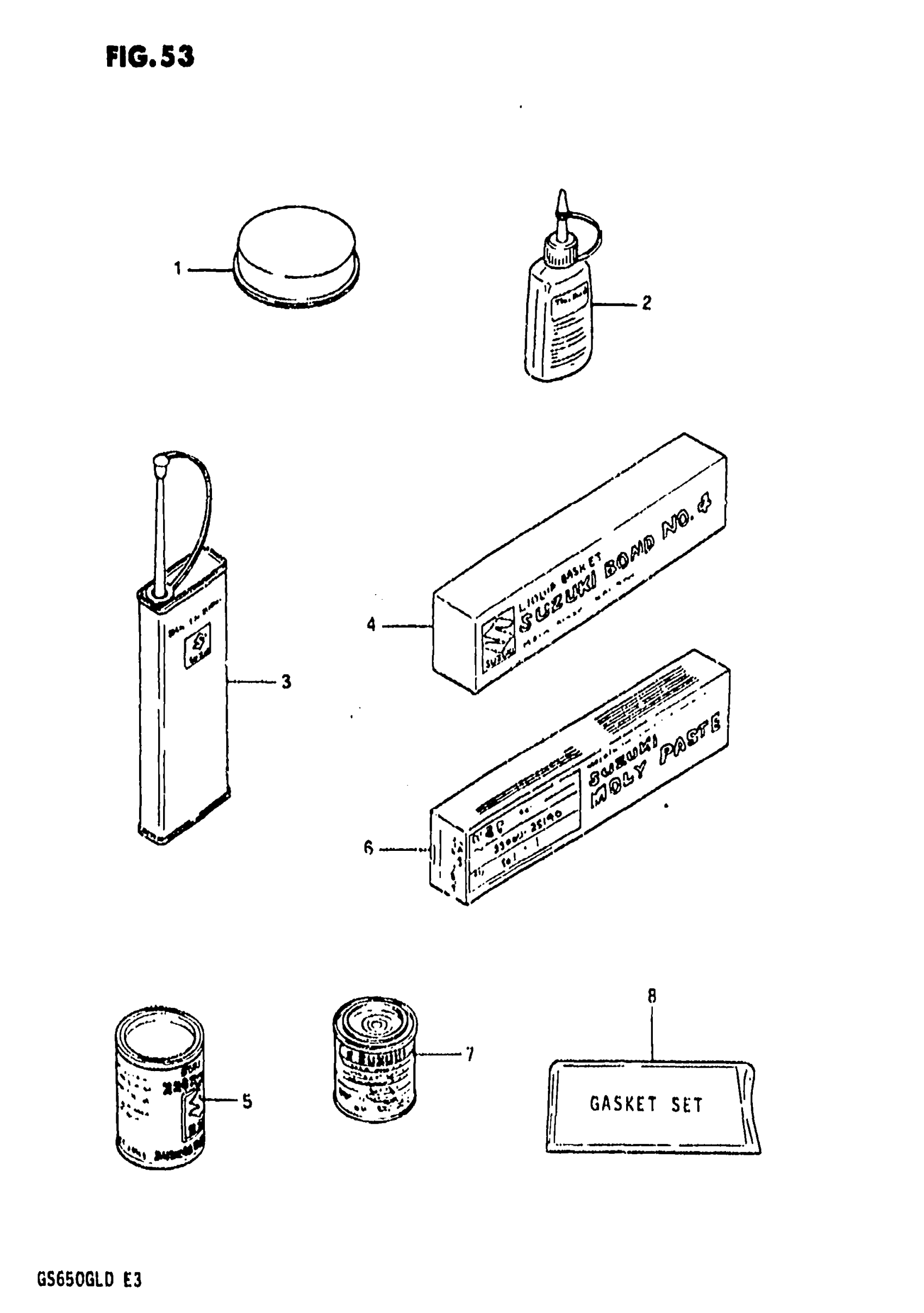

Suzuki GS650GL (1983) OPTIONAL Diagram

#

Description
Price

1

BRAKE PAD GREASE (PBC) | 20G

99000-25110

Unavailable

2

ECSTAR TLOCK 13 | 50G This part replaces 99104-32020.

990A0-06E33-10C

$12.23

2

ECSTAR TLOCK 13 | 50G This part replaces 99104-32030.

990A0-06E03-10C

$12.95

2

ECSTAR TLOCK 13 | 50G This part replaces 99000-32050.

990A0-06E42-10C

$11.28

2

THREAD LOCK, SUPER (1303) | 50G

99000-32100

Unavailable

3

THREAD LOCK CEMENT | 200G

99000-32040

$29.95

4

SUZUKI BOND NO.4 | 200G

99000-31030

Unavailable

5

ECSTAR SPR GREA | 150G This part replaces 99000-25030.

99000-25490

$17.81

6

SUZUKI MOLY PASTE | 50G

99000-25140

$46.71

7

PAINT (BLACK) | 90G

99000-10109-019

Unavailable

7

PAINT (BLACK SEMI-GLOSS) | 90G

99000-10109-291

Unavailable

7

PAINT (BURGUNDY METALLIC) | 90G

99000-10209-05N

Unavailable

7

PAINT (SILVER METALLIC) | 90G

99000-10209-12R

Unavailable

7

PAINT (ROYAL MAROON) | 90G

99000-10209-14A

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 11400-34842.

11400-34848

Unavailable

8

SET UP MANUAL | NOT SHOWN

99505-01113-03E

Unavailable

8

OWNERS MANUAL | NOT SHOWN

99011-34422-03A

Unavailable

8

GS650G 1981-83 | NOT SHOWN This part replaces 99500-36001-03E.

99500-36002-03E

$75.00
