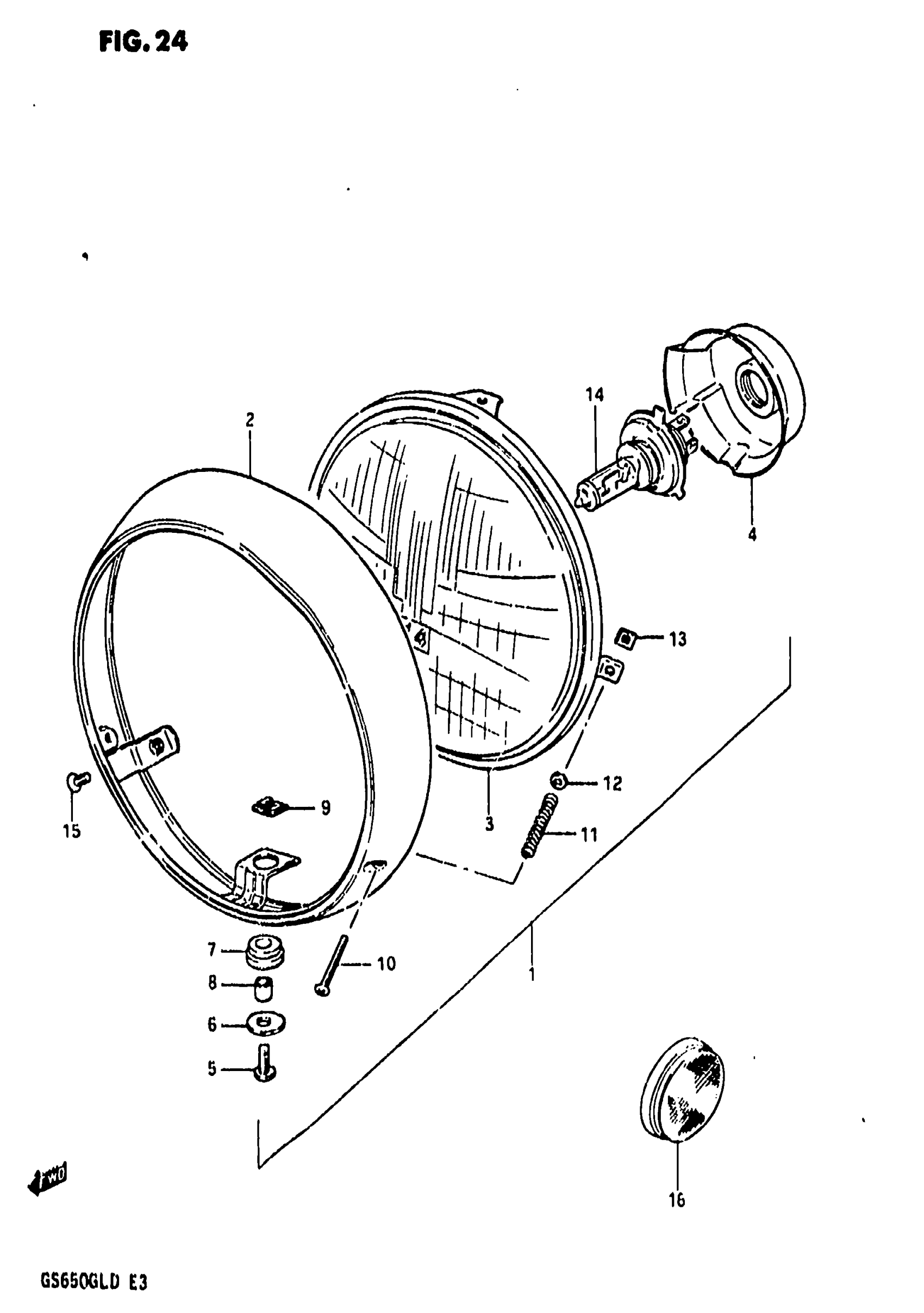

Suzuki GS650GL (1983) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-45231-999

Unavailable

2

RIM

35111-45231

Unavailable

3

UNIT

35121-45230

Unavailable

4

COVER

35173-45200

Unavailable

5

SCREW This part replaces 02112-05168.

02112-05167

$1.97

6

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

7

CUSHION

35139-45230

$1.98

8

SPACER

35133-45230

$3.30

9

NUT

35155-48510

$2.28

10

SCREW

35151-45230

Unavailable

11

SPRING This part replaces 35154-45230.

35154-48510

Unavailable

12

WASHER

35157-27630

$3.25

13

NUT This part replaces 35152-48510.

35135-45600

$3.65

14

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$25.15

15

SCREW

09127-05013

$1.49

16

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
