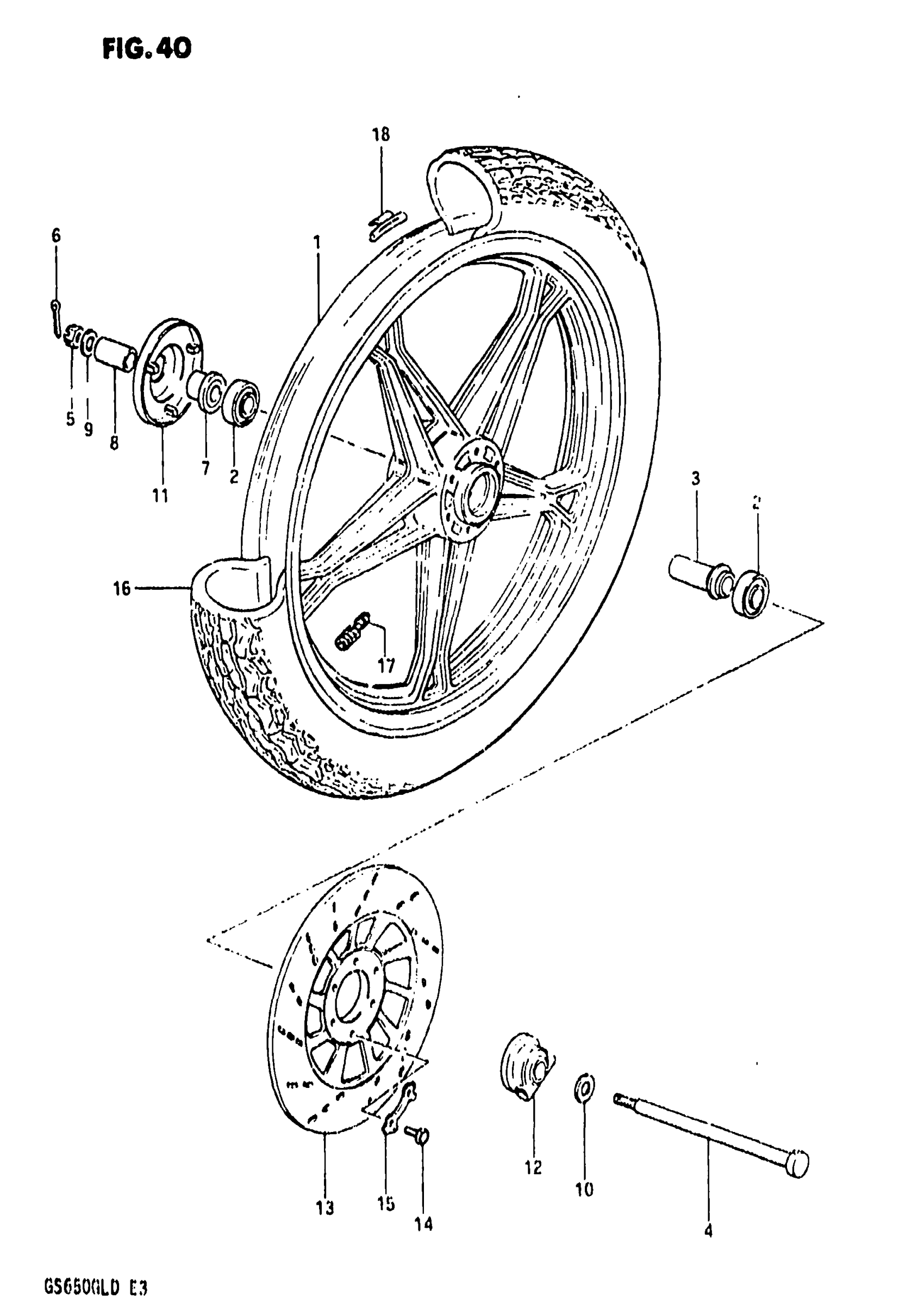

Suzuki GS650GL (1983) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (19xMT1.85) | BLACK

54111-45300-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING, RH (00:22)

54740-18402

Unavailable

8

SPACER, AXLE, RH

54741-49101

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

WASHER, LH

09160-15002

$1.91

11

COVER, RH

54871-45000

$8.98

12

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

$105.57

13

DISK, FRONT BRAKE

59221-34550

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE (90/90-19) | BS

55100-34431

Unavailable

16

TIRE (90/90-19) | DUN

55100-34450

Unavailable

17

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

$22.08

18

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

18

BALANCER (30G)

55412-45100

Unavailable

18

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
