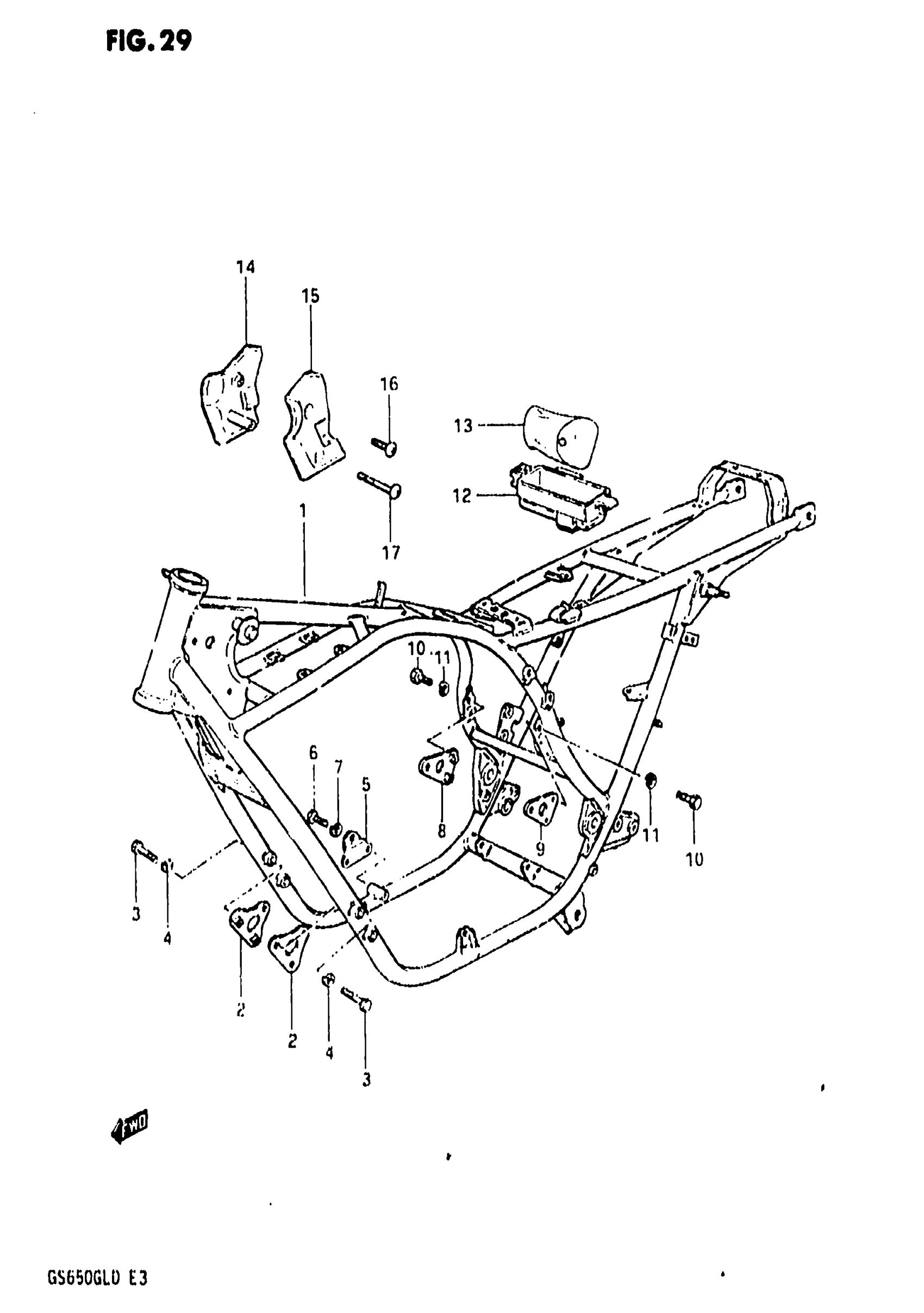

Suzuki GS650GL (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-34401-019

Unavailable

2

PLATE, NO 1

41910-34200-019

Unavailable

3

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 RH (BLACK)

41921-34200-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.4 RH (BLACK)

41970-34200-019

Unavailable

9

PLATE, NO.4 LH (BLACK)

41980-34200-019

Unavailable

10

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

HOLDER, TOOL

41551-34200

Unavailable

13

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

14

COVER, FRAME HEAD RH

51876-34400

Unavailable

15

COVER, FRAME HEAD LH

51886-34400

Unavailable

16

SCREW This part replaces 02142-05208.

02142-05207

$1.49

17

SCREW This part replaces 02142-05458.

02142-05453

$2.32
