1983 Suzuki GS650GL Cylinder Head Diagram

← All diagrams

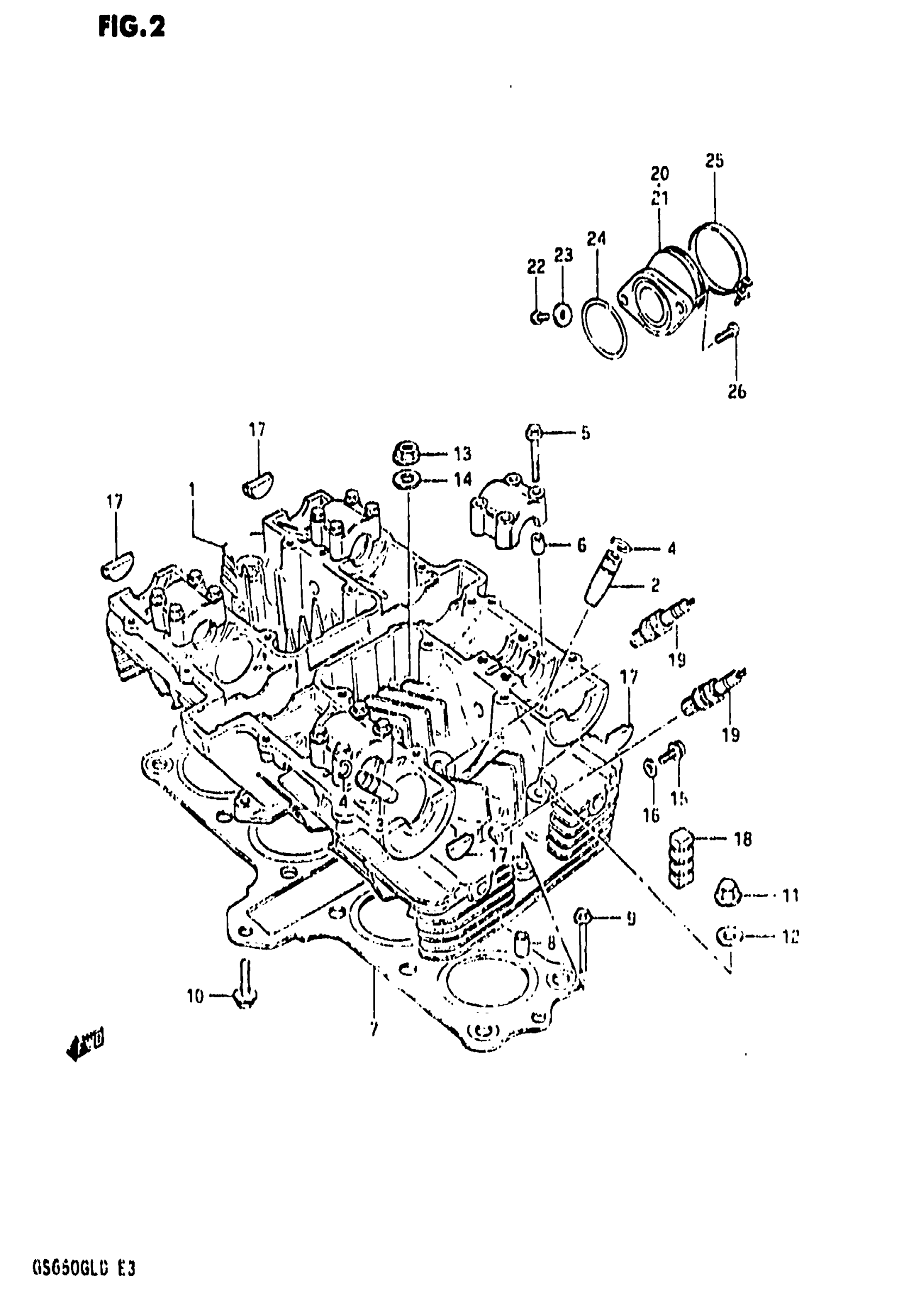

Find the part on the Cylinder Head diagram for your 1983 Suzuki GS650GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS650GL Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD SET | Includes Item(s) 2 - 6

11100-34220

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-34270

4
Out of stock

3

GUIDE, EXHAUST VALVE

11116-47740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET SET,CYL This part replaces 11141-34203.

11140-34811

1
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01517-06455.

01550-0645A

2
Out of stock

10

BOLT This part replaces 01517-06305.

01550-0630A

1
Out of stock

11

NUT

09159-08029

4
Out of stock

12

GASKET This part replaces 09168-08012.

09168-08013

4
Out of stock

13

8

$1.73

In stock

14

WASHER

09160-08039

8
Out of stock

15

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

2
Out of stock

16

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

17

PLUG, CYLINDER HEAD SIDE

09241-23002

4
Out of stock

18

PAD CYLINDER This part replaces 11252-36500.

11251-36200

4
Out of stock

19

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

4
Out of stock

19

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

4
Out of stock

20

2

$32.57

In stock

21

2

$33.69

In stock

22

SCREW

09106-05011

4
Out of stock

23

4

$1.97

In stock

24

O RING This part replaces 09280-38003.

09280-38004

4
Out of stock

25

CLAMP

09402-50306

4
Out of stock

26

SCREW This part replaces 02112-06165.

02112-0616A

8
Out of stock
