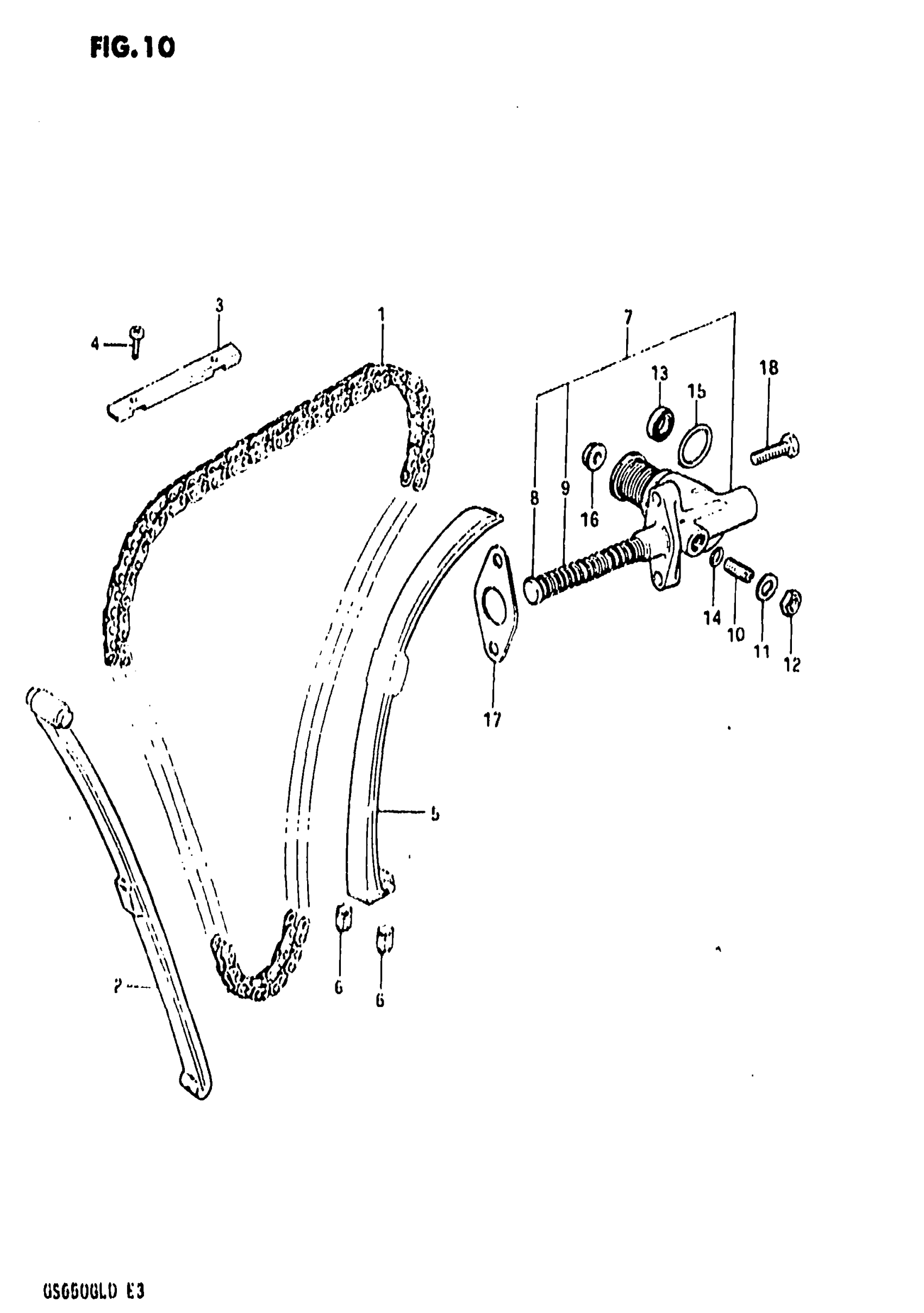

Suzuki GS650GL (1983) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-45040

$166.47

2

GUIDE,CAM CHAIN NO.1

12771-34200

Unavailable

3

GUIDE, CAM CHAIN This part replaces 12782-49140.

12782-33200

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.43

5

TENSIONER, CAM CHAIN

12810-34201

Unavailable

6

CUSHION

12814-44101

$7.45

7

ADJUSTER ASSY,T | Includes Item(s) 8 - 16 This part replaces 12830-47010.

12830-0930V

Unavailable

8

PUSH ROD

12833-47001

Unavailable

9

SPRING

09440-12017

$2.67

10

SCREW This part replaces 12838-45010.

12838-45001

$9.50

11

WASHER This part replaces 08322-11085.

08322-0108A

$2.18

12

NUT This part replaces 08310-11085.

08310-0008A

$1.86

13

OIL SEAL This part replaces 09284-10003.

09284-10006

$3.13

14

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.45

15

O RING This part replaces 09280-21001.

09280-21013

$2.29

16

NUT This part replaces 08316-16065.

08316-1006B

$2.50

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$3.97

18

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.53
