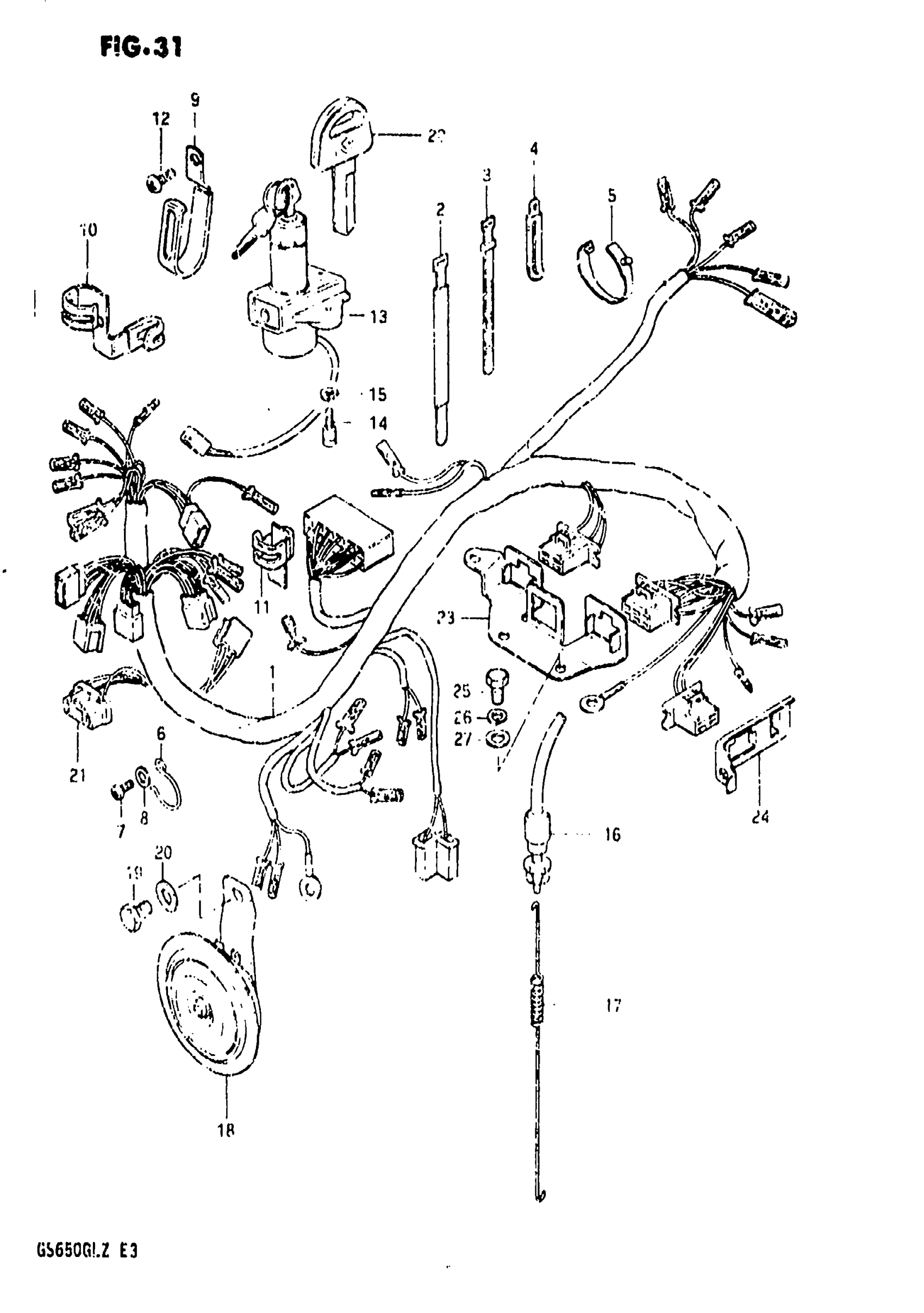

Suzuki GS650GL (1982) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL X

36610-34400

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 36610-34430.

36610-34431

Unavailable

2

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

3

CLAMP (L:140)

09407-14401

$3.77

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

5

CLAMP

09407-05403

$2.38

6

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

7

SCREW This part replaces 02112-06128.

02112-06127

$1.84

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

CLAMP

36651-34400

Unavailable

10

CLAMP, RH

36651-34410

Unavailable

11

CLAMP, LH

36651-34420

Unavailable

12

SCREW This part replaces 02112-05068.

09125-05122

$2.06

13

SWITCH ASSY, IGNITION | Includes Item(s) 14 - 15

37100-45301

Unavailable

14

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

17

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

18

HORN | MODEL X

38500-34221

Unavailable

18

HORN | MODEL Z

03850-34230

Unavailable

19

BOLT This part replaces 01107-08128.

01500-08127

$2.62

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

LEAD WIRE, HEADLAMP | MODEL X This part replaces 36852-34000.

36853-30500

$11.63

22

KEY, BLANK | OPT

37146-47010

$18.39

23

PLATE, COUPLER HOLDER (P)

47450-34200

Unavailable

24

PLATE, COUPLER HOLDER (B)

47452-34200

Unavailable

25

BOLT This part replaces 01107-06128.

01500-06127

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13
