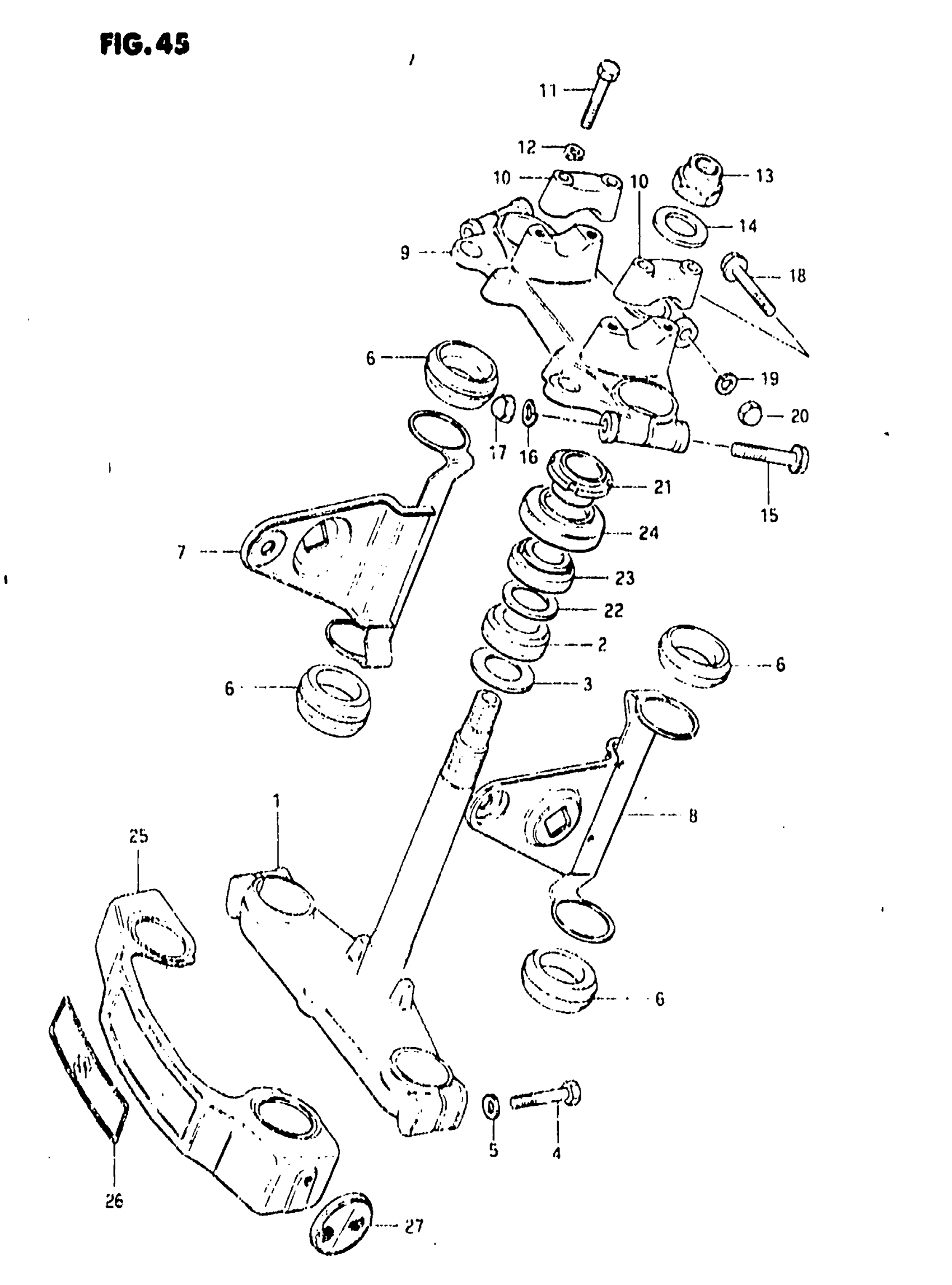

Suzuki GS650GL (1982) STEERING STEM (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 51400-34810.

51400-34861

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

BOLT This part replaces 01107-08458.

01500-08453

$2.50

5

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

6

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

7

BRACKET, HEAD LAMP RH | BLACK

51530-34400

Unavailable

8

BRACKET, HEAD LAMP LH

51540-34400

Unavailable

9

STEM HEAD, STEERING | BLACK

51311-34400-291

Unavailable

10

CLAMP, HANDLE BAR UPPER | BLACK

56211-27200-291

$17.90

11

BOLT

01204-08357

$2.09

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

NUT

51353-45000

$9.69

14

WASHER

51356-31700

Unavailable

15

BOLT This part replaces 01517-10558.

01550-10557

$3.91

16

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

17

NUT

09145-10002

Unavailable

18

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

NUT This part replaces 08313-11088.

08313-10087

$2.28

21

NUT, STEERING STEM

51631-34200

Unavailable

22

WASHER

09160-18002

$2.38

23

BEARING, UPPER

09265-25008

Unavailable

24

SEAL,DUST This part replaces 51643-40501.

51643-40503

$6.15

25

COVER, FRONT FORK

51871-45301

Unavailable

26

EMBLEM, FRONT FORK COVER

68211-45300

Unavailable

27

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
