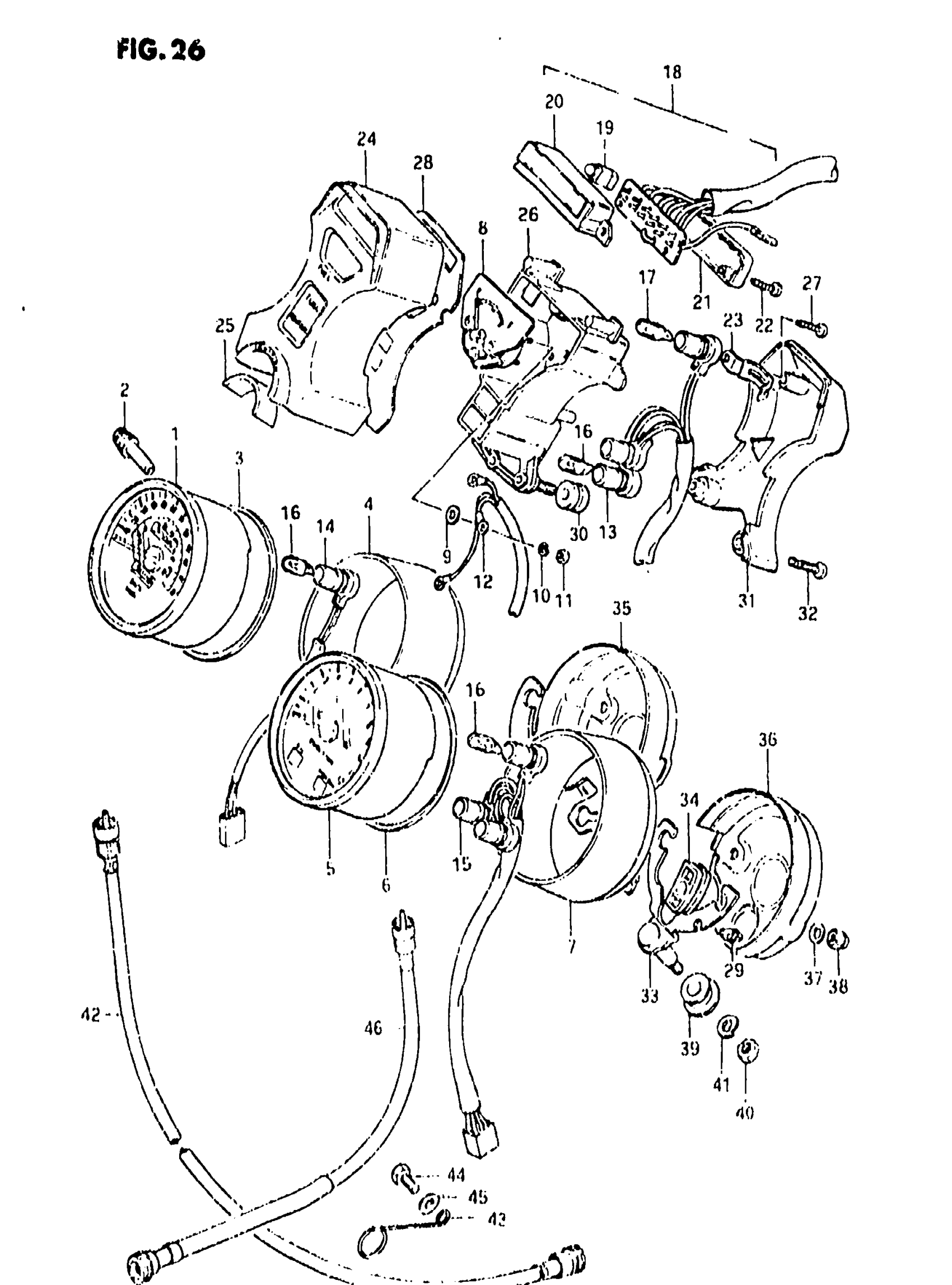

Suzuki GS650GL (1982) SPEEDOMETER-TACHOMETER (MODEL Z) Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE

34110-47460

Unavailable

2

KNOB

34980-45020

$3.77

3

CUSHION This part replaces 34189-33220.

34189-45300

Unavailable

4

COVER, SPEEDOMETER

34151-33220

Unavailable

5

TACHOMETER This part replaces 34210-34570.

34210-45360

$408.50

6

CUSHION This part replaces 34189-33220.

34189-45300

Unavailable

7

COVER, TACHOMETER

34251-33220

Unavailable

8

FUELMETER

34320-33220

Unavailable

9

WASHER

34384-33220

Unavailable

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

11

NUT This part replaces 08310-11038.

08310-0003B

$2.83

12

LEAD WIRE, FUELMETER

34378-45360

Unavailable

13

SOCKET, PILOT LAMP

36325-45630

Unavailable

14

SOCKET, SPEEDOMETER

34173-45360

Unavailable

15

SOCKET, TACHOMETER

34273-45360

Unavailable

16

BULB (12V,3,4W)

09471-12028

$1.99

17

BULB (12V,1,7W)

09471-12077

$3.55

18

INDICATOR, GEAR POSITION | Includes Item(s) 19 - 22 This part replaces 36450-45101.

36450-49401

Unavailable

19

BULB

09471-12071

$7.20

20

CASE, GEAR INDICATOR

36452-45100

Unavailable

21

COVER, LOWER

36454-45100

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

23

CLAMP

36494-33220

Unavailable

24

CASE, PILOT BOX

36381-33220

Unavailable

25

SEAL

34993-47000

Unavailable

26

BOX, PILOT

36382-33220

Unavailable

27

SCREW This part replaces 36456-33220.

35625-01A00

Unavailable

28

PANEL

36386-33220

Unavailable

29

CUSHION

34191-44310

Unavailable

30

CUSHION

36384-45300

Unavailable

31

COVER, PILOT BOX

36383-33220

Unavailable

32

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

33

BRACKET

34950-45360

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 34189-44310.

34189-44311

Unavailable

35

NO DESCRIPTION AVAILABLE This part replaces 34193-33220.

34193-33221

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 34293-33220.

34293-33221

Unavailable

37

WASHER This part replaces 08322-21058.

08322-01057

$2.13

38

NUT This part replaces 08313-11057.

08313-1005A

$1.93

39

CUSHION

34956-31001

$4.37

40

NUT This part replaces 08310-12088.

08310-00087

$2.13

41

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

42

CABLE,SPEEDOMET This part replaces 34910-34400.

34910-45421

Unavailable

43

CLAMP

34938-45100

$6.57

44

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

45

WASHER This part replaces 08322-21068.

08322-01067

$2.13

46

CABLE ASSY,TACH This part replaces 34940-34311.

34940-47034

$23.49
