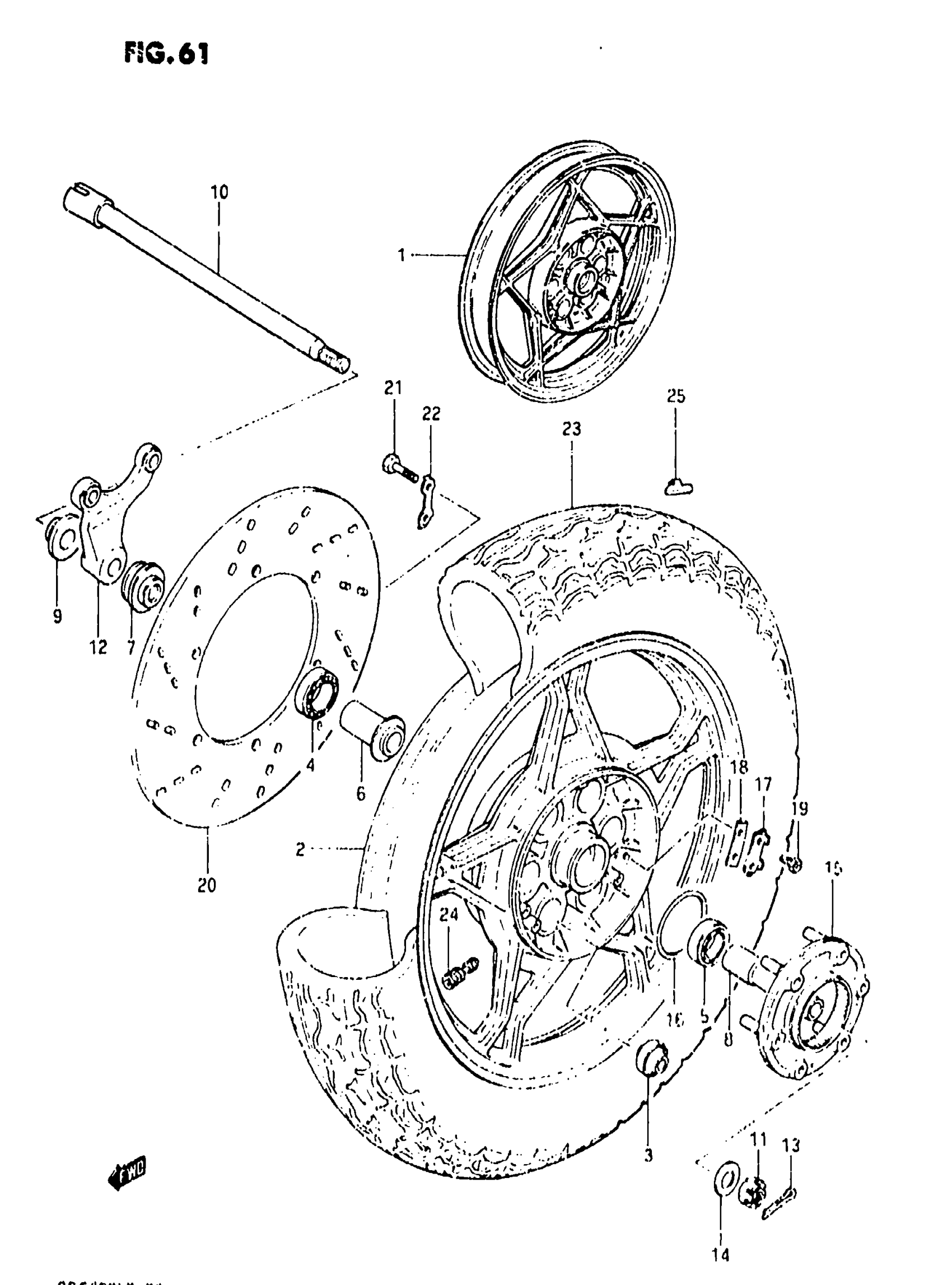

Suzuki GS650GL (1982) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, SET REAR (16x2.75) | MODEL X This part replaces 64100-34810.

64100-34811

Unavailable

2

WHEEL, REAR (16xMT2.75) | MODEL Z; Includes Item(s) 3

64100-45820-291

Unavailable

3

BUSHING

09319-12019

$13.11

4

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

5

BEARING, LH

08143-63037

$22.58

6

SPACER, BEARING

64730-34200

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 64740-47001.

64740-47002

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 64740-47010.

64740-47011

Unavailable

8

SPACER, LH This part replaces 64772-34200.

64772-34201

$23.07

9

NO DESCRIPTION AVAILABLE This part replaces 64741-34300.

64741-34301

Unavailable

10

AXLE, REAR

64711-34200

Unavailable

11

NUT

09141-16001

Unavailable

12

BRACKET, REAR CALIPERS

69721-47001

Unavailable

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

14

WASHER

09160-16025

Unavailable

15

JOINT, HUB DRIVEN This part replaces 64680-45112.

64680-45113

$275.40

16

O RING

09280-65003

$3.72

17

WASHER | MODEL X This part replaces 64676-45114.

09169-06030

$3.15

17

WASHER | MODEL Z

09169-06030

$3.15

18

THRUST WASHER (T:1.6)

64677-45110

$2.92

19

SCREW | MODEL X This part replaces 09128-06005.

02162-0616B

$2.03

19

BOLT | MODEL Z

09119-06049

$1.56

20

DISK, REAR BRAKE

69211-34250

Unavailable

21

BOLT

09100-08140

$2.10

22

WASHER This part replaces 09169-08027.

09169-08030-XC0

Unavailable

23

TIRE, REAR (130/90/16) | BS MODEL X

65100-45330

Unavailable

23

TIRE, REAR (130/90/16) | BS MODEL Z This part replaces 65100-34430.

65100-34431

Unavailable

23

TIRE, REAR (130/90/16) | DUNLOP

65100-45350

Unavailable

24

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

$22.08

25

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

25

BALANCER (30G)

55412-45100

Unavailable
