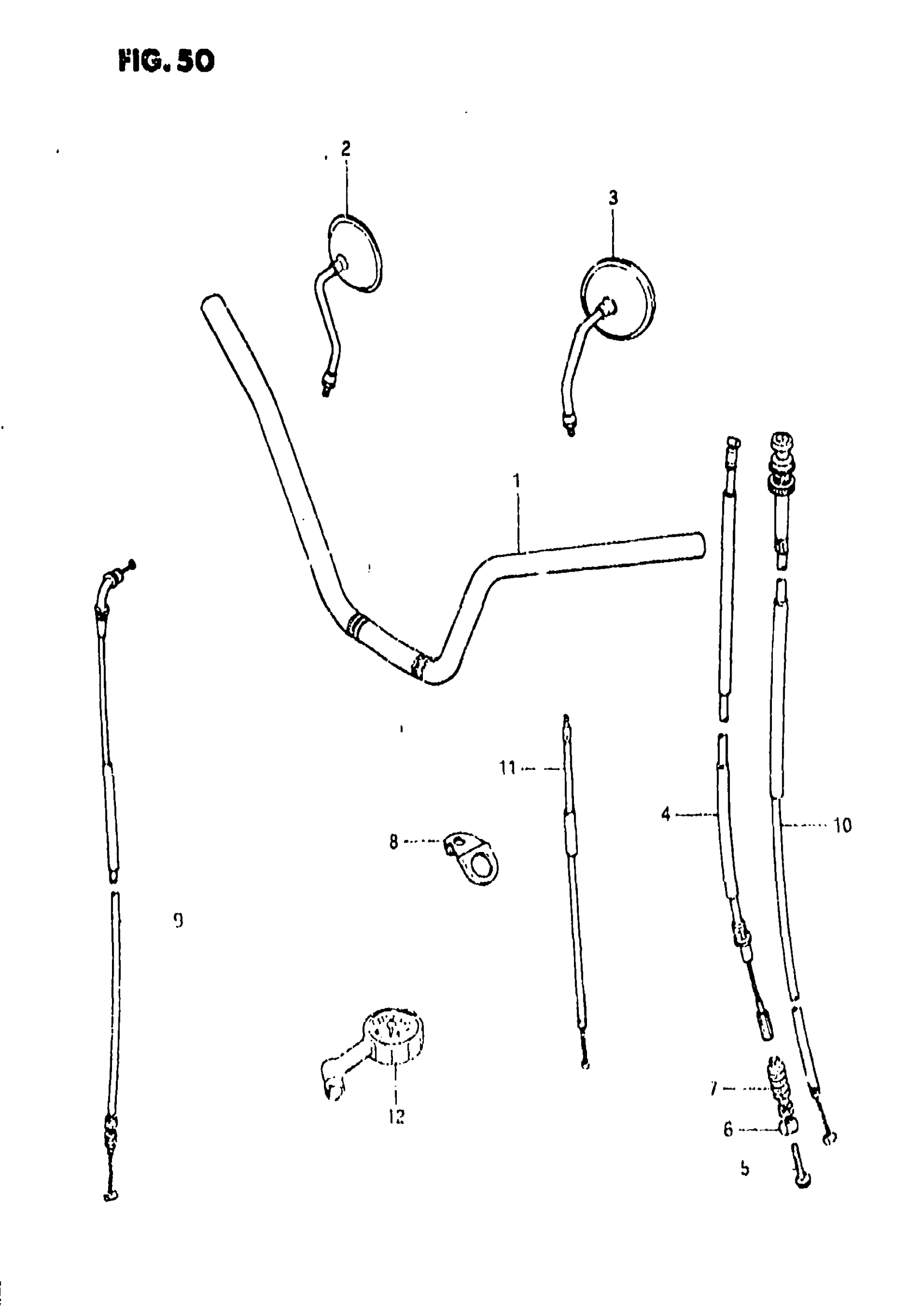

Suzuki GS650GL (1982) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-45210

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-44200.

56500-44202

$69.23

3

MIRROR ASSY,LH This part replaces 56600-44200.

56600-44202

$97.60

4

CABLE,CLUTCH | Includes Item(s) 5 - 7 This part replaces 58200-34400.

58200-34X03

Unavailable

5

SCREW

09125-05034

Unavailable

6

PIN

09209-10019

Unavailable

7

DUST SEAL This part replaces 09287-07004.

09287-07003

Unavailable

8

GUIDE

59243-45010

Unavailable

9

CABLE, THROTTLE This part replaces 58300-34400.

58300-45221

Unavailable

10

CABLE, STARTER | MODEL X This part replaces 58400-47000.

58400-45110

Unavailable

11

CABLE,STARTER | MODEL Z This part replaces 58410-47500.

58410-47X00

Unavailable

12

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
