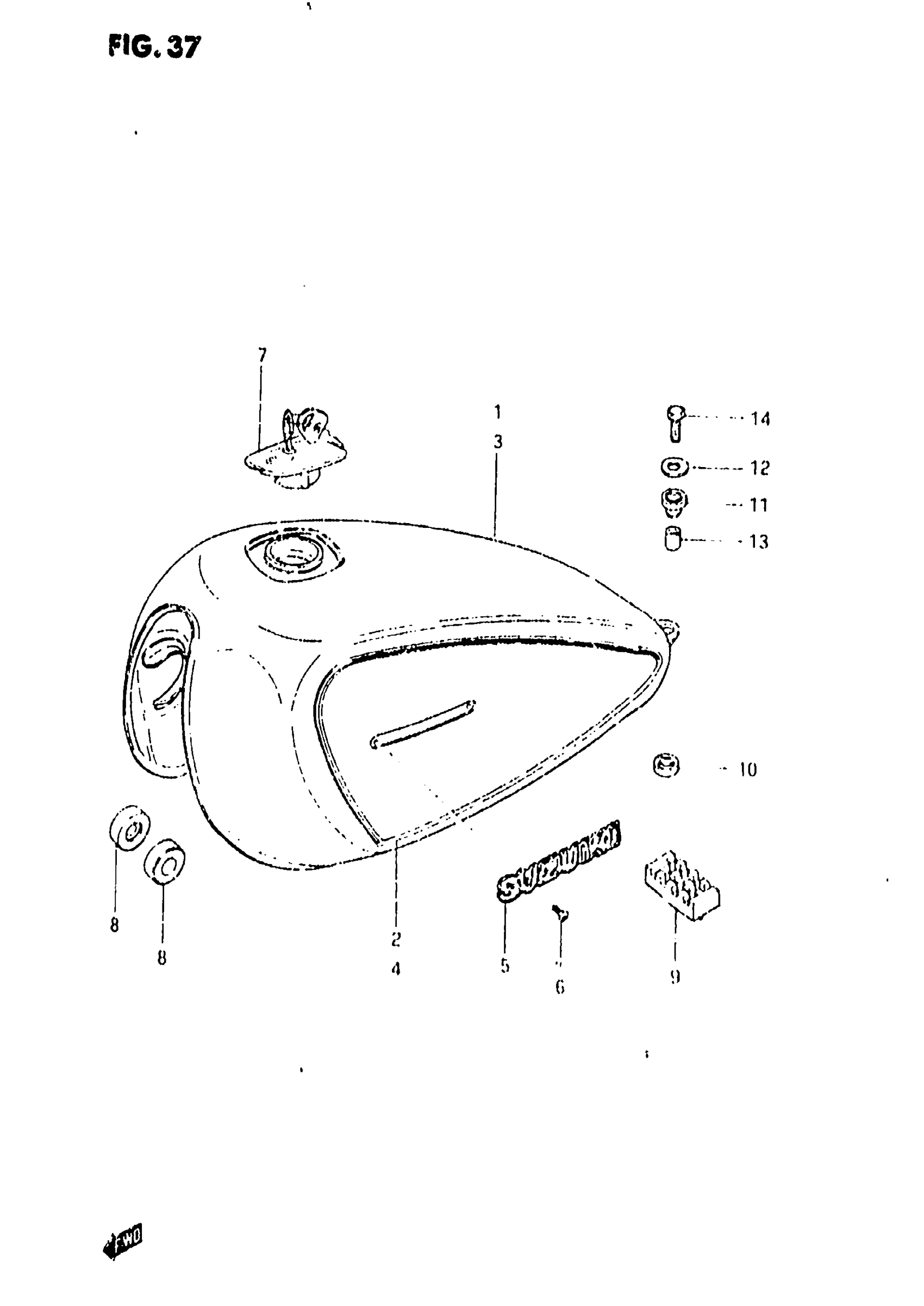

Suzuki GS650GL (1982) FUEL TANK (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-34400-08E.

44110-34400-13L

Unavailable

2

TAPE SET (GOLD)

68110-34400-764

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-34400-05L.

44110-34400-13L

Unavailable

4

TAPE SET (GOLD)

68110-34400-764

Unavailable

5

EMBLEM

68111-11400

$23.97

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-49703.

44200-49811

$144.42

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

10

CUSHION, ROAD LOWER

09320-14013

$2.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

13

SPACER This part replaces 09180-06072.

09180-06271

$2.35

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
