1982 Suzuki GS650GL Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Suzuki GS650GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

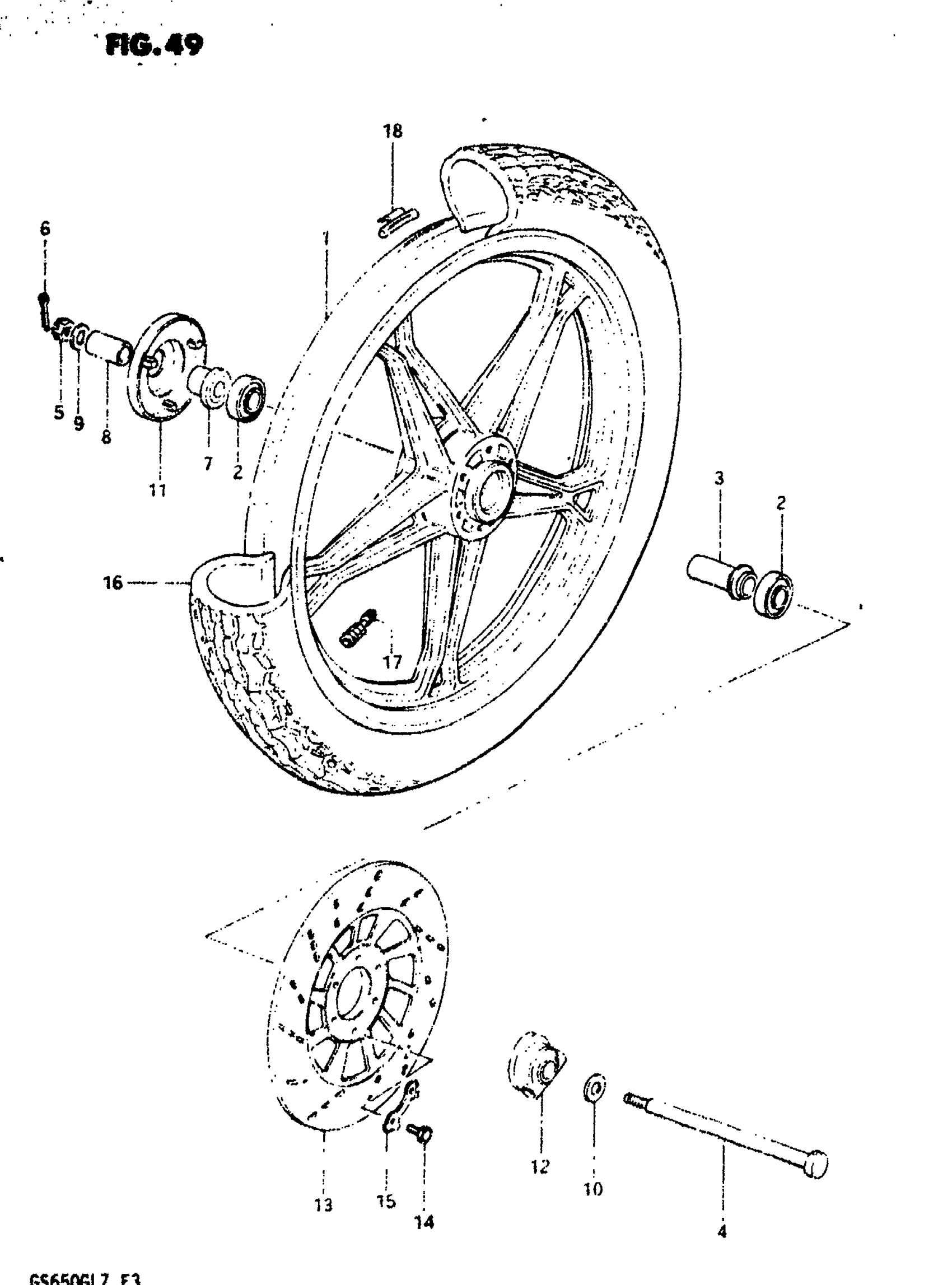

1982 Suzuki GS650GL Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (19xMT1.85) | BLACK

54111-45300-291

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE, FRONT

54711-49000

1
Out of stock

5

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, BEARING RH (00:22)

54740-18402

1
Out of stock

8

SPACER, AXLE RH

54741-49101

1
Out of stock

9

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

10

WASHER

09160-15002

1
Out of stock

11

COVER, RH

54871-45000

1
Out of stock

12

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

1
Out of stock

13

DISK, FRONT BRAKE

59221-34550

1
Out of stock

14

BOLT

09100-08140

6
Out of stock

15

WASHER

09169-08016

3
Out of stock

16

TIRE (90/90-19) | BS This part replaces 55100-34430.

55100-34431

1
Out of stock

16

TIRE (90/90-19) | DUN

55100-34450

1
Out of stock

17

VALVE, TUBLESS This part replaces 55220-45100.

43130-24A40

1
Out of stock

18

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

18

BALANCER, L (30G)

55412-45100

—
Out of stock
