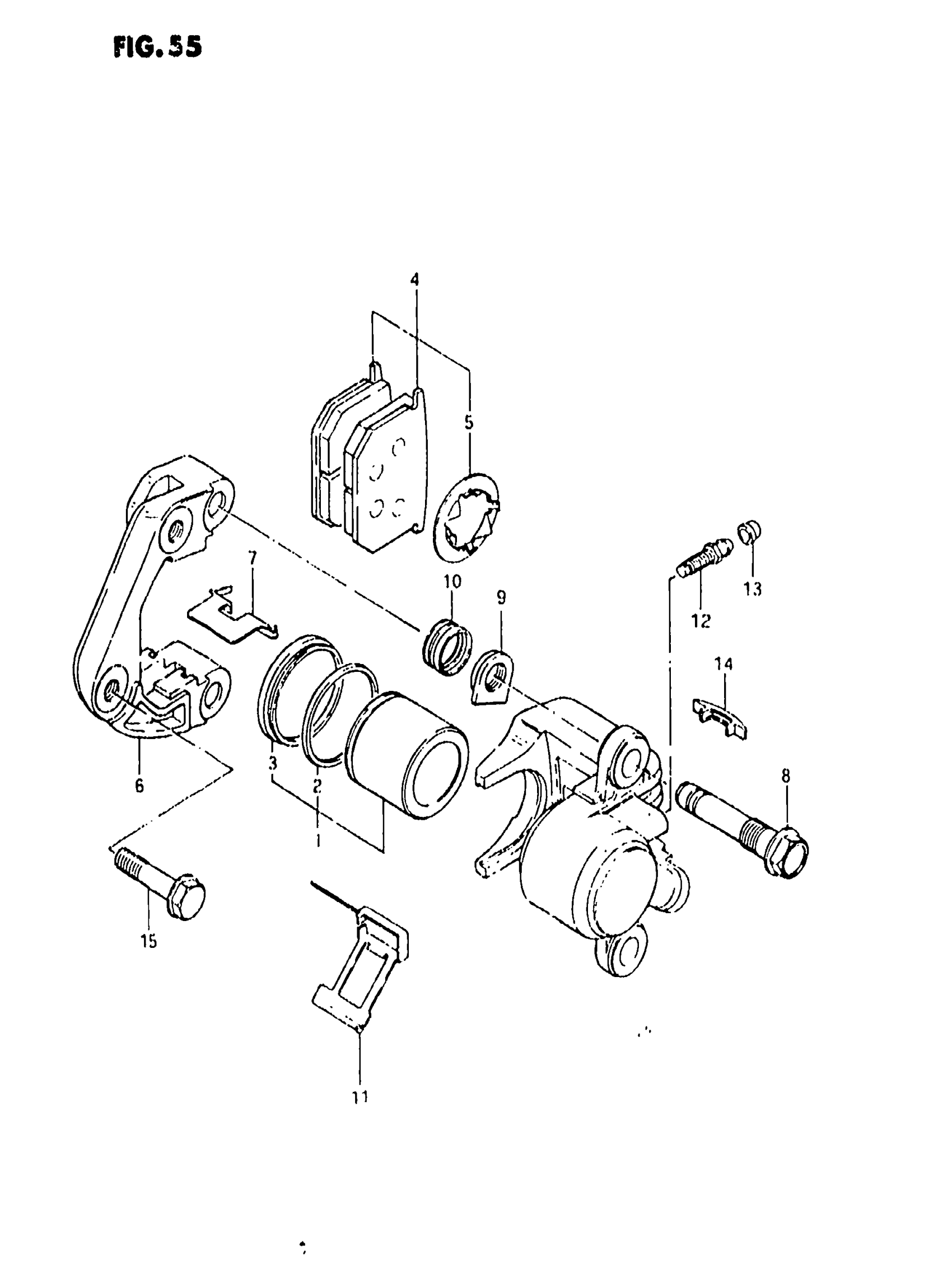

Suzuki GS650GL (1982) FRONT CALIPERS Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 59300-49151.

59300-49153

Unavailable

0

NO DESCRIPTION AVAILABLE | MODEL Z; Includes Item(s) 1 - 14 This part replaces 59300-49152.

59300-49153

Unavailable

1

PISTON SET

59300-49830

Unavailable

2

PISTON SEAL This part replaces 59307-45020.

59307-45021

Unavailable

3

BOOT, PISTON

59308-49050

Unavailable

4

PAD SET | MODEL X This part replaces 59300-49820.

59300-49850

Unavailable

4

PAD SET | MODEL Z This part replaces 59300-49821.

59300-49850

Unavailable

5

SHIM PAD

59371-49000

Unavailable

6

HOLDER SET, CALIPERS | MODEL X This part replaces 59350-49100.

59350-49101

Unavailable

6

HOLDER SET, CALIPERS | MODEL Z

59350-49101

Unavailable

7

GUIDE, PAD | MODEL X This part replaces 59316-49000.

59316-49001

Unavailable

7

GUIDE, PAD | MODEL Z

59316-49001

Unavailable

8

AXLE, CALIPERS This part replaces 59305-49000.

59305-49001

$42.64

9

NUT

59317-49000

Unavailable

10

BOOT

59312-49000

Unavailable

11

SPRING

59315-49000

Unavailable

12

BREATHER This part replaces 59121-47050.

59121-34020

$13.35

13

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

14

COVER

59324-49000

Unavailable

15

BOLT | MODEL X

09103-10019

$2.63

15

BOLT (10X40) | MODEL Z This part replaces 01517-10408.

01550-10407

$4.68
