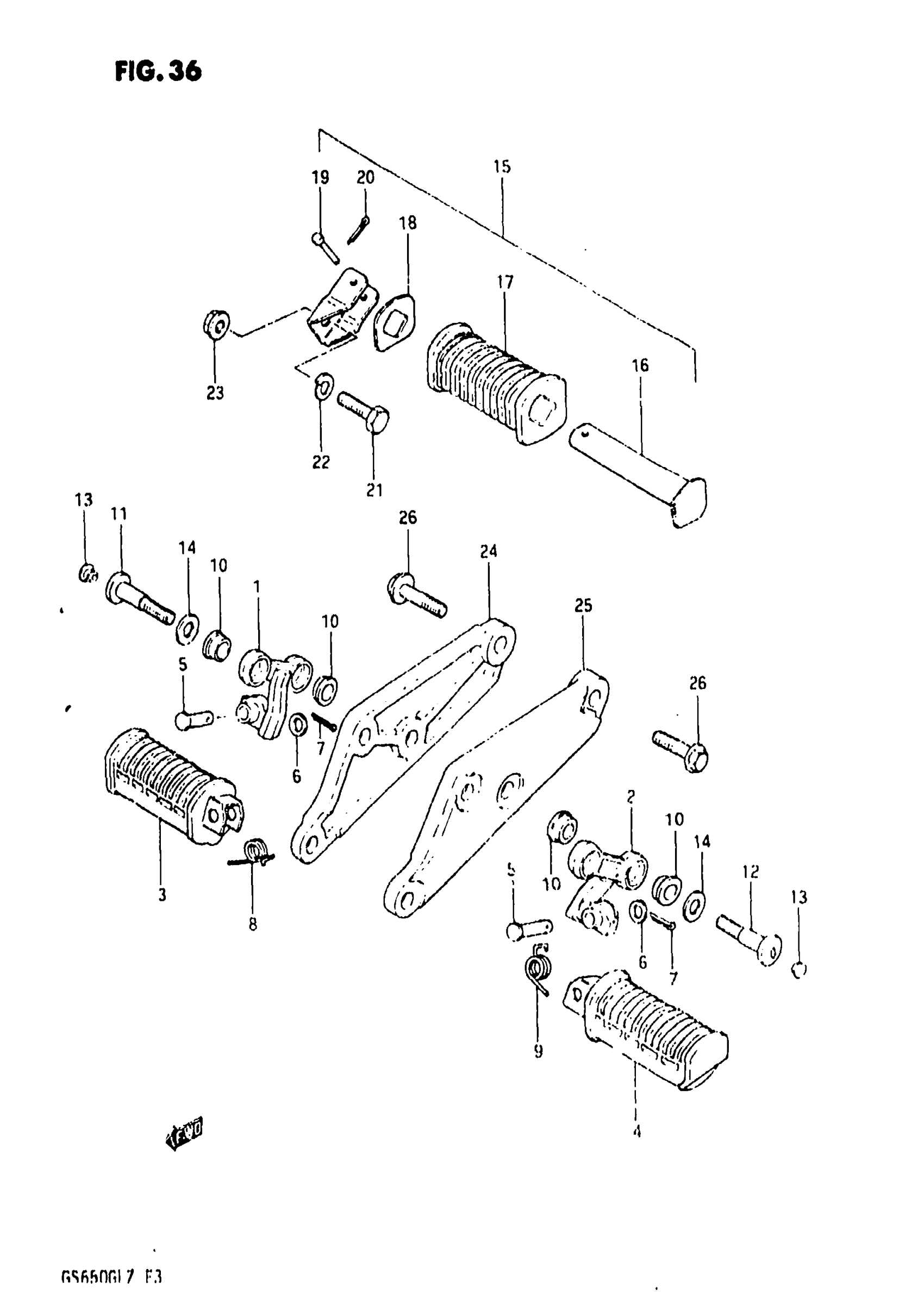

Suzuki GS650GL (1982) FOOTREST (MODEL Z) Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-34211

Unavailable

2

BAR, FOOTREST LH

43520-34211

Unavailable

3

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

$54.32

4

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

Unavailable

5

PIN

09200-08002

$2.05

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

8

SPRING, RH This part replaces 09448-19012.

09448-19014

Unavailable

9

SPRING, LH This part replaces 09448-19013.

09448-19015

Unavailable

10

BUSHING

09305-14004

Unavailable

11

BOLT, UPPER

09106-10004

Unavailable

12

BOLT, LOWER

09106-10005

Unavailable

13

CAP

43575-34500

$1.72

14

WASHER

09160-10035

$1.78

15

FOOTREST, PILLION RH

43600-34500

Unavailable

15

FOOTREST, PILLION LH | Includes Item(s) 16 - 16

43700-34500

Unavailable

16

BAR, RH

43610-49201

Unavailable

16

BAR, LH

43620-49201

Unavailable

17

RUBBER | Includes Item(s) 18 - 20

43612-49201

Unavailable

18

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

19

PIN

09200-06010

$1.72

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

21

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

24

BRACKET, MUFFLER RH

43811-34210

Unavailable

25

BRACKET, MUFFLER LH

43821-34210

Unavailable

26

BOLT (10X20) This part replaces 01527-10258.

01550-1025A

$3.05
