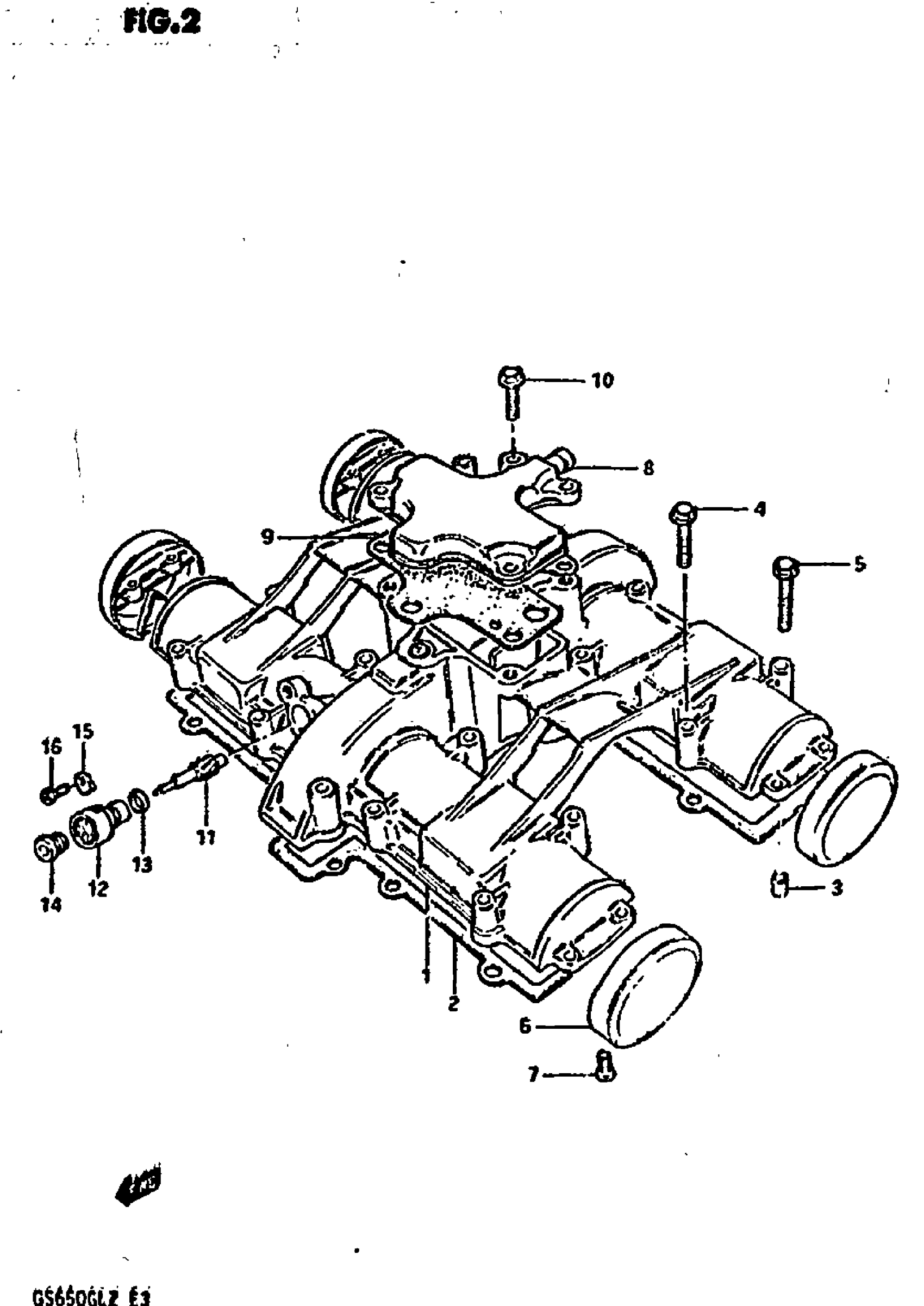

Suzuki GS650GL (1982) CYLINDER HEAD COVER (F.NO.104613-) Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-34210

Unavailable

2

GASKET,CYL HEAD This part replaces 11173-34210.

11173-34212

Unavailable

3

PIN

09206-08001

$1.77

4

BOLT This part replaces 01517-06408.

01550-06407

$2.73

5

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

6

CAP, SIDE

11174-34201

Unavailable

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

COVER, BREATHER This part replaces 11176-47012.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$16.90

10

BOLT This part replaces 01517-06208.

01550-06207

$2.31

11

GEAR TACHO DRVN This part replaces 26431-47002.

26431-47003

Unavailable

12

SLEEVE This part replaces 26441-45000.

26441-49000

$27.16

13

SEAL BAND

26451-45000

$4.63

14

OIL SEAL

09289-05002

$7.61

15

PLATE, GEAR SLEEVE

26449-33000

$4.92

16

SCREW

09128-05101

$1.41
