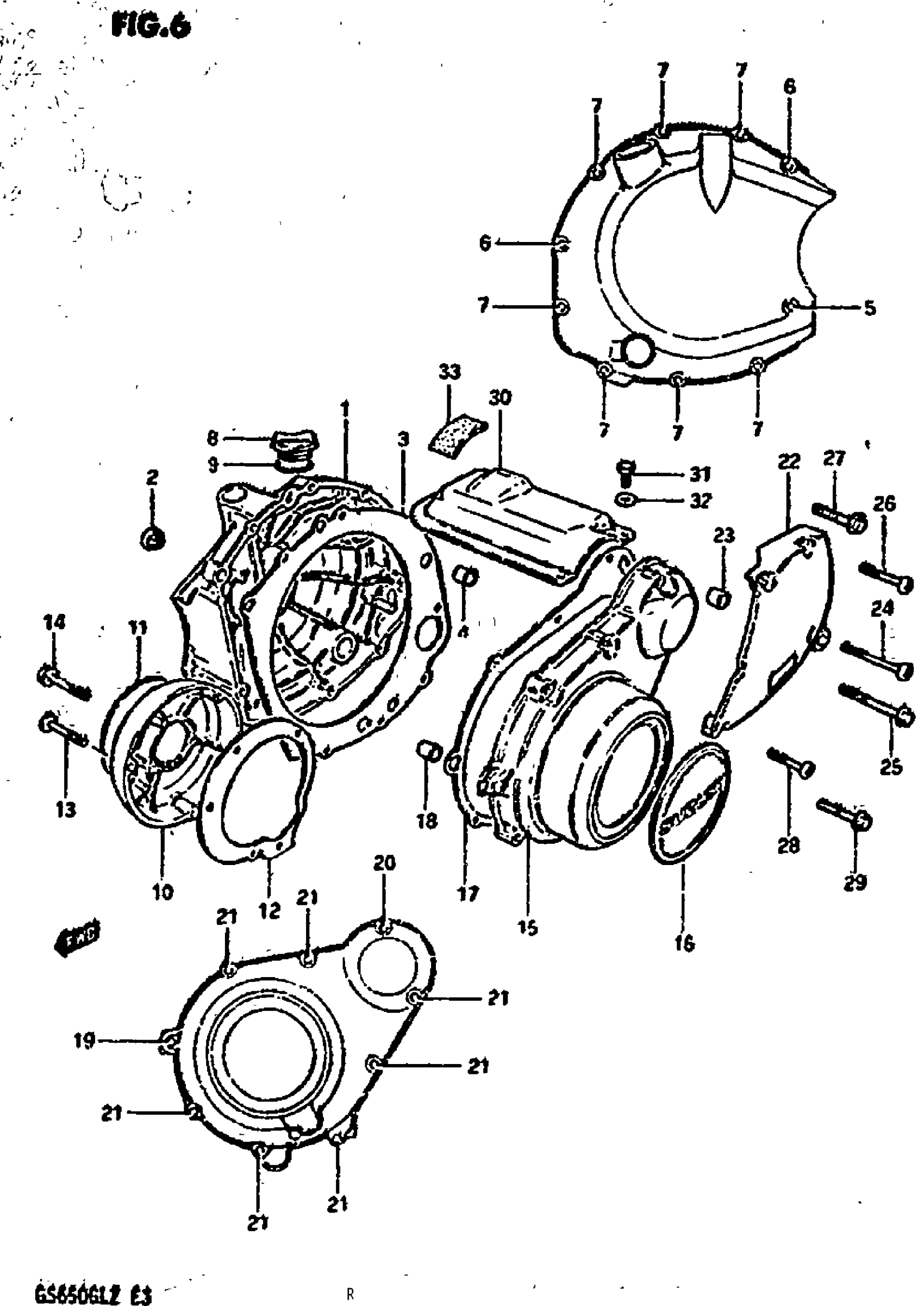

Suzuki GS650GL (1982) CRANKCASE COVER Diagram

#

Description
Price

22

COVER, SECONDARY DRIVE UNIT This part replaces 11360-34200.

11360-34201

Unavailable

22

COVER, SECONDARY DRIVE UNIT

11360-34201

Unavailable

23

PIN

04211-09129

$1.65

24

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

25

BOLT This part replaces 01547-06408.

01547-06407

$2.32

26

SCREW This part replaces 02112-06308.

02112-06307

$1.97

27

BOLT This part replaces 01547-06308.

01547-06307

$2.03

28

SCREW This part replaces 02112-06258.

02112-06257

$1.78

29

BOLT This part replaces 01547-06258.

01547-06257

$2.03

30

COVER, STARTER MOTOR

11382-34200

Unavailable

31

BOLT This part replaces 01104-05088.

01500-05087

$2.13

32

WASHER This part replaces 08322-21058.

08322-01057

$2.13

33

DAMPER

11362-34200

Unavailable

1

COVER, CLUTCH | Includes Item(s) 2 - 2

11340-34202

Unavailable

2

.LENS, OIL LEVEL CHECK | ~E.NO.136795

11971-45010

$16.76

2

LENS, OIL LEVEL(OD:30) | E.NO.136796~

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-34200.

11482-34210

Unavailable

4

PIN

04211-09129

$1.65

5

SCREW | Includes Item(s) 5 This part replaces 02112-06658.

02112-06657

$2.62

5

BOLT This part replaces 01547-06658.

01547-06657

$2.75

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6

BOLT This part replaces 01547-06408.

01547-06407

$2.32

7

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

BOLT This part replaces 01547-06308.

01547-06307

$2.03

8

CAP, OIL FILLER This part replaces 09259-30003.

09200-30810

$10.15

9

O RING (D:3.1,ID:26.4) This part replaces 09280-27002.

09280-26006

$2.76

10

COVER, CONTACT BREAKER | MODEL X This part replaces 11381-49201.

11381-49202

$54.04

10

COVER, CONTACT BREAKER | MODEL Z

11381-49202

$54.04

11

EMBLEM

68235-45200

Unavailable

12

GASKET

11491-49200

Unavailable

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

14

BOLT This part replaces 01544-05308.

01547-05307

$2.30

15

COVER, GENERATOR | MODEL X This part replaces 11351-34200.

11351-34310

Unavailable

15

COVER, GENERATOR | MODEL Z This part replaces 11351-34201.

11351-34310

Unavailable

16

EMBLEM

68233-45200

$18.50

17

GASKET,MAGNETO This part replaces 11483-34200.

11483-34210

Unavailable

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

19

BOLT This part replaces 01547-06458.

01547-06457

$2.32

20

SCREW This part replaces 02112-06352.

02112-06357

$1.78

20

BOLT This part replaces 01547-06358.

01547-06357

$2.03

21

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

21

BOLT This part replaces 01547-06308.

01547-06307

$2.03
