1982 Suzuki GS650E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

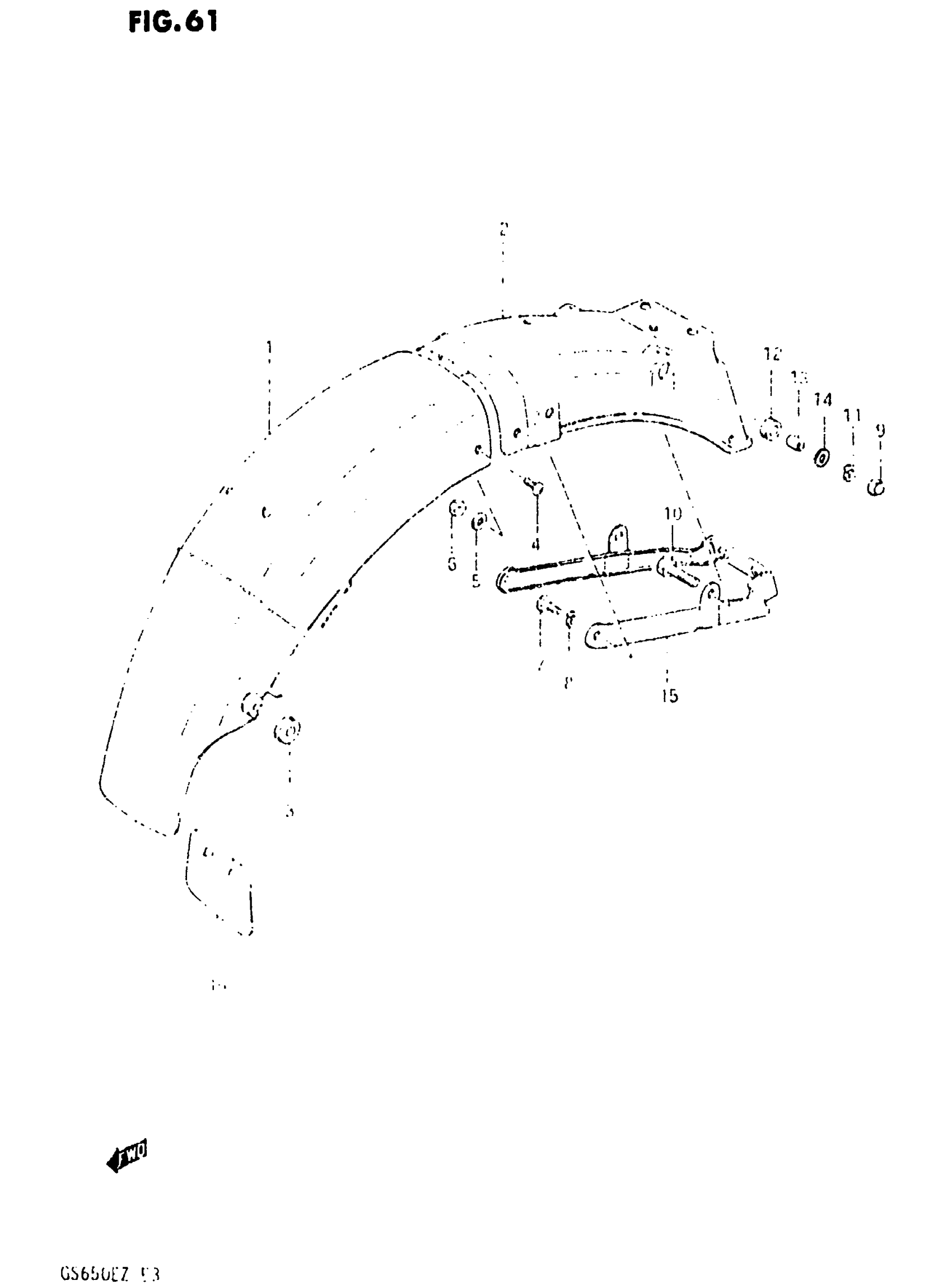

1982 Suzuki GS650E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-34500

1
Out of stock

2

BODY, REAR FENDER REAR

63113-34500

1
Out of stock

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

4

SCREW This part replaces 02142-05128.

02142-05127

2
Out of stock

5

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

2
Out of stock

6

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock

7

2

$2.10

In stock

8

2

$2.28

In stock

9

NUT This part replaces 08313-11088.

08313-10087

2
Out of stock

10

BOLT This part replaces 01107-08458.

01500-08453

2
Out of stock

11

2

$2.28

In stock

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

2
Out of stock

13

SPACER This part replaces 09180-08021.

09180-08188

2
Out of stock

14

WASHER (8.5X26X1.6) This part replaces 09160-08004.

09160-08134

2
Out of stock

15

REINFORCEMENT, REAR FENDER

63120-34500

1
Out of stock

16

MUD GUARD, REAR FENDER

63411-31900

1
Out of stock
