1982 Suzuki GS650E Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

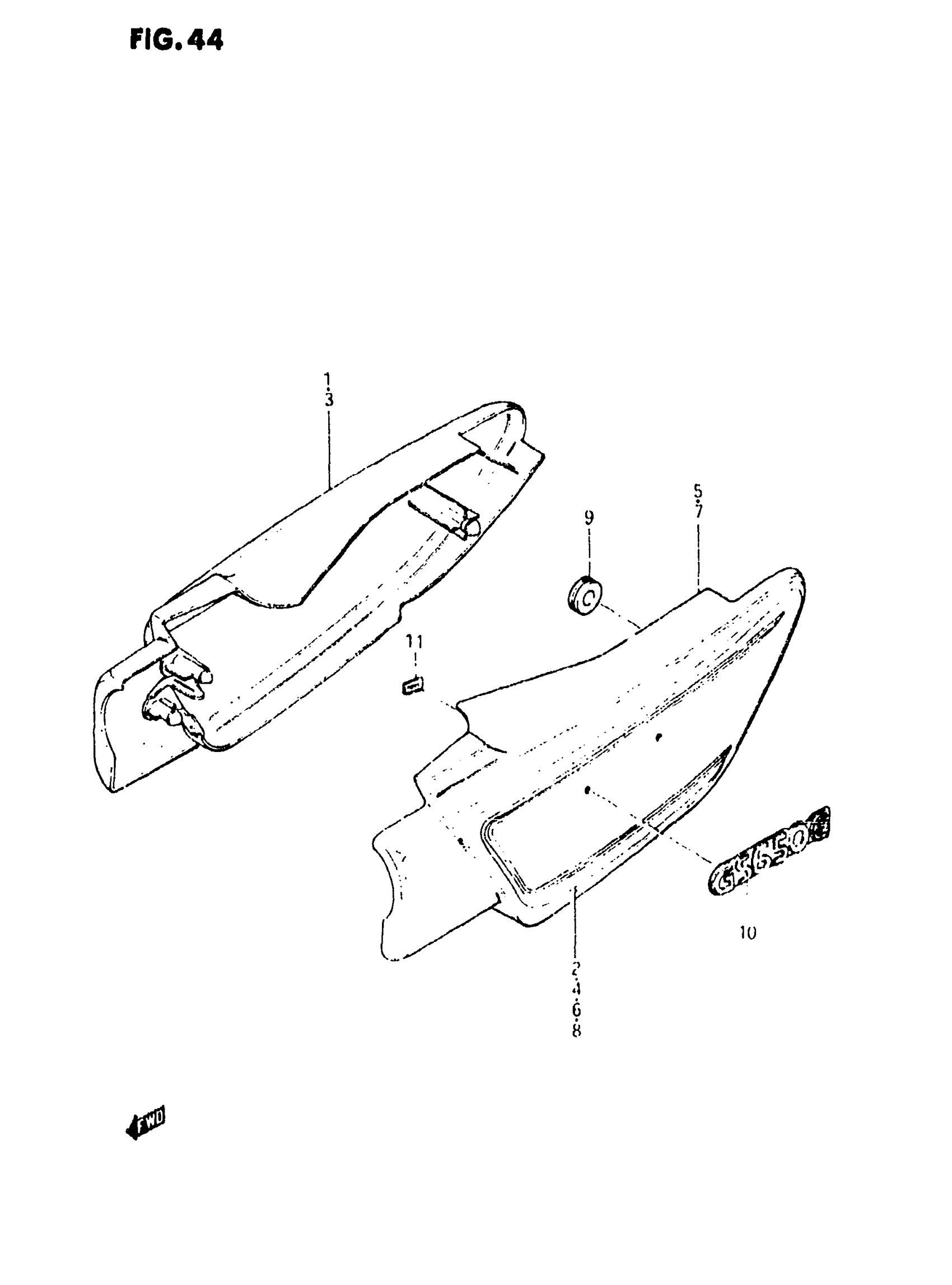

1982 Suzuki GS650E Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 47110-34500-13Z.

47110-34500

1
Out of stock

2

TAPE, RH

68136-34530-75F

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 47110-34500-03F.

47110-34500

1
Out of stock

4

TAPE, RH

68136-34530-81E

1
Out of stock

5

COVER,FRAME LH This part replaces 47210-34500-13Z.

47210-34500

1
Out of stock

6

TAPE, LH

68146-34530-75F

1
Out of stock

7

COVER,FRAME LH This part replaces 47210-34500-03F.

47210-34500

1
Out of stock

8

TAPE, LH

68146-34530-81E

1
Out of stock

9

CUSHION

09320-08018

6
Out of stock

10

EMBLEM

68131-34520

2
Out of stock

11

NUT

09148-03002

4
Out of stock
← Frame Cover Rear Fender →
