1982 Suzuki GS650E Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

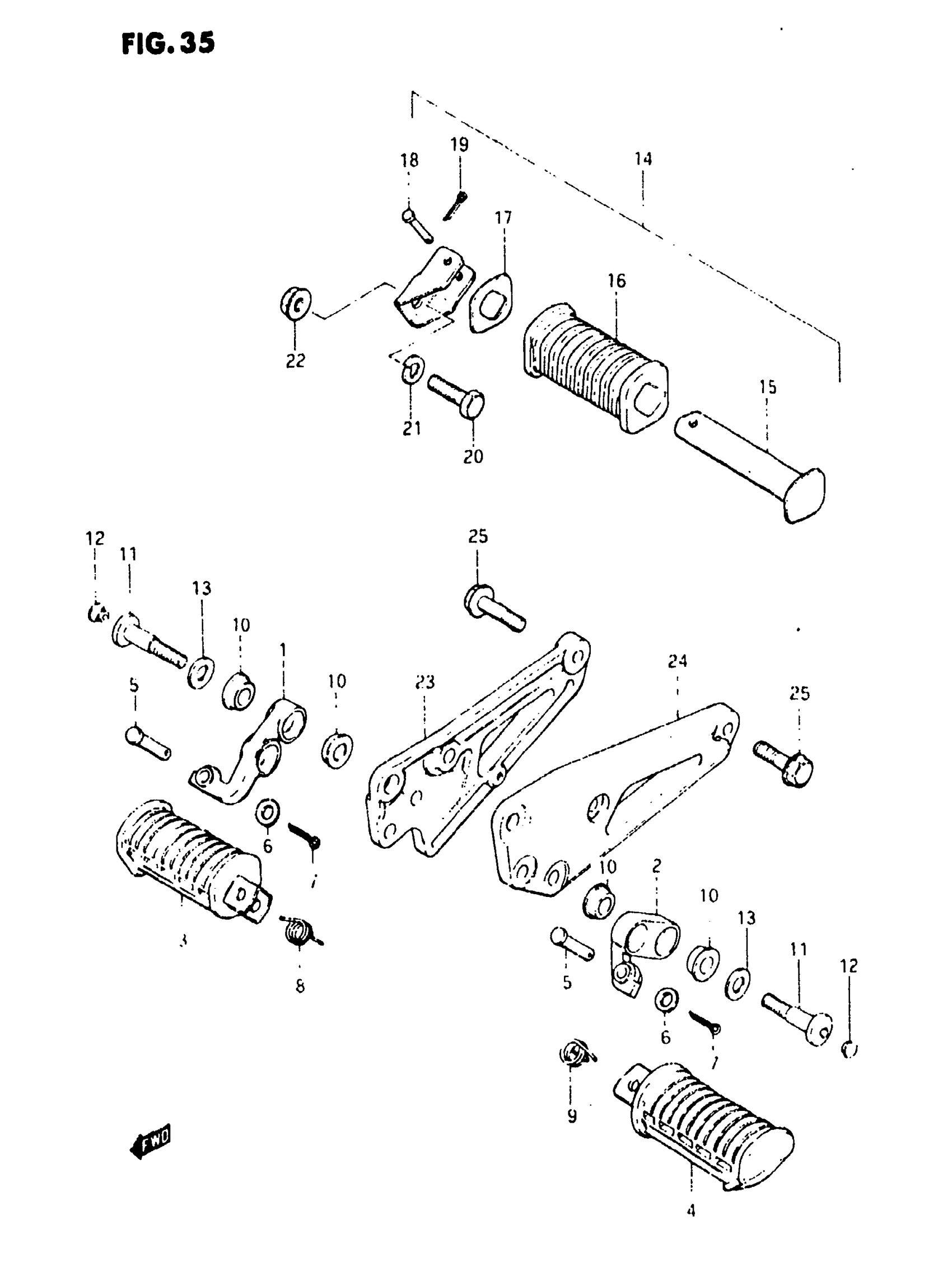

1982 Suzuki GS650E Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FOOTREST RH

43511-34510

1
Out of stock

2

BAR, FOOTREST LH

43521-34510

1
Out of stock

3

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

1
Out of stock

4

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

1
Out of stock

5

PIN

09200-08002

2
Out of stock

6

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

8

SPRING, RH This part replaces 09448-19012.

09448-19014

1
Out of stock

9

SPRING, LH This part replaces 09448-19013.

09448-19015

1
Out of stock

10

BUSHING

09305-14004

8
Out of stock

11

BOLT

09106-10004

4
Out of stock

12

CAP

43575-34500

4
Out of stock

13

WASHER

09160-10035

4
Out of stock

14

FOOTREST, PILLION RH

43600-34500

1
Out of stock

14

FOOTREST, PILLION LH | Includes Item(s) 15 - 19

43700-34500

1
Out of stock

15

BAR, RH

43610-49201

1
Out of stock

15

BAR, LH

43620-49201

1
Out of stock

16

RUBBER

43612-49201

2
Out of stock

17

WASHER This part replaces 43631-49201.

43631-45001

2
Out of stock

18

PIN

09200-06010

2
Out of stock

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

20

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

2
Out of stock

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

22

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

2
Out of stock

23

BRACKET, MUFFLER RH

43811-34510

1
Out of stock

24

BRACKET, MUFFLER LH

43821-34510

1
Out of stock

25

BOLT, RH This part replaces 01527-10308.

01550-10307

2
Out of stock
