Partiron

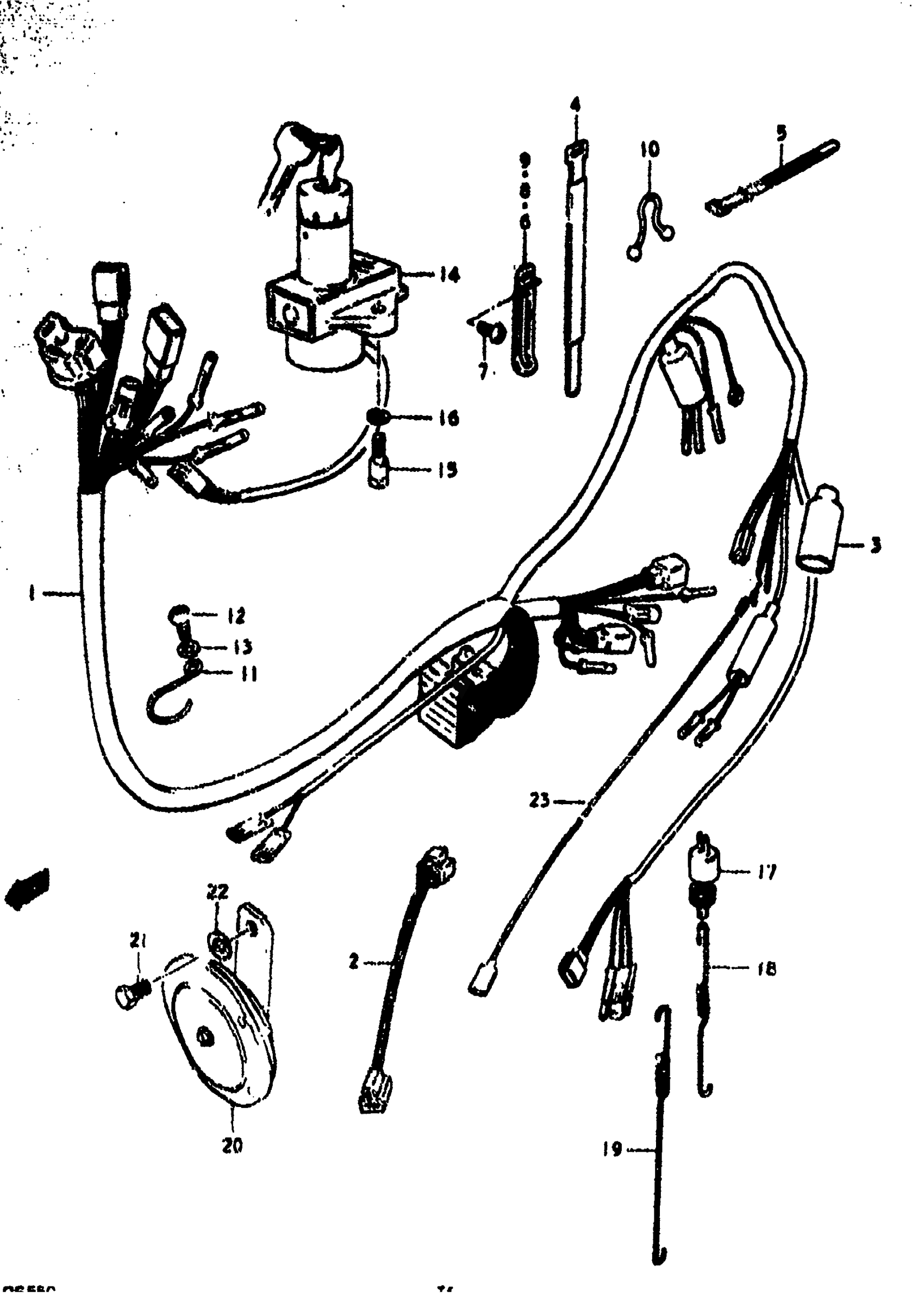

Suzuki GS550E (1979) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 36610-47000.

36610-47001

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC This part replaces 36610-47002.

36610-47003

Unavailable

1

WIRING HARNESS | N&EN

36610-47010

Unavailable

2

LEAD WIRE | B; L:100, FOR 36610-47000

36852-47990

Unavailable

3

BOOT | B,C&EC,N&EN This part replaces 36618-28000.

36618-30000

$9.00

4

CLAMP | B,C&EC,N&EN This part replaces 09407-18301.

09407-18302

$2.28

5

CLAMP | C&EC,N&EN

09407-12402

$3.04

6

CLAMP(L:80) | B This part replaces 09404-06415.

09404-06036

$1.74

7

CLAMP(L:80) | C&EC,N&EN This part replaces 09404-06415.

09404-06036

$1.74

8

SCREW | B,C&EC,N&EN This part replaces 02112-06108.

02112-06107

$1.49

9

CLAMP(L:80) | B,C&EC,N&EN This part replaces 09404-06414.

09404-06036

$1.74

10

CLAMP | B,C&EC,N&EN This part replaces 09404-06402.

09404-06039

$1.74

11

CLIP | B,C&EC,N&EN This part replaces 09408-00011.

09408-00020

Unavailable

12

CLIP, WIRING HARNESS | B,C&EC,N&EN This part replaces 36619-44000.

36619-44002

Unavailable

13

SCREW | B,C&EC,N&EN This part replaces 02112-06128.

02112-06127

$1.84

14

SWITCH ASSY, IGNITION | B,C&EC,N&EN; Includes Item(s) 15 - 17 This part replaces 37100-47010.

37100-45301

Unavailable

15

BOLT | B,C&EC,N&EN This part replaces 37152-47010.

07130-0616B

$2.39

16

BOLT | B,C&EC,N&EN This part replaces 37152-47010.

07130-0616B

$2.39

17

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13

18

SWITCH, BRAKE LAMP | B,C&EC,N&EN

37610-53011

$30.75

19

SPRING | B,C&EC,N&EN; FOR SPOKE WHEELS This part replaces 09443-06018.

09443-06018-XC0

Unavailable

20

SPRING | C&EC,N&EN; FOR CAST WHEELS This part replaces 09443-06021.

09443-06045-XC0

Unavailable

21

HORN ASSY | B,C&EC,N&EN This part replaces 38500-64130.

38502-49001

Unavailable

22

BOLT | B,C&EC,N&EN This part replaces 01107-08128.

01500-08127

$2.62

23

WASHER | B,C&EC,N&EN This part replaces 08322-11088.

08322-01087

$2.13

24

LEAD WIRE, PRESSURE SWITCH | B,C&EC,N&EN This part replaces 36853-45000.

36853-45001

Unavailable
