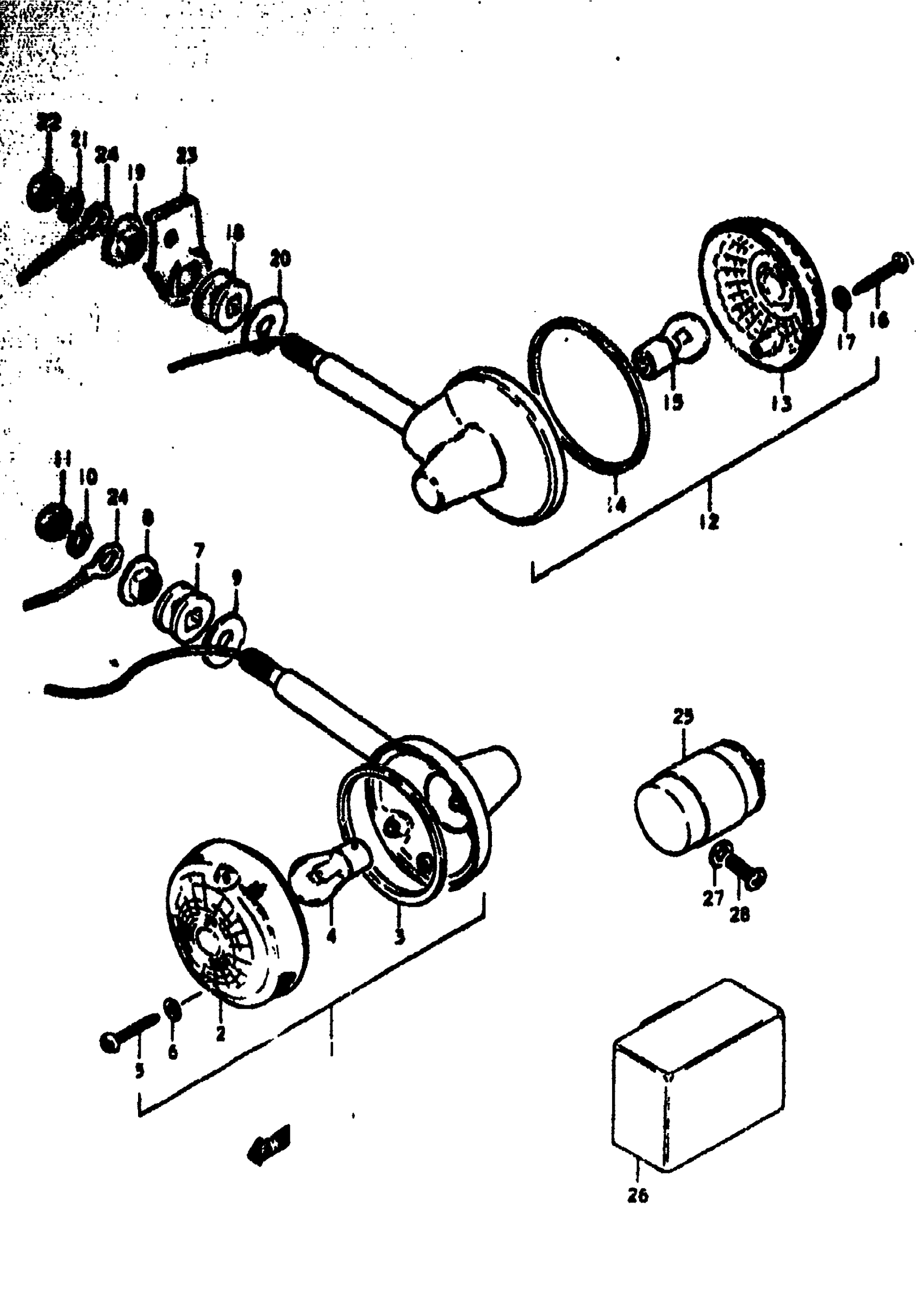

Suzuki GS550E (1979) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TR | B This part replaces 35601-47600.

35601-39370-999

Unavailable

1

LAMP ASSY,FR TR | C&EC,N&EN; Includes Item(s) 2 - 6 This part replaces 35601-44030.

35601-39370-999

Unavailable

2

LENS | B,C&EC,N&EN

35612-28620

$8.98

3

GASKET | B,C&EC,N&EN

35613-28620

$4.55

4

BULB | B,C&EC,N&EN; 12V, 35K

09471-12006

$3.98

5

SCREW | B This part replaces 03211-04208.

03211-04207

$1.49

5

SCREW | C&EC,N&EN This part replaces 35623-47610.

03211-04207

$1.49

6

GASKET | B,C&EC,N&EN

35627-43010

$2.28

7

RR TURN SIG CUS | B,C&EC,N&EN This part replaces 35690-32200.

35690-32201

$6.37

8

SPACER | B,C&EC,N&EN

35695-32200

Unavailable

9

WASHER | B,C&EC,N&EN This part replaces 35629-44000.

09160-10062

Unavailable

10

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

11

NUT | B,C&EC,N&EN This part replaces 08310-12108.

08310-00107

$2.19

12

LAMP RR TURN SI | B This part replaces 35603-47600.

35603-32620-999

Unavailable

12

LAMP RR TURN SI | C&EC,N&EN; Includes Item(s) 13 - 17 This part replaces 35603-44030.

35603-32620-999

Unavailable

13

LENS | B,C&EC,N&EN

35612-28620

$8.98

14

GASKET | B,C&EC,N&EN

35613-28620

$4.55

15

BULB | B,C&EC,N&EN; 12V, 25W

09471-12006

$3.98

16

SCREW | B This part replaces 03211-04208.

03211-04207

$1.49

16

SCREW | C&EC,N&EN This part replaces 35623-47610.

03211-04207

$1.49

17

GASKET | B,C&EC,N&EN

35627-43010

$2.28

18

RR TURN SIG CUS | B,C&EC,N&EN This part replaces 35690-32200.

35690-32201

$6.37

19

SPACER | B,C&EC,N&EN

35695-32200

Unavailable

20

WASHER | B,C&EC,N&EN This part replaces 35629-44000.

09160-10062

Unavailable

21

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

22

NUT | B,C&EC,N&EN This part replaces 08310-12108.

08310-00107

$2.19

23

BRACKET, RH | B,C&EC,N&EN

41580-45000-019

Unavailable

23

BRACKET, LH | B,C&EC,N&EN

41590-45000-019

Unavailable

24

LEAD WIRE, FRONT GROUND | B,C&EC,N&EN This part replaces 36862-45000.

36660-33000

$4.52

25

RELAY ASSY, TURNSIGNAL | B This part replaces 38610-36610.

38610-31X50

$80.15

26

RELAY ASSY, TURNSIGNAL | C&EC This part replaces 38610-45030.

38610-31X50

$80.15

26

RELAY ASSY, TURNSIGNAL | N&EN This part replaces 38610-45031.

38610-31X50

$80.15

27

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

28

SCREW | B This part replaces 02112-06168.

02112-06167

$1.49
