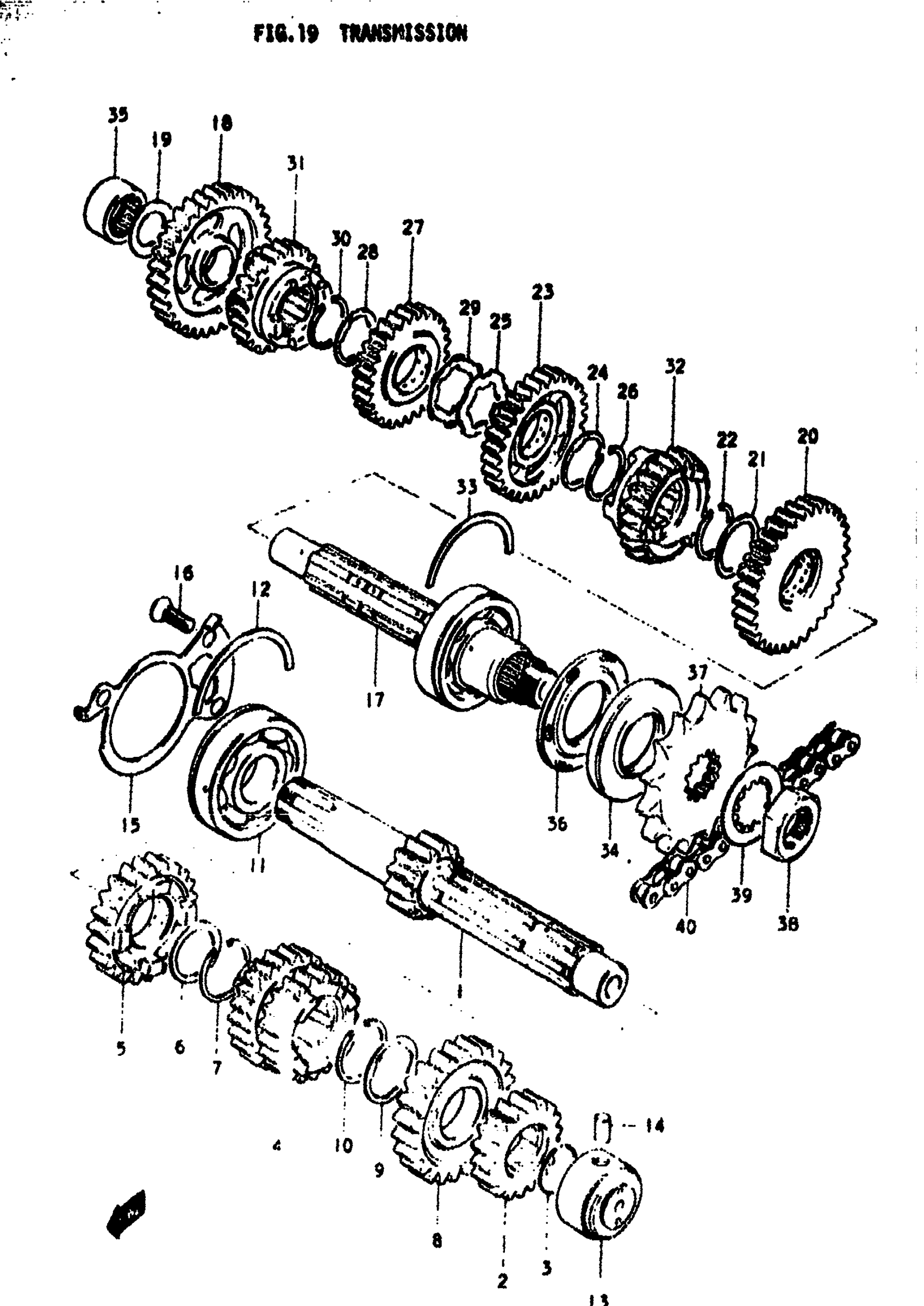

Suzuki GS550E (1979) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | B,C&EC,N&EN; NT:12

24121-47001

Unavailable

2

GEAR, 2ND DRIVE | B,C&EC,N&EN; NT:18

24221-47000

Unavailable

3

CIRCLIP | B,C&EC,N&EN

09380-25006

Unavailable

4

GEAR, 3RD DRIVE | B,C&EC,N&EN; NT:21/23

24231-47000

Unavailable

5

GEAR, 5TH DRIVE | B,C&EC,N&EN; NT:22

24250-47000

Unavailable

6

WASHER, 5TH DRIVE | B,C&EC,N&EN This part replaces 08211-25341.

09181-25167

$3.12

7

CIRCLIP | B,C&EC,N&EN

09380-25010

$2.91

8

GEAR, 6TH DRIVE | B,C&EC,N&EN; NT:23

24261-47000

Unavailable

9

WASHER LOCK (25.1X31X1.0) | B,C&EC,N&EN

09167-25012

$3.70

10

CIRCLIP | B,C&EC,N&EN

09380-25010

$2.91

11

BEARING, LH | B,C&EC,N&EN This part replaces 09262-25051.

09262-25105

$68.10

12

C RING | B,C&EC,N&EN This part replaces 09390-62006.

09390-62012

$7.31

13

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 09263-20029.

09263-20030

Unavailable

14

PIN | B,C&EC,N&EN

04221-07129

$1.86

15

HOLDER, BEARING | B,C&EC,N&EN

24741-44000

Unavailable

16

SCREW | B,C&EC,N&EN This part replaces 02122-06168.

02122-06167

$1.49

17

DRIVESHAFT | B,C&EC,N&EN This part replaces 24100-44810.

24100-44811

Unavailable

18

GEAR, 1ST DRIVEN | B,C&EC,N&EN; NT:32

24310-47000

Unavailable

19

WASHER | B,C&EC,N&EN

08211-20341

$2.80

20

GEAR, 2ND DRIVEN | B,C&EC; NT: 32 This part replaces 24320-44001.

24320-44002

Unavailable

20

GEAR, 2ND DRIVEN | N&EN; NT: 32

24320-44002

Unavailable

21

WASHER | B,C&EC,N&EN

08211-25321

$3.27

22

CIRCLIP | B,C&EC,N&EN

09380-25010

$2.91

23

GEAR, 3RD DRIVEN | B,C&EC,N&EN; NT:29

24330-47000

Unavailable

24

WASHER LOCK (25.1X31X1.0) | B,C&EC,N&EN

09167-25012

$3.70

25

WASHER LOCK (25.1X31X1.0) | B,C&EC,N&EN

09167-25012

$3.70

26

CIRCLIP | B,C&EC,N&EN

09380-25010

$2.91

27

GEAR, 4TH DRIVEN | B,C&EC,N&EN; NT:27

24340-47000

Unavailable

28

WASHER LOCK (25.1X31X1.0) | B,C&EC,N&EN

09167-25012

$3.70

29

LOCK WASHER | B,C&EC,N&EN

09169-25001

$2.70

30

CIRCLIP | B,C&EC,N&EN

09380-25010

$2.91

31

GEAR, 5TH DRIVEN | B,C&EC,N&EN; NT:22

24351-47001

Unavailable

32

GEAR, 6TH DRIVEN (NT:22) | B,C&EC,N&EN; NT:22 This part replaces 24361-47000.

24361-47001

Unavailable

33

C RING | B,C&EC,N&EN This part replaces 09390-62006.

09390-62012

$7.31

34

OIL SEAL (32x62x70-1) | B,C&EC,N&EN; 32x62x7 This part replaces 09283-32014.

09283-32015

$15.74

35

BEARING, RH (20X34X17) | B,C&EC,N&EN This part replaces 09263-20028.

09263-20027

Unavailable

36

OIL SEAL | B,C&EC,N&EN

09282-32002

$11.65

37

SPROCKET, ENG 1 | B,C&EC,N&EN; NT:15,#530 This part replaces 27511-47000.

27511-47B00

$40.28

38

NUT | B,C&EC,N&EN

09140-20009

Unavailable

39

WASHER (25.3X41.6X1) | B,C&EC,N&EN This part replaces 09167-25011.

09167-25019

$2.19

40

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN; 110l This part replaces 27600-47010.

27600-17C20-110

Unavailable
