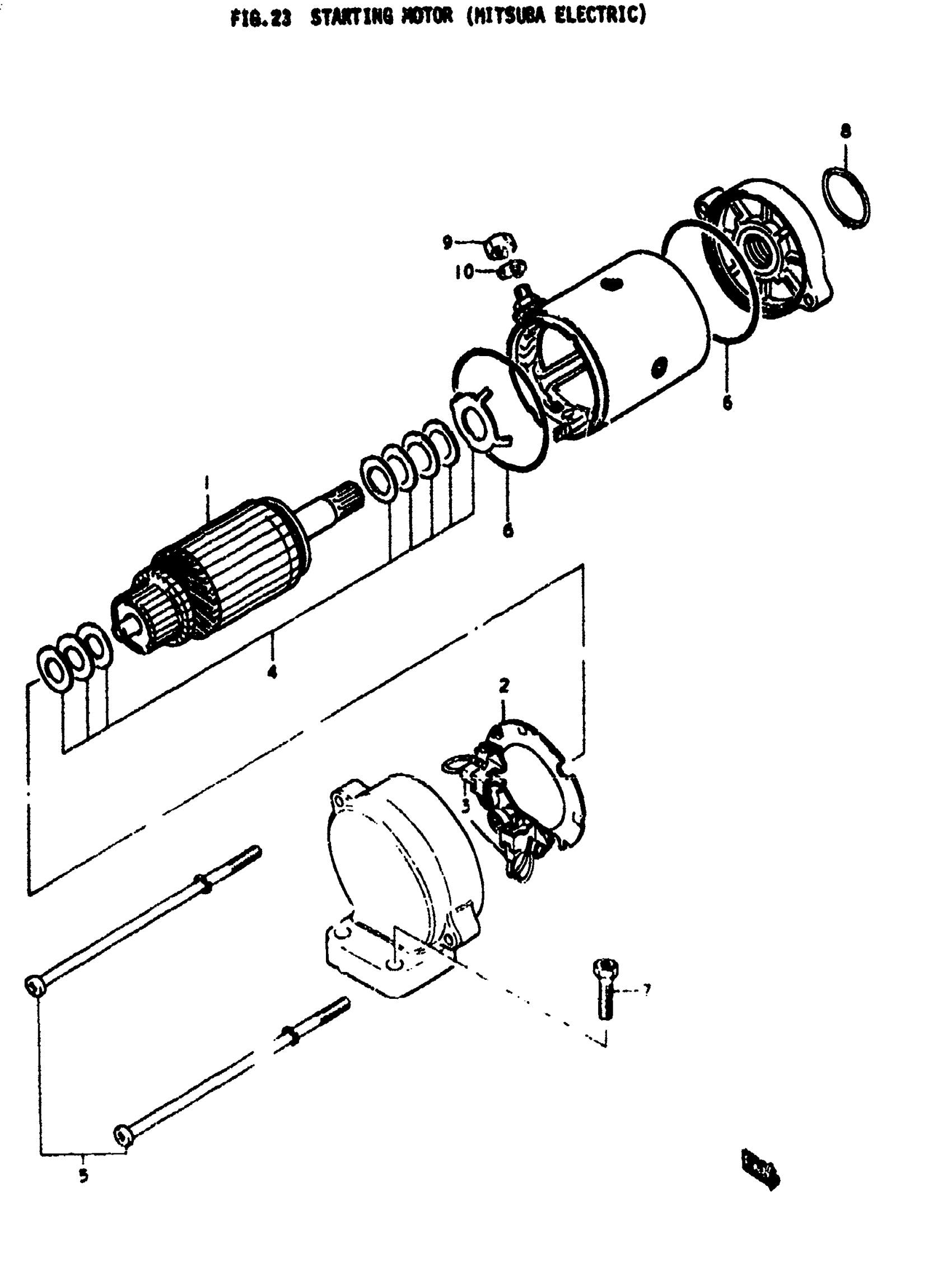

Suzuki GS550E (1979) STARTING MOTOR (MITSUBA ELECTRIC) Diagram

#

Description

Price

0

MOTOR ASSY, STARTING | B,C&EC,N&EN; MITSUBA; Includes Item(s) 1 - 6 This part replaces 31100-45040.

31100-49050

Unavailable

1

ARMATURE | B,C&EC,N&EN

31311-31040

Unavailable

2

HOLDER, BRUSH | B,C&EC,N&EN

31173-31040

Unavailable

3

BRUSH SET | B,C&EC,N&EN; 2PCS/SET

31131-31040

Unavailable

4

SHIM SET | B,C&EC,N&EN

31361-31040

Unavailable

5

BOLT | B,C&EC,N&EN This part replaces 31281-31040.

31280-26D00

$20.45

6

O RING | B,C&EC,N&EN

31264-31040

Unavailable

7

BOLT, STARTING MOTOR | B,C&EC,N&EN This part replaces 09128-06012.

09103-06212

$2.47

8

.O-RING (D:3,ID:24.5) | B,C&EC,N&EN This part replaces 09280-24001.

09280-24003

$1.55

9

.NUT | B,C&EC,N&EN This part replaces 08310-22068.

08310-00067

$2.13

10

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21068.

08321-01067

$2.13
