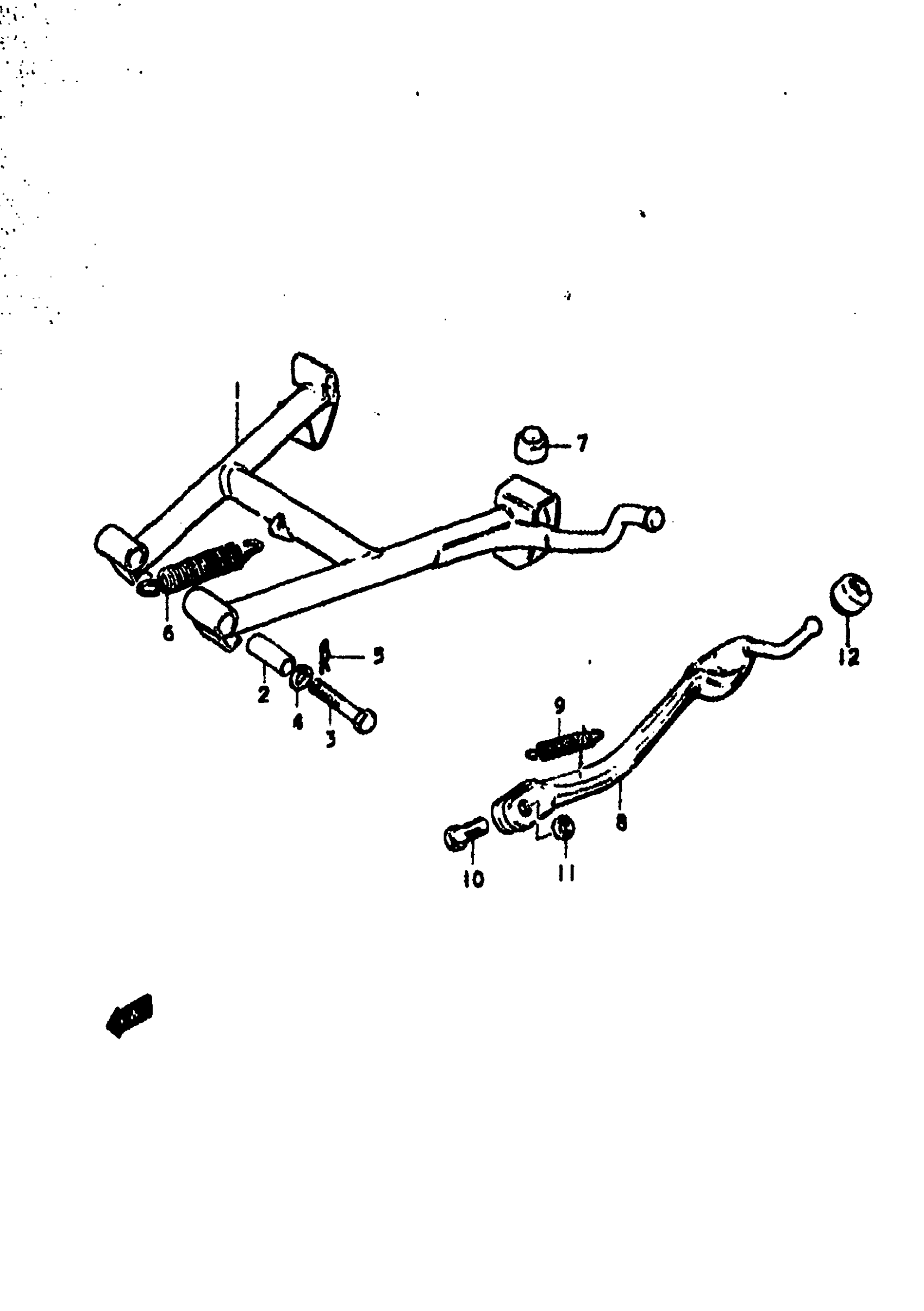

Suzuki GS550E (1979) STAND Diagram

#

Description
Price

1

STAND, CENTER | B,C&EC

42100-47000

Unavailable

1

STAND, CENTER | N&EN This part replaces 42100-47001.

42100-34200

Unavailable

2

SPACER | B,C&EC,N&EN

09180-10040

$2.56

3

BOLT, 10 X 65 | B,C&EC,N&EN This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP | B,C&EC,N&EN This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING, CENTER | B,C&EC This part replaces 09443-18002.

09443-18006-XC0

$7.82

6

SPRING, CENTER | N&EN This part replaces 09443-18003.

09443-18006-XC0

$7.82

7

CUSHION | B,C&EC,N&EN

09321-10001

$2.61

8

NO DESCRIPTION AVAILABLE | B,C&EC,N&EN This part replaces 42310-47000.

42310-47001

Unavailable

9

SPRING | B,C&EC,N&EN This part replaces 09443-17005.

09443-17008-XC0

$6.98

10

BOLT | B,C&EC,N&EN

09100-10067

$2.61

11

NUT | B,C&EC,N&EN This part replaces 08310-22108.

08310-00107

$2.19

12

CUSHION | B,C&EC,N&EN

09320-07001

$2.92
