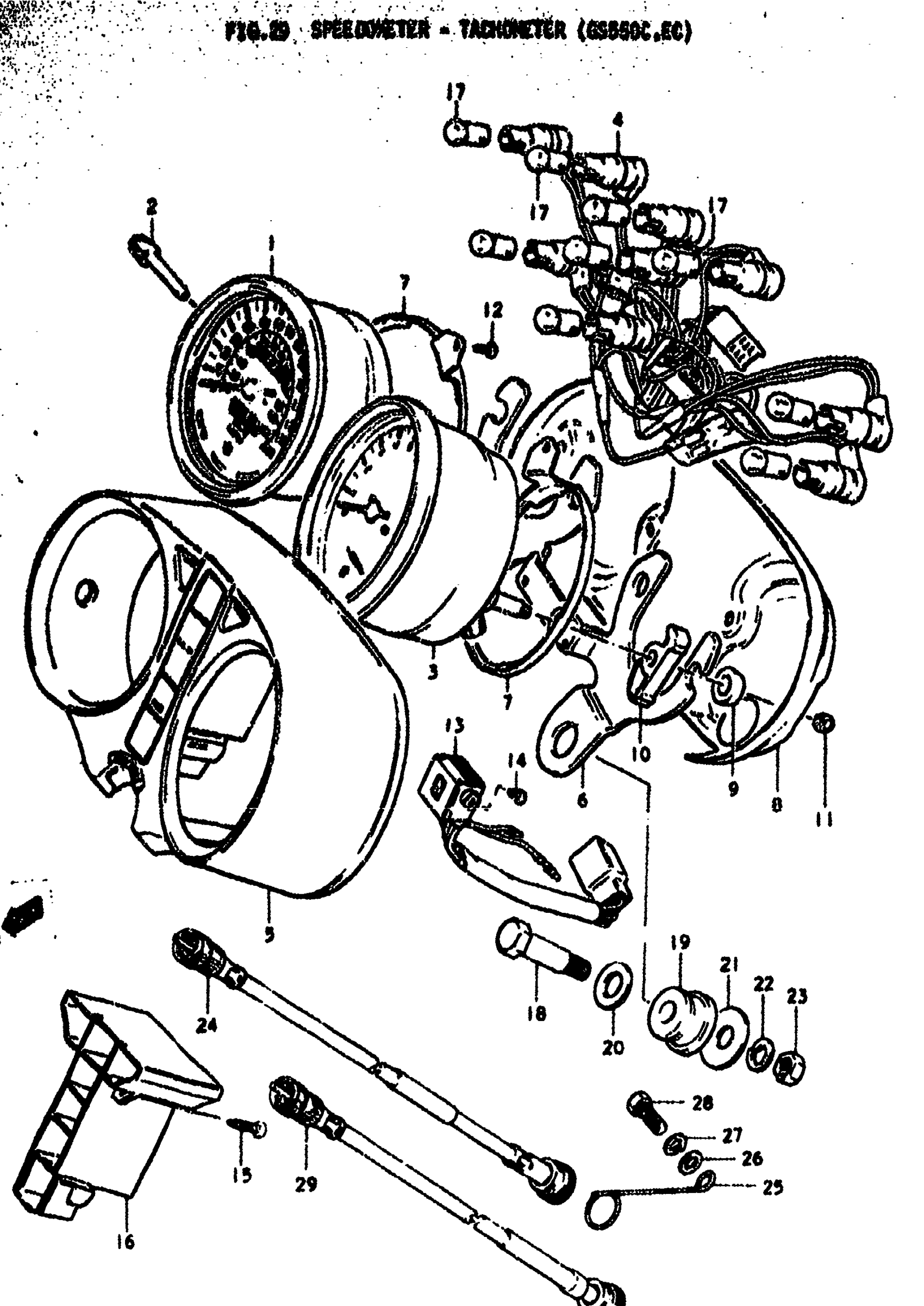

Suzuki GS550E (1979) SPEEDOMETER - TACHOMETER (GS650C Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | C,EC; Includes Item(s) 1 - 17 This part replaces 34100-47030.

34100-47034

Unavailable

1

NO DESCRIPTION AVAILABLE | C,EC This part replaces 34110-45030.

34110-47130

Unavailable

2

KNOB | C,EC

34980-45020

$3.77

3

TACHOMETER | C,EC

34210-47602

Unavailable

4

SOCKET | C,EC

34173-45620

Unavailable

5

NO DESCRIPTION AVAILABLE | C,EC This part replaces 34100-47820.

34150-47820

Unavailable

6

BRACKET | C,EC

34951-47020

Unavailable

7

HOLDER, METER | C,EC

34953-45020

Unavailable

8

PLATE, UNDER | C,EC

34961-45020

Unavailable

9

CUSHION (A) | C,EC

34956-45020

Unavailable

10

CUSHION (B) | C,EC

34955-45020

Unavailable

11

NUT | C,EC This part replaces 08313-11057.

08313-1005A

$1.93

12

SCREW | C,EC This part replaces 02111-04087.

02112-04087

$1.49

13

INDICATOR, GEAR POSITION | C,EC

36450-47620

Unavailable

14

SCREW | C,EC

36491-47020

Unavailable

15

SCREW | C,EC This part replaces 36492-47020.

03211-0412A

$2.23

16

PIPE | C,EC

36382-47020

Unavailable

17

BULB | C,EC; 12V, 4W

09471-12001

$1.65

18

BOLT | C,EC

09111-08031

Unavailable

19

CUSHION | C,EC This part replaces 34956-31000.

34956-31001

$4.37

20

WASHER | C,EC This part replaces 08322-21108.

08322-01107

$2.15

21

WASHER, EXHAUST SUPPORT | C,EC This part replaces 09160-08002.

09160-08135

$2.35

22

.LOCK WASHER | C,EC This part replaces 08321-21088.

08321-01087

$2.13

23

NUT | C,EC This part replaces 08310-12088.

08310-00087

$2.13

24

CABLE SPEEDOMET | C,EC This part replaces 34910-16432.

34910-44401

$26.05

25

CLAMP | C,EC

34938-37000

$3.73

26

.WASHER | C,EC This part replaces 08322-11068.

08322-0106B

$2.26

27

LOCK WASHER | C,EC This part replaces 08321-21068.

08321-01067

$2.13

28

BOLT, CANISTER | C,EC This part replaces 01107-06168.

01500-06167

$1.97

29

CABLE ASSY,TACH | C,EC This part replaces 34940-47030.

34940-47034

$23.49
