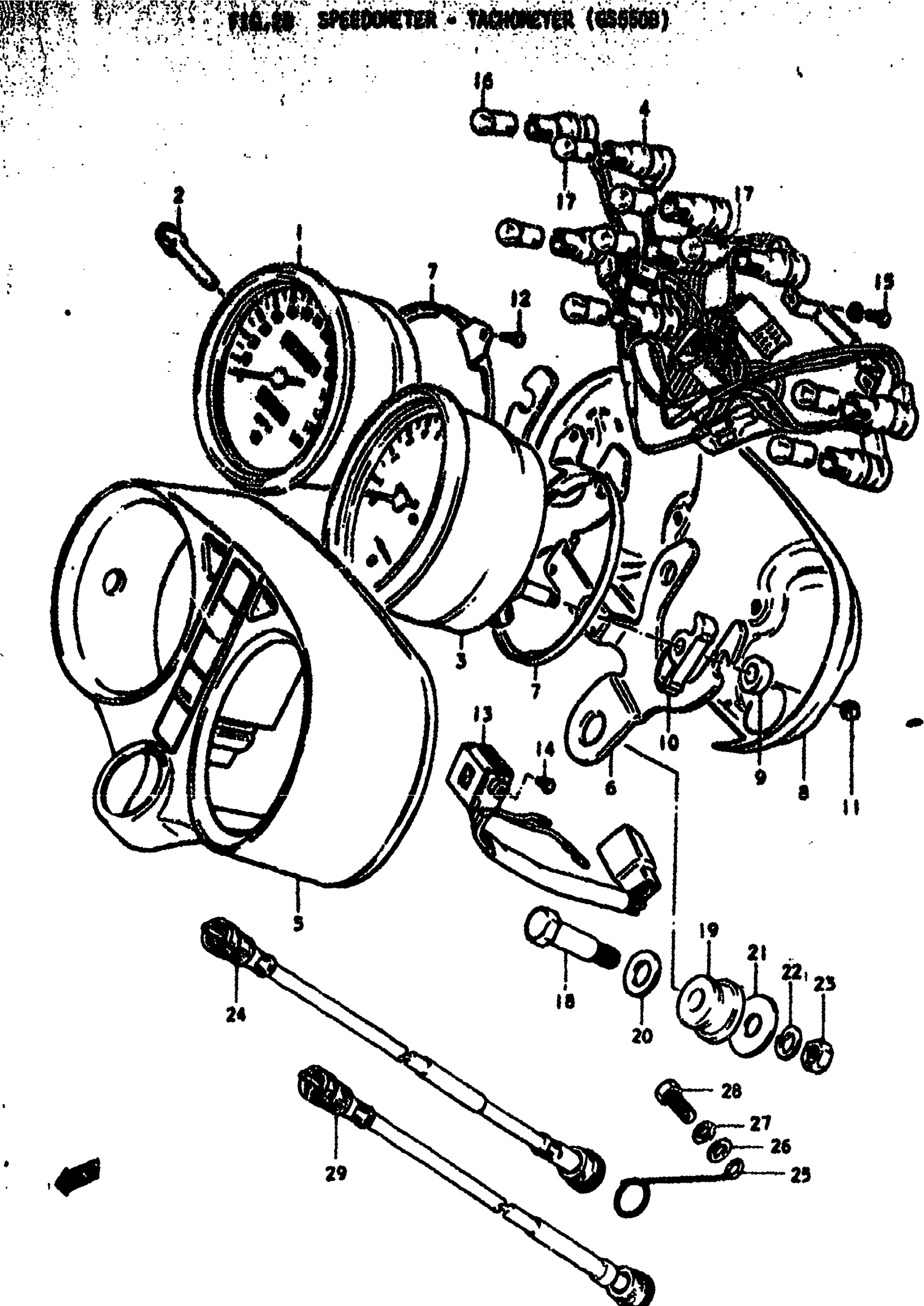

Suzuki GS550E (1979) SPEEDOMETER - TACHOMETER (G55508) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 17 This part replaces 34100-47601.

34100-47602

Unavailable

1

SPEEDOMETER

34110-45611

Unavailable

2

KNOB

34980-45020

$3.77

3

NO DESCRIPTION AVAILABLE This part replaces 34210-47601.

34210-45082

Unavailable

4

SOCKET

34170-47600

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 34051-47600.

34150-47820

Unavailable

6

BRACKET

34951-47020

Unavailable

7

BRACKET, WATER

34953-45020

Unavailable

8

PLATE, UNDER

34961-45020

Unavailable

9

CUSHION (A)

34956-45020

Unavailable

10

CUSHION (B)

34955-45020

Unavailable

11

NUT This part replaces 08313-11057.

08313-1005A

$1.93

12

SCREW This part replaces 02111-04087.

02112-04087

$1.49

13

INDICATOR, GEAR POSITION | FROM 34995-47020 This part replaces 36450-47020.

36450-44020

Unavailable

14

SCREW

03211-03068

Unavailable

15

SCREW | FROM 34183-47020 This part replaces 36492-47020.

03211-0412A

$2.23

16

BULB | 12V, 3.4W

09471-12001

$1.65

17

BULB | 12V, 1.7W

09471-12004

$2.69

18

BOLT

09111-08031

Unavailable

19

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT This part replaces 08312-11088.

08310-00087

$2.13

24

CABLE SPEEDOMET This part replaces 34910-16432.

34910-44401

$26.05

25

CLAMP

34938-37000

$3.73

26

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

BOLT This part replaces 01112-06188.

09100-06064

$1.61

29

CABLE ASSY,TACH This part replaces 34940-47030.

34940-47034

$23.49
