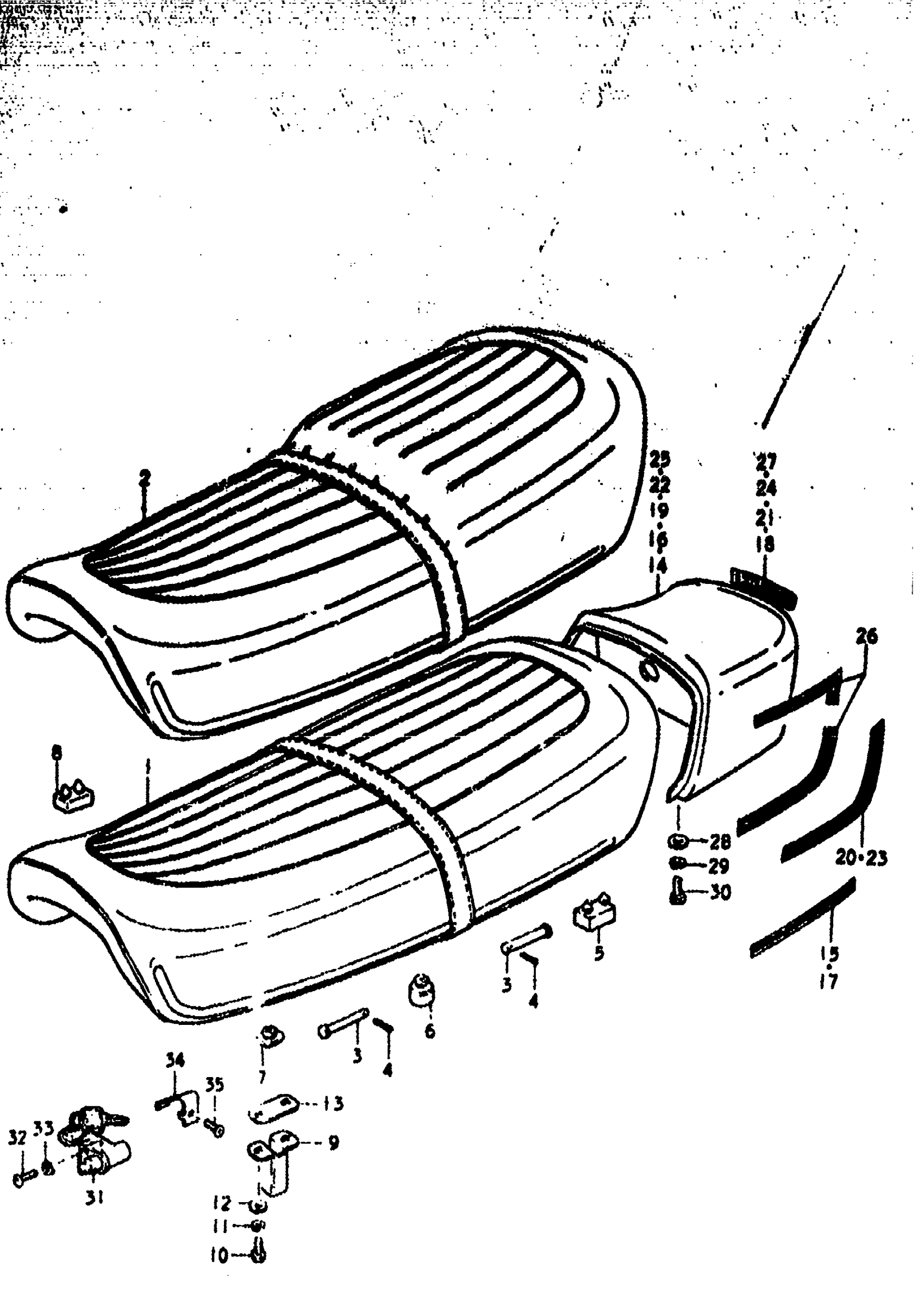

Suzuki GS550E (1979) SEAT (GS550N Diagram

#

Description
Price

1

SEAT | B This part replaces 45100-47000-865.

45100-47011-40P

Unavailable

1

SEAT | C This part replaces 45100-47002-865.

45100-47011-40P

Unavailable

2

SEAT | EC This part replaces 45100-47010-865.

45100-47011-40P

Unavailable

3

PIN | B,C,EC

09200-06018

$2.06

4

.COTTER PIN | B,C,EC This part replaces 04111-20158.

04111-2015A

$1.49

5

CUSHION | B,C,EC

09321-08006

$2.90

6

CUSHION | B,C,EC

09321-10002

$2.22

7

CUSHION | B,C,EC

09329-10001

$2.12

8

CUSHION | B,C,EC

09321-08010

$3.85

9

STRIKER, SEAT LOCK | B,C,EC

45213-47000

Unavailable

10

BOLT | B,C,EC This part replaces 01107-06128.

01500-06127

$1.97

11

LOCK WASHER | B,C,EC This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | B,C,EC This part replaces 08322-21068.

08322-01067

$2.13

13

PLATE | B,C,EC

45217-45001

Unavailable

14

NO DESCRIPTION AVAILABLE | B This part replaces 45510-45000-019.

45510-45001

Unavailable

15

TAPE, STRIPING | B

68167-47000-61U

Unavailable

16

NO DESCRIPTION AVAILABLE | B This part replaces 45510-45000-00X.

45510-45001

Unavailable

17

TAPE, STRIPING | B

68167-47000-61P

Unavailable

18

EMBLEM,SEAT TAI | B This part replaces 68166-45000.

68166-49201-538

Unavailable

19

NO DESCRIPTION AVAILABLE | C This part replaces 45510-45000-05T.

45510-45001

Unavailable

20

TAPE, STRIPING | C This part replaces 68100-47840-63P.

68100-47840-63D

Unavailable

21

EMBLEM | C; "SUZUKI" This part replaces 68166-45010-63Z.

68166-45010-998

Unavailable

22

NO DESCRIPTION AVAILABLE | C This part replaces 45510-45000-05U.

45510-45001

Unavailable

23

TAPE, STRIPING | C

68100-47840-63D

Unavailable

24

EMBLEM | C; "SUZUKI"

68166-45010-998

Unavailable

25

NO DESCRIPTION AVAILABLE | EC This part replaces 45510-45000-019.

45510-45001

Unavailable

26

TAPE, STRIPING | EC

68100-47850-63D

Unavailable

27

EMBLEM | EC; "SUZUKI"

68166-45010-998

Unavailable

28

WASHER | B,C,EC

09169-06016

$1.65

29

LOCK WASHER | B,C,EC This part replaces 08321-21068.

08321-01067

$2.13

30

BOLT, CANISTER | B,C,EC This part replaces 01107-06168.

01500-06167

$1.97

31

LOCK SET, SEAT | B,C,EC This part replaces 95700-45812.

95700-45813

Unavailable

32

SCREW | B,C,EC This part replaces 02112-05128.

02112-05127

$1.97

33

LOCK WASHER | B,C,EC This part replaces 08321-21058.

08321-0105A

$1.84

34

SPRING, HELMET HOLDER | B,C,EC

95722-45000

Unavailable

35

SCREW | B,C,EC This part replaces 02112-05088.

02112-05087

$1.49
