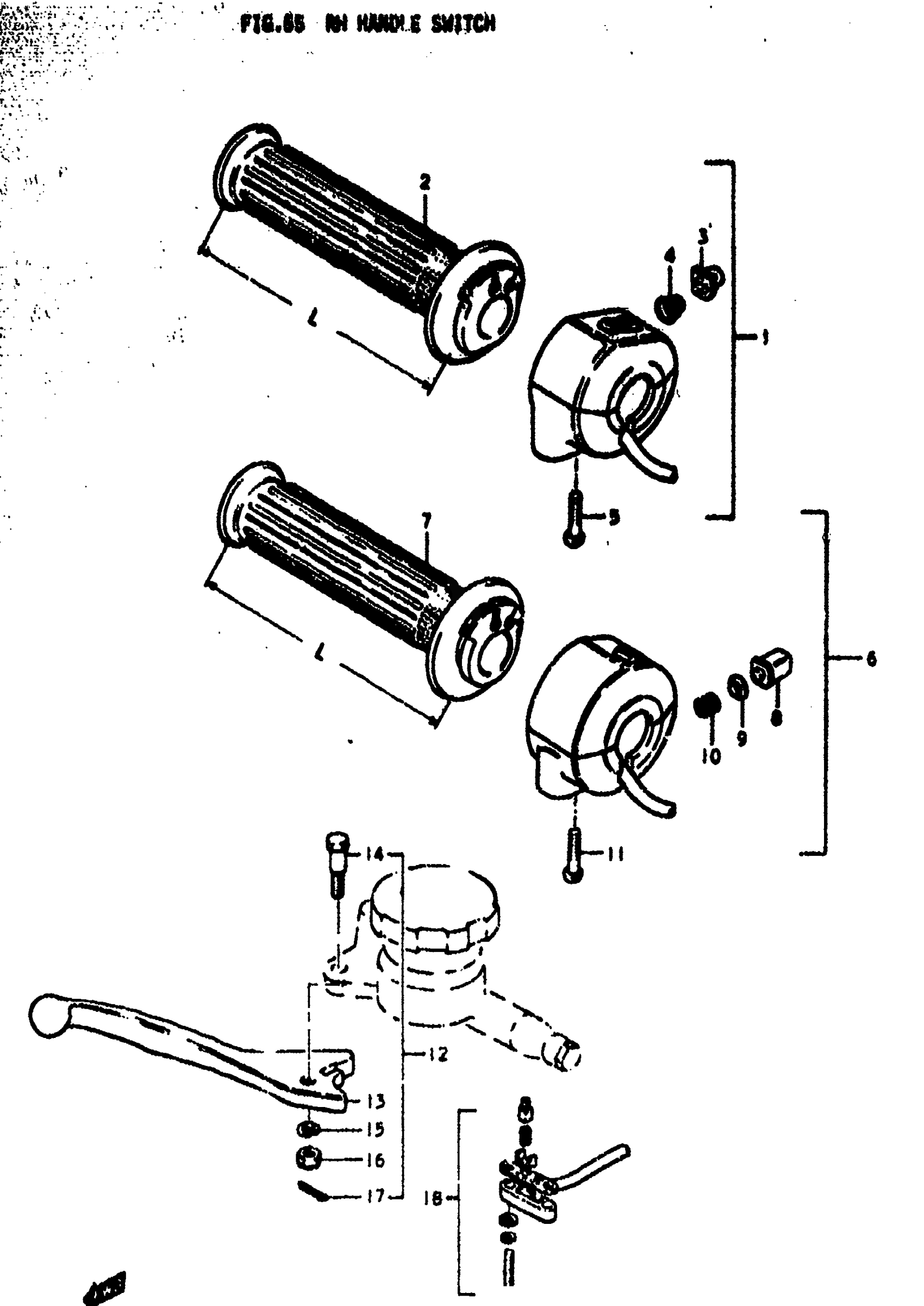

Suzuki GS550E (1979) RH HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | B; Includes Item(s) 2 - 5

57100-45600

Unavailable

2

THROTTLE GRIP | B; L:130, 00:34 This part replaces 57110-45600.

57110-34601

Unavailable

3

BUTTON, STARTING | B

57370-01311

Unavailable

4

SPRING | B

57382-01311

Unavailable

5

SCREW | B This part replaces 02112-05258.

02112-05257

$1.49

6

CASE ASSY,THROT | C&EC This part replaces 57100-45000.

57100-45040

Unavailable

6

CASE ASSY,THROT | N&EN; Includes Item(s) 7 - 11 This part replaces 57100-45010.

57100-45040

Unavailable

7

GRIP, THROTTLE | C&EC; L:120, 0D:33

57110-45000

$41.63

7

GRIP, THROTTLE | N&EN; L:130, 0D:33 This part replaces 57110-44010.

57110-49510

Unavailable

8

BUTTON, STARTING | C&EC,N&EN

57371-45000

$4.52

9

CONTACT | C&EC,N&EN

57372-45000

$4.45

10

SPRING | C&EC,N&EN

57382-45000

$3.37

11

SCREW | C&EC,N&EN This part replaces 02112-05258.

02112-05257

$1.49

12

LEVER ASSY, BRAKE | B

57300-45010

Unavailable

12

LEVER, BRAKE | C&EC This part replaces 57300-39100.

57420-11300

Unavailable

12

LEVER, BRAKE | N&EN; Includes Item(s) 13 - 17 This part replaces 57300-39101.

57420-11300

Unavailable

13

LEVER, BRAKE | B

57420-45010

Unavailable

13

LEVER, BRAKE | C&EC,N&EN This part replaces 57420-39100.

57420-11300

Unavailable

14

BOLT | B,C&EC,N&EN This part replaces 57431-18620.

57431-18621

$8.28

15

LOCK WASHER | B,C&EC This part replaces 08321-21068.

08321-01067

$2.13

16

NUT | B,C&EC

57433-11010

$5.64

16

.NUT | N&EN This part replaces 08319-21068.

08319-2106A

$1.91

17

PIN | B,C&EC This part replaces 04111-16158.

04111-1620A

$1.49

18

SWITCH ASSY, BRAKE LAMP | C&EC,N&EN

57460-33700

$43.37
