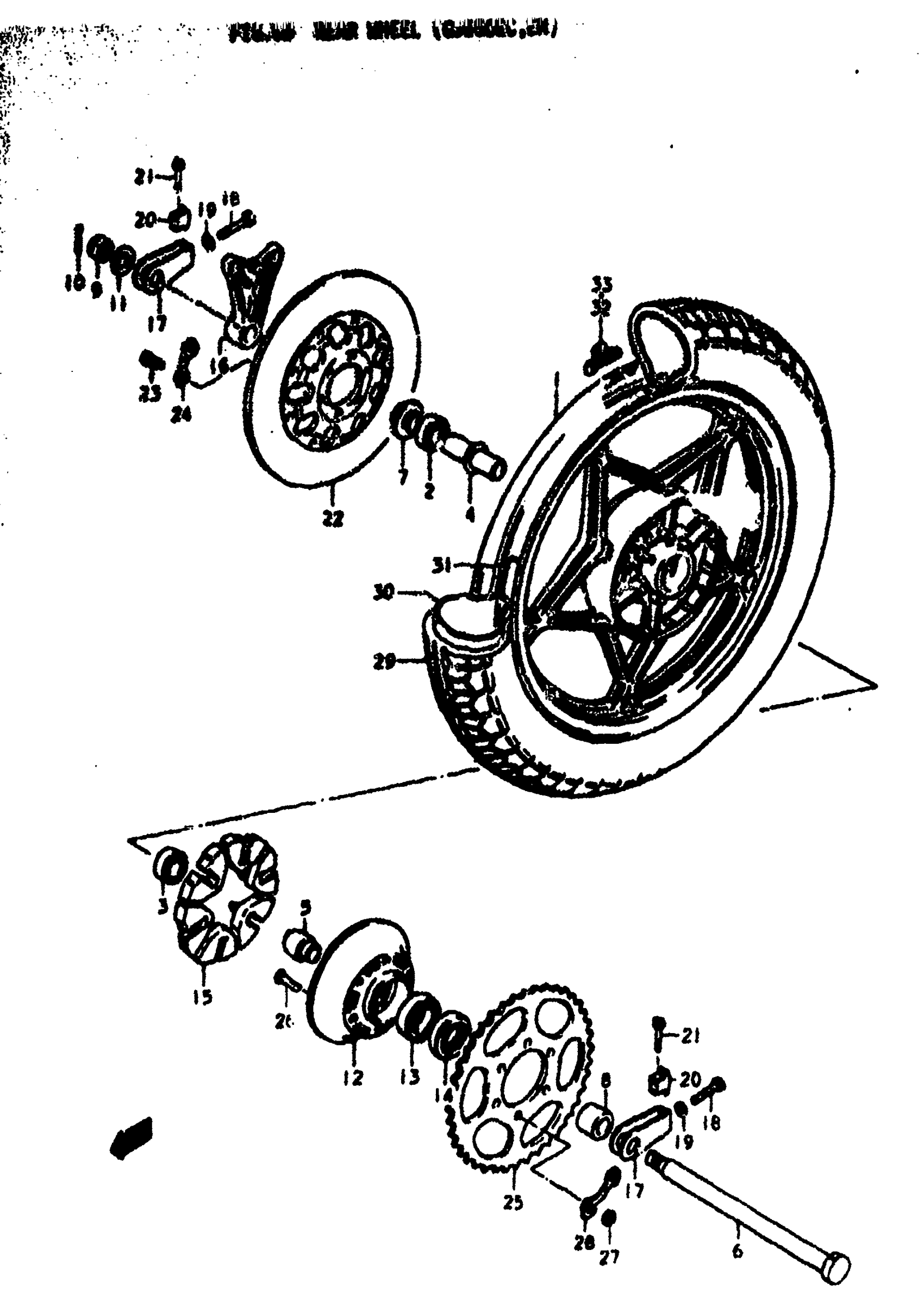

Suzuki GS550E (1979) REAR WHEEL (GS550EC Diagram

#

Description
Price

1

WHEEL, REAR | EC; 2.15x18 This part replaces 64111-47601.

64111-49300-12U

Unavailable

1

WHEEL, REAR | EN This part replaces 64111-47602.

64111-49300-12U

Unavailable

2

BEARING, RH | EC,EN

08133-63037

$36.30

3

BEARING, LH | EC,EN

08153-63037

Unavailable

4

SPACER, BEARING | EC,EN

64731-45000

Unavailable

5

HOLDER, BEARING | EC,EN

64733-47000

Unavailable

6

AXLE, REAR | EC,EN

64711-47000

Unavailable

7

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 64740-47001.

64740-47002

Unavailable

8

SPACER, LH | EC,EN

09180-17048

Unavailable

9

NUT | EC,EN

09141-16001

Unavailable

10

PIN, REAR AXLE | EC,EN This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (17X30X3.2) | EC,EN This part replaces 09160-17013.

09160-17050

$2.45

12

DRUM, SPROCKET | EC,EN This part replaces 64611-31000.

64611-31003

Unavailable

13

BEARING, DRUM | EC,EN This part replaces 08113-63057.

09262-25073

$25.92

14

OIL SEAL | EC,EN

09285-33001

$13.27

15

SHOCK ABSORBER, HUB | EC,EN This part replaces 64651-31000.

64651-31001

$11.19

16

BRACKET, REAR CALIPERS | EC,EN This part replaces 69721-47000.

69721-47001

Unavailable

17

ADJUSTER, CHAIN | EC,EN This part replaces 61410-33000.

61410-47200

Unavailable

18

BOLT (8X50) | EC,EN This part replaces 09104-08006.

09104-08034

$3.04

19

NUT | EC,EN This part replaces 08310-12088.

08310-00087

$2.13

20

SUPPORTER,CHAIN | EC,EN This part replaces 61433-31000.

61433-3100V

Unavailable

21

BOLT, LH | EC,EN This part replaces 01517-08508.

01550-08507

$3.55

22

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59210-18401.

59210-18402

Unavailable

23

BOLT | EC,EN

09100-08094

$2.71

24

WASHER | EC,EN

09169-08016

$2.41

25

SPROCKET, REAR | EC,EN; NT:50

64511-47600

Unavailable

26

BOLT | EC This part replaces 09119-10010.

09105-10002

Unavailable

26

BOLT | EN This part replaces 09119-10002.

09105-10001

$2.87

27

NUT | EC This part replaces 08310-22108.

08310-00107

$2.19

28

WASHER | EC,EN

09169-10007

Unavailable

29

NO DESCRIPTION AVAILABLE | EC; 3.75H18 This part replaces 65100-47610.

65100-47600

Unavailable

29

NO DESCRIPTION AVAILABLE | EC; 3.75H18 This part replaces 65100-47035.

65100-47600

Unavailable

30

TUBE, INNER | EC,EN; 3.75-1E This part replaces 65200-15011.

65200-49015

Unavailable

31

IN TUBE PROTECT | EC,EN; 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

32

BALANCER, S | (0~3)

55411-47001

Unavailable

33

BALANCER, L | (0~3)

55412-47001

Unavailable
