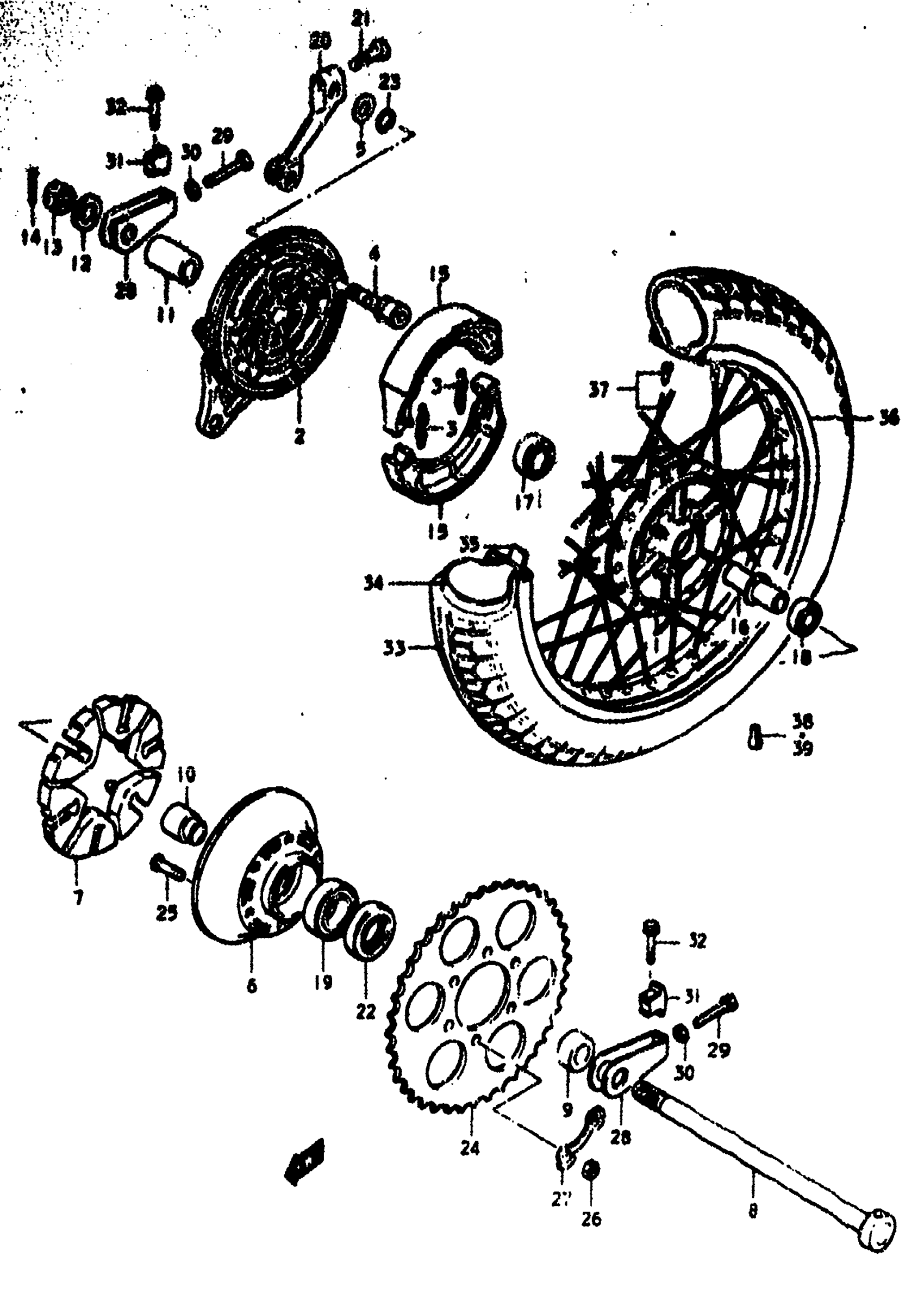

Suzuki GS550E (1979) REAR WHEEL (GS550B Diagram

#

Description
Price

1

HUB, REAR WHEEL | B,C,N

64110-11001

Unavailable

2

PANEL | B

64210-34100

Unavailable

2

PANEL | C,N

64210-11002

Unavailable

3

SPRING | B,C,N

55420-30000

$4.48

4

CAM, BRAKE | B,C,N This part replaces 54440-11003.

64440-38A00

Unavailable

5

WASHER | B,C,N This part replaces 09160-15001.

09160-15048

$2.56

6

DRUM, SPROCKET MOUNTING | B,C,N

64611-34000

Unavailable

7

SHOCK ABSURBER, REAR DRUM | B,C,N This part replaces 64651-11001.

64651-11002

Unavailable

8

AXLE, REAR | B,C,N

64711-47000

Unavailable

9

SPACER, RH | B,C,N

09180-17039

Unavailable

10

RETAINER, SPROCKET DRUM | B,C,N

64733-34000

Unavailable

11

SPACER, LH | B,C,N

09180-17042

Unavailable

12

WASHER (17X30X3.2) | B,C,N; 17x30x3.2 This part replaces 09160-17013.

09160-17050

$2.45

13

NUT | B,C,N

09141-16001

Unavailable

14

PIN, REAR AXLE | B,C,N This part replaces 04111-40308.

04111-4030A

$1.49

15

SHOE SET,BRAKE | B,C,N This part replaces 64410-34100.

64400-34830

$79.88

16

SPACER, BEARING | B,C,N

64730-11000

Unavailable

17

BEARING | B,C,N

08143-63037

$22.58

18

BEARING | B,C,N

08143-62037

$18.47

19

BEARING | B,C,N

08113-62057

$25.60

20

LEVER, BRAKE CAM | B,C,N This part replaces 64451-44000.

64451-44001

Unavailable

21

BOLT | B,C,N This part replaces 01107-06258.

01500-06257

$1.97

22

SEAL,OIL(30.5X5 | B,C,N This part replaces 09283-30001.

09285-30003

$23.97

23

O RING (ID:14.8,D:2.40) | B,C,N This part replaces 09280-15001.

09280-15003

$1.76

24

SPROCKET, REAR | B,C,N; NT:50

64511-47001

Unavailable

25

BOLT | B,C,N This part replaces 09119-10010.

09105-10002

Unavailable

26

NUT | B,C,N This part replaces 08310-12108.

08310-00107

$2.19

27

LOCK WASHER | B,C,N

09169-10006

Unavailable

28

ADJUSTER, CHAIN | B,C,N This part replaces 61410-33000.

61410-47200

Unavailable

29

BOLT (8X50) | B,C,N This part replaces 09104-08006.

09104-08034

$3.04

30

NUT | B,C,N This part replaces 08310-12088.

08310-00087

$2.13

31

SUPPORTER,CHAIN | B,C,N This part replaces 61433-31000.

61433-3100V

Unavailable

32

BOLT, LH | B,C,N This part replaces 01517-08508.

01550-08507

$3.55

33

NO DESCRIPTION AVAILABLE | B,C; 3.75H18 This part replaces 65100-47610.

65100-47600

Unavailable

33

NO DESCRIPTION AVAILABLE | N; 3.75H18 This part replaces 65100-47035.

65100-47600

Unavailable

34

TUBE, INNER | B,C,N; 3.75-18 This part replaces 65200-15011.

65200-49015

Unavailable

35

IN TUBE PROTECT | B,C,N; 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

36

RIM | B,C,N; 2.15x18

65311-15021

Unavailable

37

NO DESCRIPTION AVAILABLE | B,C,N This part replaces 65300-31830.

65300-31831

Unavailable

38

BALANCER WHEEL (15G) | B,C,N; (0~3) 20G This part replaces 55411-11000.

55411-26G00

$7.73

39

BALANCER WHEEL (30G) | B,C,N; (0~3) 30G This part replaces 55412-11000.

55413-41F00

$7.50
