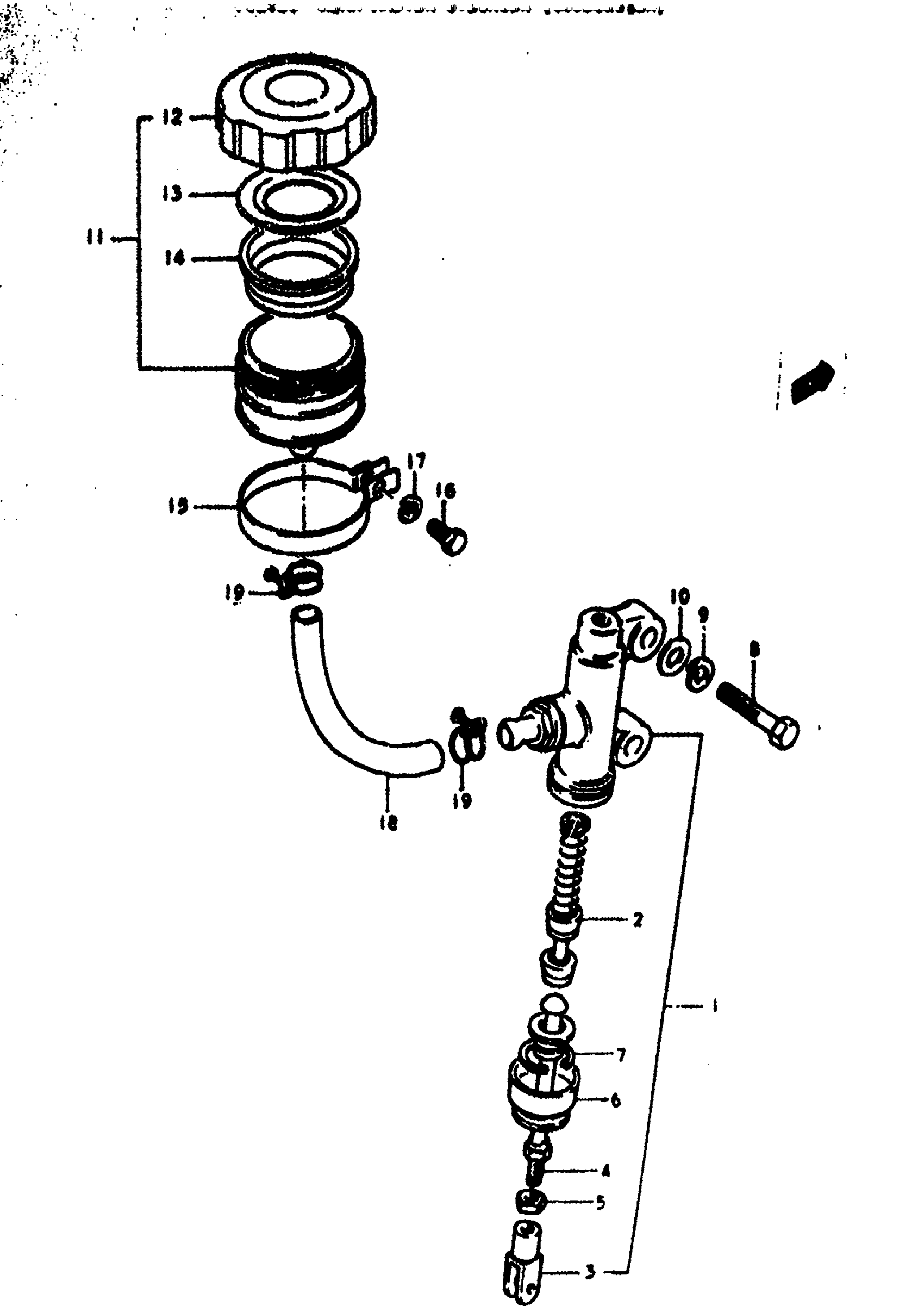

Suzuki GS550E (1979) REAR MASTER CYLINDER (GS550EC Diagram

#

Description
Price

1

CYLINDER ASSY,R | EC,EN; Includes Item(s) 2 - 7 This part replaces 69600-47000.

69600-47011

Unavailable

2

PISTON & CUP SET | EC,EN This part replaces 69600-45810.

69600-45820

$45.83

3

YOKE | EC,EN This part replaces 69692-45001.

69692-34300

Unavailable

4

ROD, PUSH | EC,EN This part replaces 69670-45000.

69670-45001

Unavailable

5

NUT | EC,EN This part replaces 08310-12088.

08310-00087

$2.13

6

BOOT | EC,EN This part replaces 69691-45000.

69691-45001

$5.70

7

CIRCLIP | EC,EN

51162-70040

$3.25

8

BOLT, REAR | EC,EN This part replaces 01107-06308.

01500-06307

$2.48

9

.LOCK WASHER | EC,EN This part replaces 08321-21088.

08321-01087

$2.13

10

WASHER | EC,EN This part replaces 08322-21088.

08322-01087

$2.13

11

TANK ASSY, RESE | EC,EN; Includes Item(s) 12 - 14 This part replaces 69740-47010.

69740-470V0

Unavailable

12

CAP | EC,EN This part replaces 59669-33602.

59669-07D00

$31.72

13

PLATE, DIAPHRAGM | EC,EN

59668-18441

$4.52

14

DIAPHRAGM | EC,EN

59667-18441

$10.28

15

CLAMP | EC,EN This part replaces 09402-51601.

09402-51602

Unavailable

16

BOLT, CANISTER | EC,EN This part replaces 01107-06168.

01500-06167

$1.97

17

LOCK WASHER | EC,EN This part replaces 08321-21068.

08321-01067

$2.13

18

HOSE,BRAKE RESE | EC,EN; L:125 This part replaces 69731-47000.

51241-85X50

$43.27

19

CLAMP | EC,EN This part replaces 09400-16301.

09400-16304

$3.10
