1979 Suzuki GS550E Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

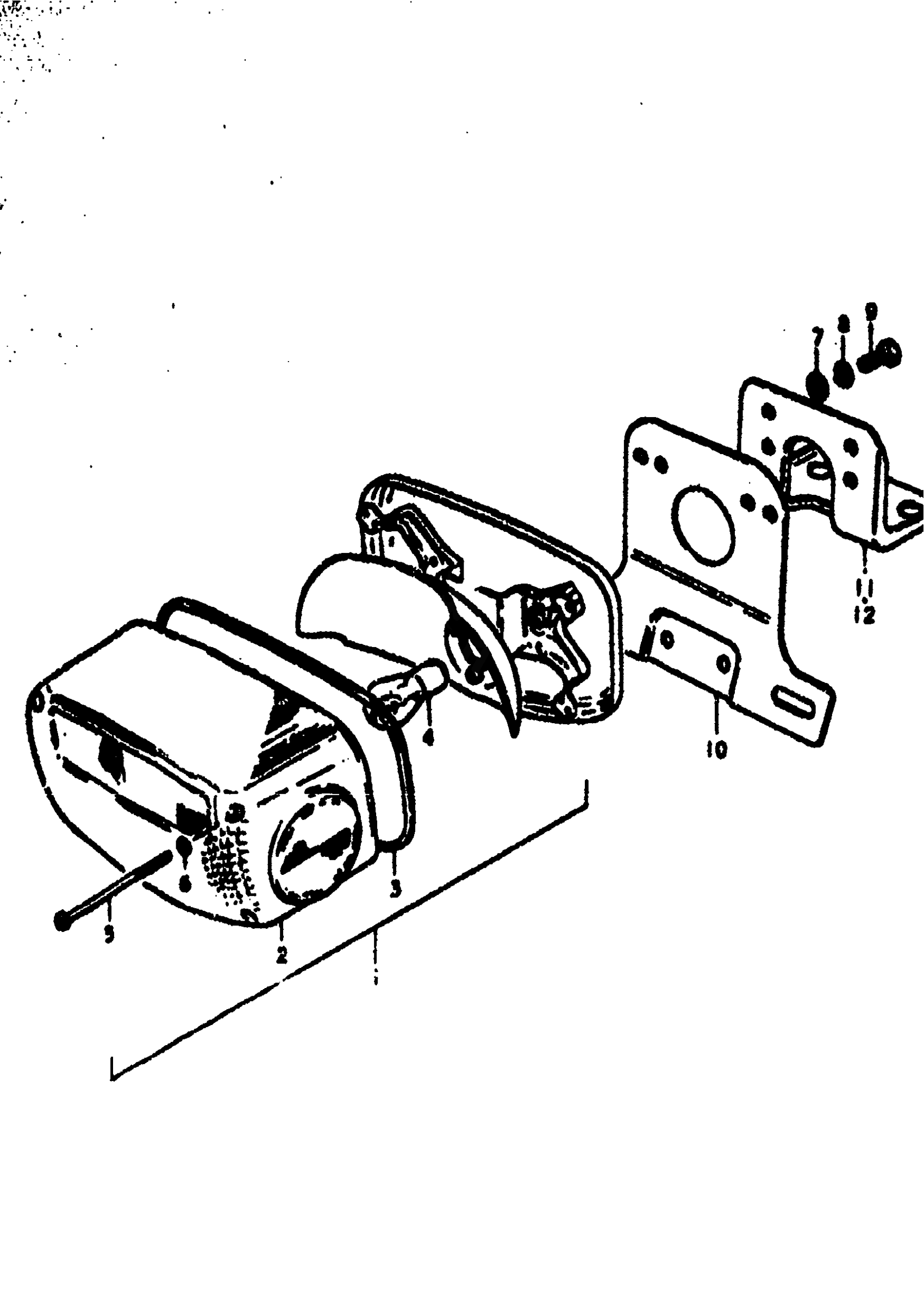

1979 Suzuki GS550E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | B This part replaces 35710-45010.

35710-45011

1
Out of stock

1

LAMP ASSY, REAR COMBINATION | C&EC,N&EN; Includes Item(s) 2 - 6

35710-45011

1
Out of stock

2

LENS,RR COMBI L | B This part replaces 35712-45010.

35712-45013

1
Out of stock

2

LENS,RR COMBI L | C&EC,N&EN This part replaces 35712-45011.

35712-45013

1
Out of stock

3

GASKET | B,C&EC,N&EN

35713-45010

1
Out of stock

4

BULB | B,C&EC,N&EN; 12V, 23/8W

09471-12035

1
Out of stock

5

SCREW 4X55 | B,C&EC,N&EN This part replaces 02111-04558.

02112-04558

4
Out of stock

6

GASKET | B,C&EC,N&EN

35627-43010

4

$2.65

In stock

7

.WASHER | B,C&EC,N&EN This part replaces 08322-21065.

08322-0106B

2
Out of stock

9

BOLT | B,C&EC,N&EN This part replaces 01107-06128.

01500-06127

2
Out of stock

10

NO DESCRIPTION AVAILABLE | B This part replaces 35927-45001.

35927-45003

1
Out of stock

10

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 35927-45002.

35927-45003

1
Out of stock

11

BRACKET, LICENSE PLATE | B,C&EC This part replaces 35928-45000.

35928-45001

1
Out of stock

12

BRACKET, LICENCE PLATE | N&EN

35928-45001

1
Out of stock
