1979 Suzuki GS550E LH Handle Switch Diagram

← All diagrams

Find the part on the LH Handle Switch diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

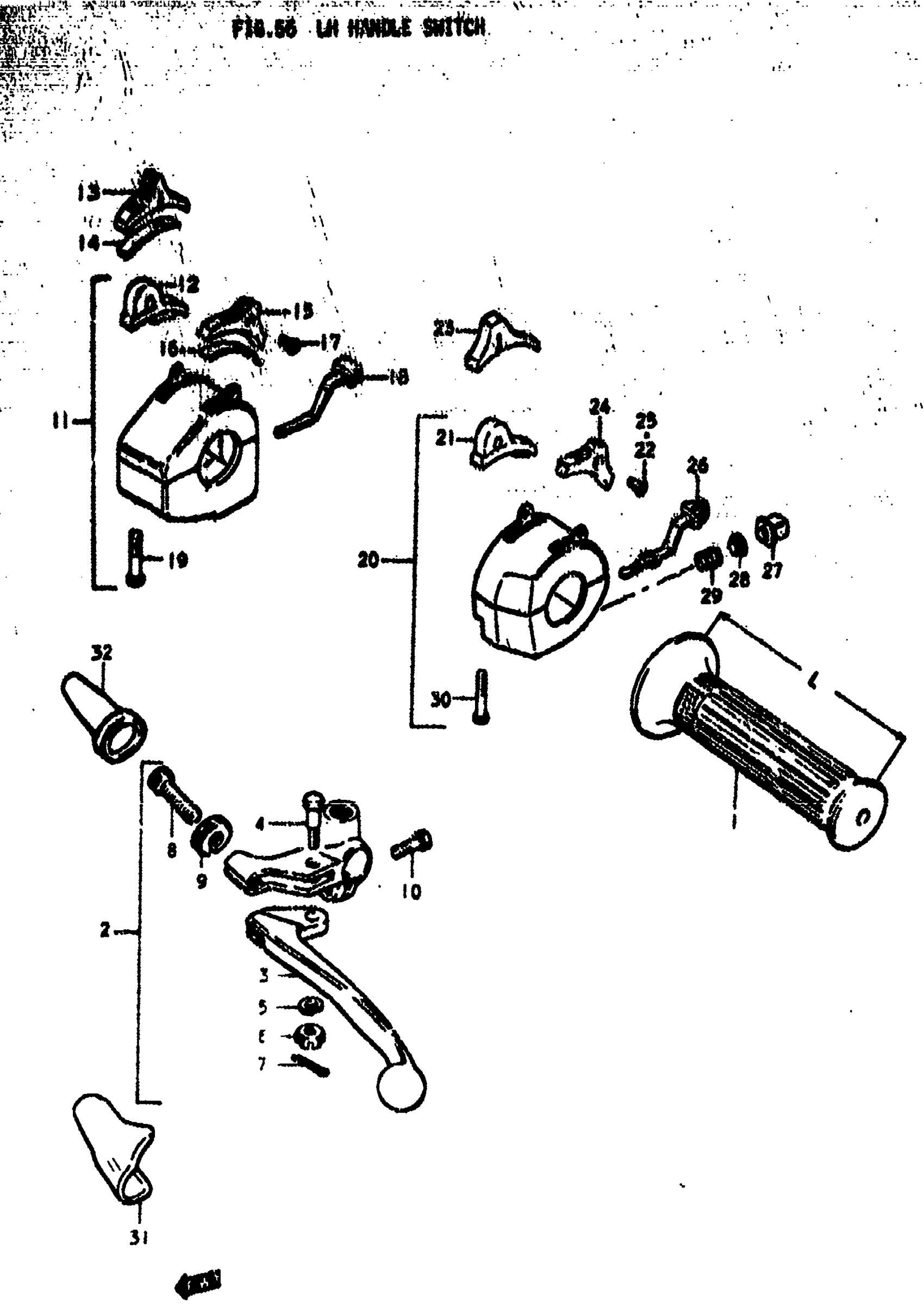

1979 Suzuki GS550E LH Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH | B; L:130, OD:34 This part replaces 57211-45010.

57211-49510

1
Out of stock

1

GRIP,L | C&EC; L:120, OD:33 This part replaces 57211-45020.

57211-45021

1
Out of stock

1

GRIP | N&EN; L:130, OD:33 This part replaces 57211-45030.

57211-24201

1
Out of stock

2

LEVER ASSY, CLUTCH | B

57500-45010

1
Out of stock

2

LEVER ASSY,CLUT | C&EC This part replaces 57500-45011.

57500-45021

1
Out of stock

2

LEVER ASSY, CLUTCH | N&EN; Includes Item(s) 3 - 10

57500-44000

1
Out of stock

3

LEVER, CLUTCH | B

57620-45010

1
Out of stock

3

LEVER, CLUTCH | C&EC This part replaces 57620-29400.

57620-45010

1
Out of stock

3

LEVER, CLUTCH | N&EN

57620-44000

1
Out of stock

4

BOLT | B,C&EC,N&EN This part replaces 57431-11010.

57431-11013

1
Out of stock

6

NUT | B,C&EC

57433-11010

1
Out of stock

6

.NUT | N&EN This part replaces 08319-21068.

08319-2106A

1
Out of stock

7

PIN | B,C&EC This part replaces 04111-16158.

04111-1620A

1
Out of stock

8

ADJUSTER, CABLE | B,C&EC,E&EN

57441-11010

1
Out of stock

9

NUT | B,C&EC,E&EN

57442-11010

1
Out of stock

10

BOLT | B,C&EC,E&EN This part replaces 01107-06208.

01500-06207

1
Out of stock

11

SWITCH ASSY, HANDLE LH * | B; Includes Item(s) 12 - 19

37400-45600

1
Out of stock

12

KNOB, STOPPER | B

57718-36630

1
Out of stock

13

KNOB,HANDLE SWI | B; OPT This part replaces 57712-33011.

57712-33012

1
Out of stock

14

SPRING | B; OPT

57714-33010

1
Out of stock

15

KNOB, LIGHTING | B This part replaces 57713-33010.

57713-33011

1
Out of stock

16

SPRING | B

57714-33010

1
Out of stock

17

SCREW | B This part replaces 03121-03088.

03121-03068

2
Out of stock

18

KNOB,TURN SIGNAL LAMP SWITCH | B

57650-33013

1
Out of stock

19

SCREW,5X22 | B This part replaces 09125-05105.

09125-05105-XC0

2
Out of stock

20

SWITCH ASSY, HANDLE LH | C&EC This part replaces 37400-45601.

37400-45603

1
Out of stock

20

SWITCH ASSY, HANDLE LH | N&EN; Includes Item(s) 21 - 30 This part replaces 37400-45602.

37400-45603

1
Out of stock

21

KNOB, STOPPER | C&EC This part replaces 37414-45601.

37414-45602

1
Out of stock

21

KNOB, STOPPER | N&EN

37414-45602

1
Out of stock

22

SCREW | C&EC,N&EN This part replaces 02122-03068.

02122-03067

1
Out of stock

23

KNOB, LIGHTING (OPT) | C&EC,N&EN; OPT This part replaces 37411-45011.

37411-45012

1
Out of stock

24

KNOB, DIMMER SWITCH | C&EC This part replaces 37421-45011.

37421-45012

1
Out of stock

24

KNOB, sIMMER SWITCH | N&EN

37421-45012

1
Out of stock

25

SCREW | C&EC,E&EN This part replaces 02122-03068.

02122-03067

1
Out of stock

26

KNOB, TURN SIGNAL LAMP SWITCH | C&EC,N&EN

37513-45011

1
Out of stock

27

BUTTON, HORN | C&EC,N&EN

57371-45000

1
Out of stock

28

CONTACT | N&EN

57372-45000

1
Out of stock

29

SPRING | C&EC,N&EN

57382-45000

1
Out of stock

30

SCREW | C&EC,N&EN This part replaces 02112-05258.

02112-05257

2
Out of stock

31

COVER, CLUTCH LEVER | B,C&EC,N&EN

57661-31000

1
Out of stock

32

BOOT, CLUTCH CABLE | B,C&EC,N&EN This part replaces 58273-31000.

58273-31001

1
Out of stock
