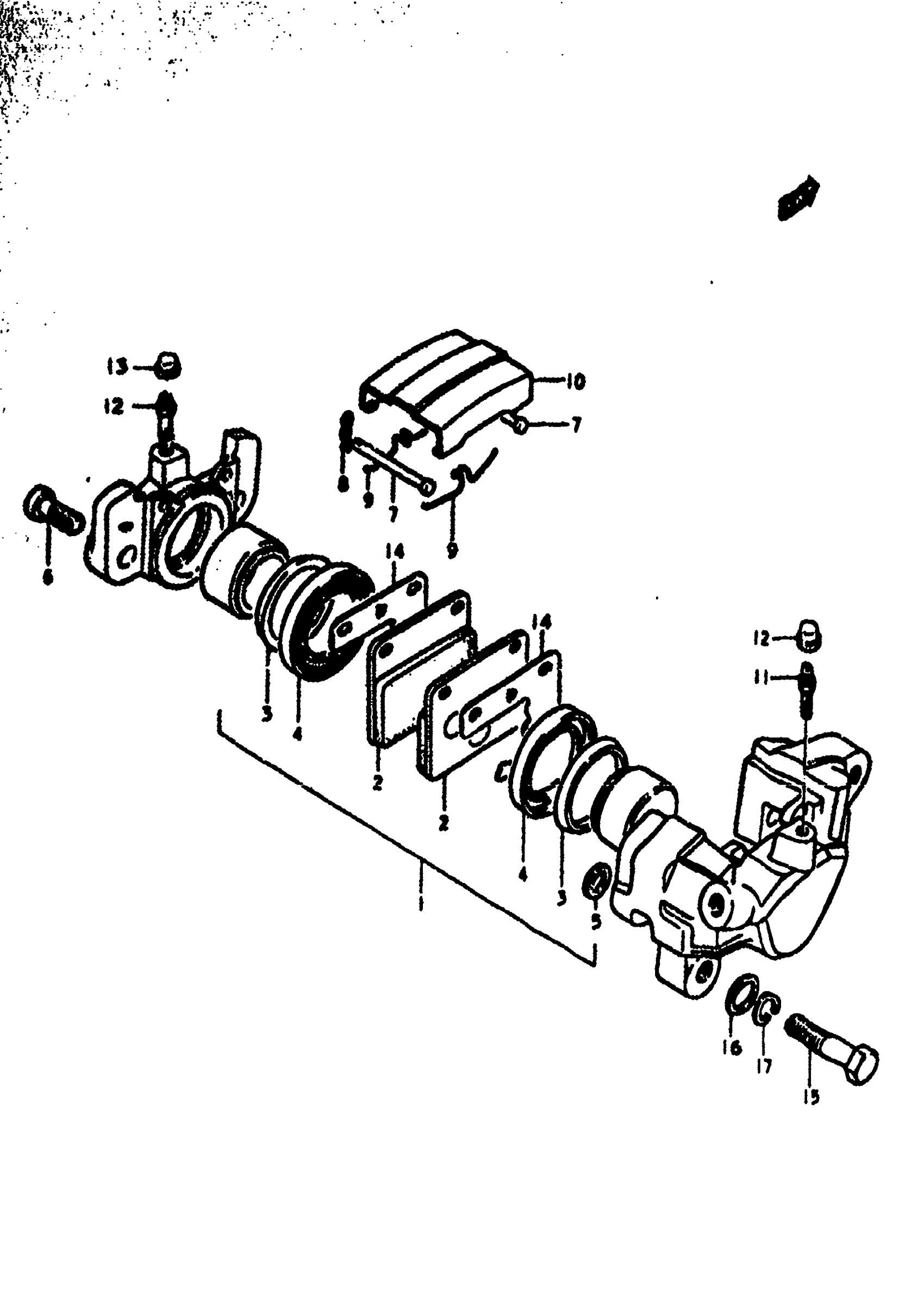

Suzuki GS550E (1979) REAR CALIPERS (GS550EC Diagram

#

Description
Price

0

CALIPER ASSY, R | EC,EN; Includes Item(s) 1 - 14 This part replaces 69100-45001.

69100-08C00-999

Unavailable

1

PISTON SET | EC,EN This part replaces 69100-45820.

69100-08821

$98.95

2

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 69130-45001.

69101-45860-XNA

Unavailable

3

SEAL,PISTON | EC,EN This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON | EC,EN

69108-45000

$8.50

5

SEAL, PISTON | EC,EN

69107-45000

$8.07

6

BOLT, HOUSING | EC,EN

69145-45000

Unavailable

7

PIN | EC,EN

69141-45000

$5.17

8

.CLIP, PAD PIN | EC,EN

69142-45000

$4.34

9

SPRING | EC,EN

69143-45001

$6.73

10

DUST COVER | EC,EN

69151-45000

$14.31

11

BLEEDER | EC,EN

59121-18410

$8.73

12

BLEEDER | EC,EN

69122-45000

Unavailable

13

CAP, BLEEDER | EC,EN This part replaces 59122-18410.

55156-66310

$5.17

14

SHIM | EC,EN

69152-45001

$7.54

15

BOLT, LOWER | EC,EN This part replaces 09100-10107.

09117-10017

$3.27

16

WASHER | EC,EN This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER | EC,EN This part replaces 08321-21108.

08321-01107

$1.84
